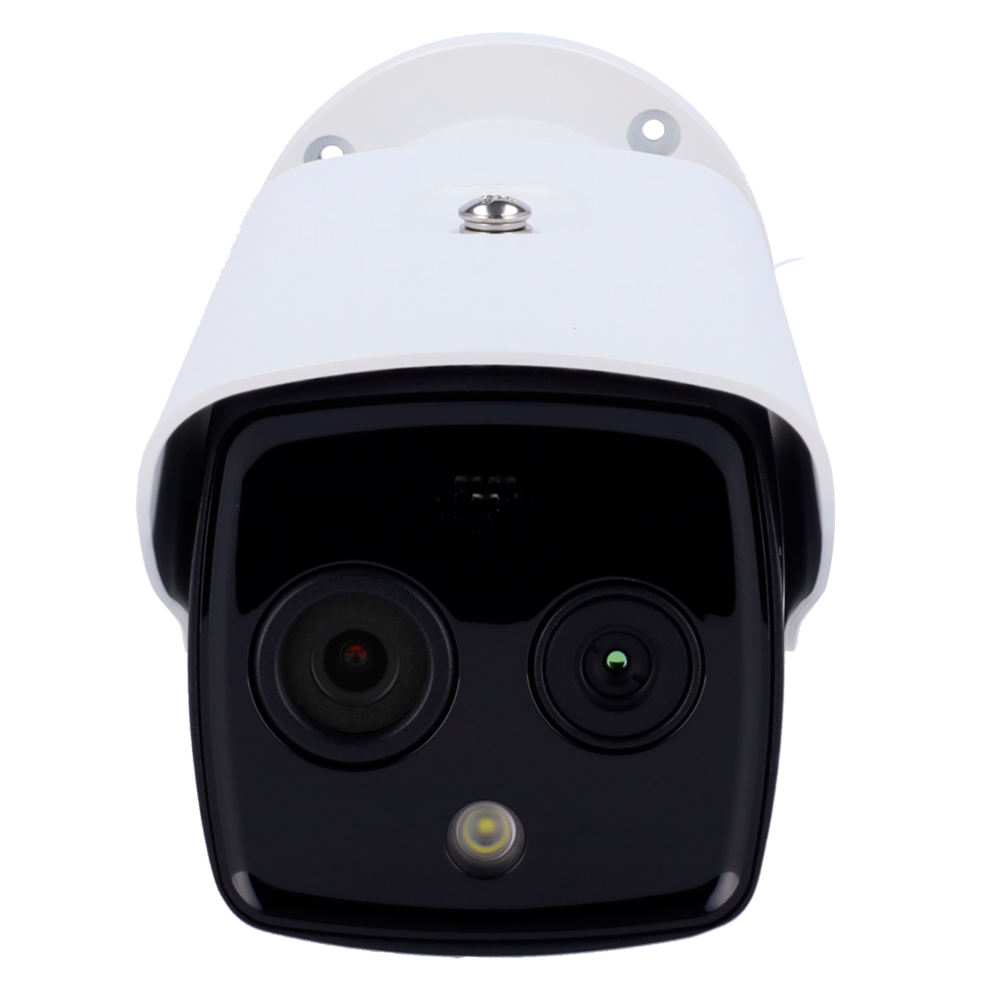

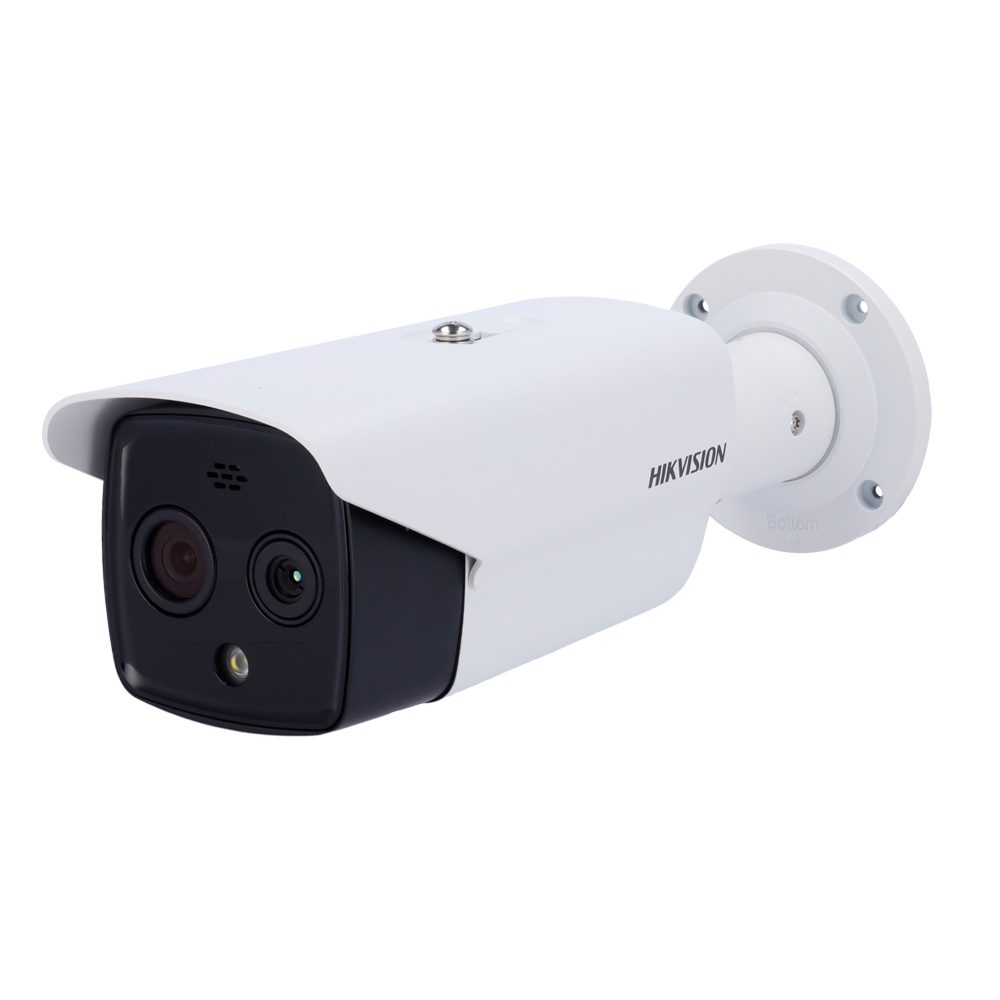

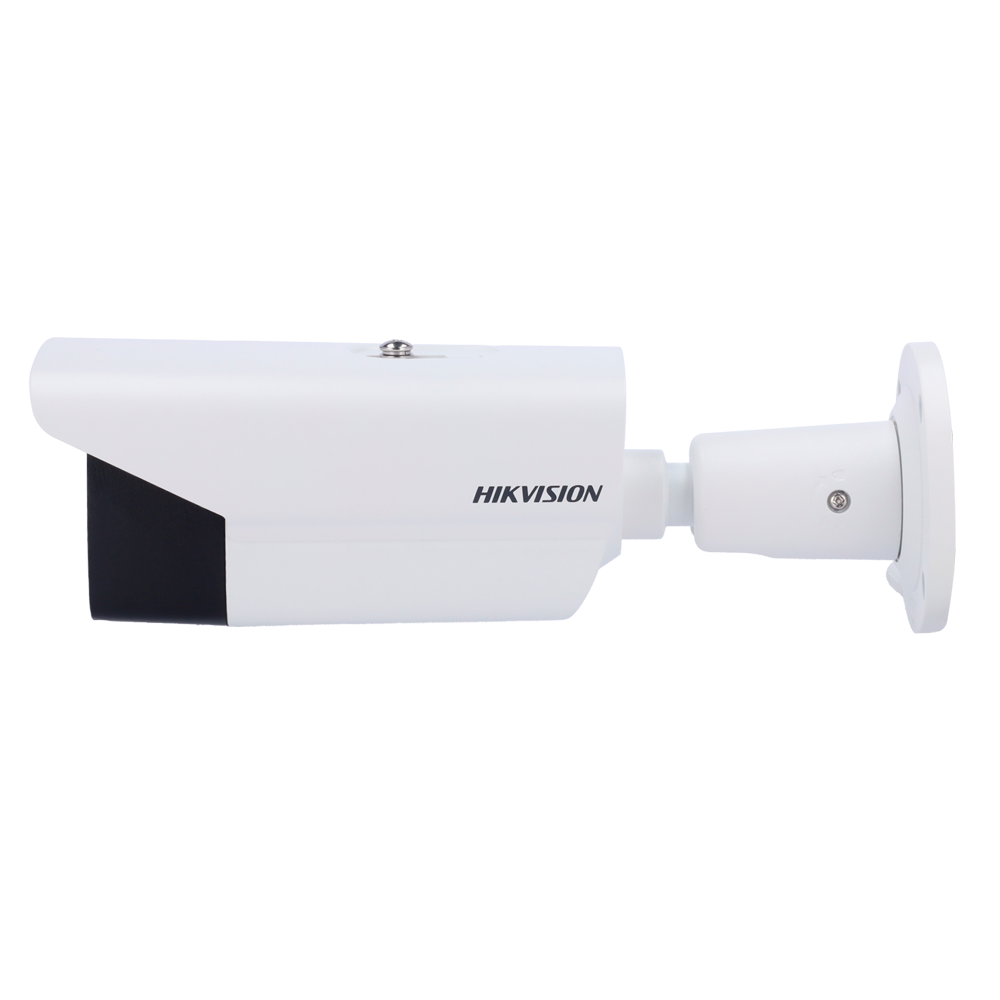

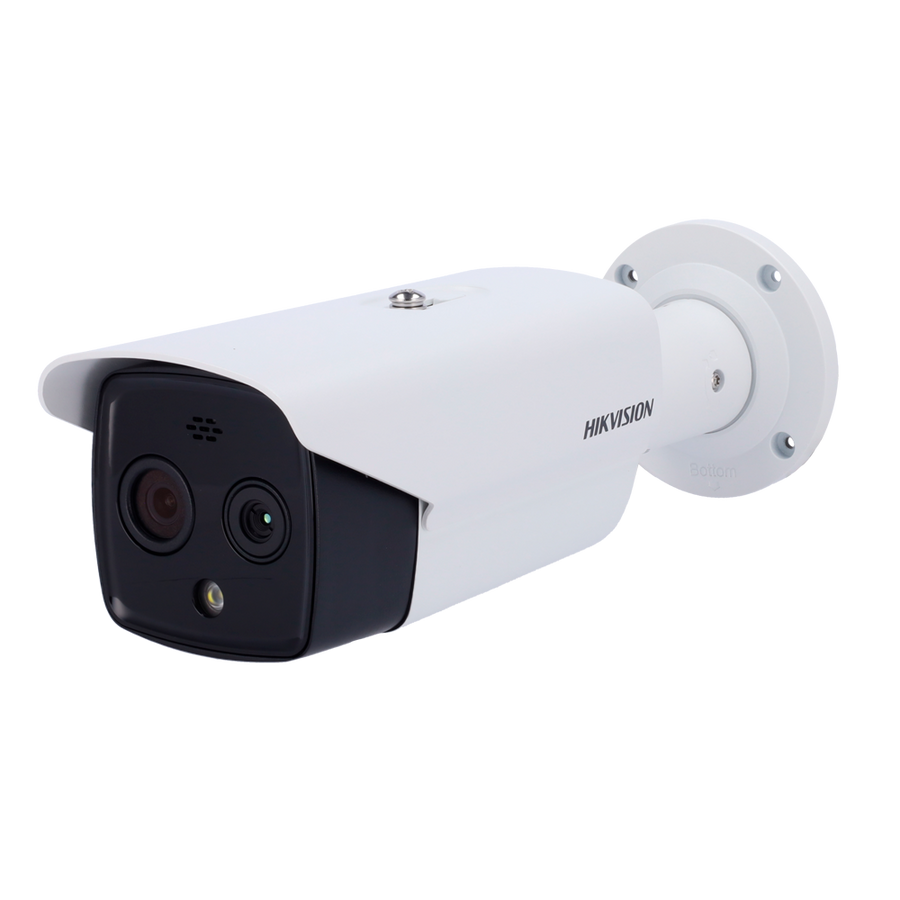

HIKVISION HEATPRO BULLET 6.2MM DS-2TD2617-6/QA
Dual-Spectrum Thermal & Optical Bullet for Targeted Security
The HIKVISION HEATPRO BULLET 6.2MM DS-2TD2617-6/QA combines sensitive thermal detection and high-definition optical imaging to deliver reliable surveillance where precision matters. This model is ideal for mid-range monitoring in South African conditions — from factory access zones to perimeter gates, offering both heat-signature detection and clear visual verification.
Designed for Proactive Detection
This camera uses a 160 × 120 thermal sensor (17 µm pixel pitch) paired with a 6.2 mm thermal lens and a complementary optical channel to provide accurate threat identification and scene monitoring. Built-in analytics include temperature exception alerts and human/vehicle classification, helping reduce false alarms and enabling timely response.
-
Dual-spectrum imaging: Thermal channel for heat detection + optical channel for visual confirmation.
-
Thermal module: 160 × 120 VOx detector, 17 µm pixel pitch, NETD < 40 mK for sensitive heat reading.
-
Thermal lens: 6.2 mm focal length, field of view approximately 25° × 18.7°.
-
Temperature measurement: Range from –20 °C to +150 °C with ±8 °C accuracy for key early alerts.
-
Smart photos–thermal fusion: Get both heat signatures and optical verification in the same field of view.
-
Outdoor-capable build: Durable housing, suited for South African exterior installations.
Key Specifications
-
Thermal detector resolution: 160 × 120 pixels
-
Pixel pitch: 17 µm
-
Spectral range: 8 µm – 14 µm
-
Thermal lens: 6.2 mm
-
Field of view (thermal): ~25° (H) × 18.7° (V)
-
Minimum focus distance (thermal): ~0.6 m
-
Optical sensor resolution: 2688 × 1520 (4 MP)
-
Optical lens approximate: 8 mm focal length used for visual module
-
Minimum illumination (optical): ~0.0176 Lux (colour) / 0.0035 Lux (B/W)
-
Temperature range: –20 °C to +150 °C
-
Accuracy: ±8 °C (temperature exception alarm)
Applications & Use Cases
Ideal for mid-range perimeter zones, industrial out-buildings, estate driveways and warehouse access points where both heat detection and image capture matter. This model gives you early warning of heat events plus visual verification when an object enters the scene.
Installation Tips
- Mount at an optimal height between 2.5 m and 4 m for the best mix of field of view and identification range.
- Avoid reflective surfaces in the thermal path (glass, polished metal) to maintain correct readings.
- Use with your NVR or ONVIF-compliant system to enable full analytics and event management.
Upgrade to Smart Thermal Monitoring
Choose the HIKVISION HEATPRO BULLET 6.2MM DS-2TD2617-6/QA for a quality dual-spectrum solution that balances thermal sensitivity and visual clarity — purpose-built for South African security requirements. ✅ Available now at NeonSales.co.za — upgrade your system today.
