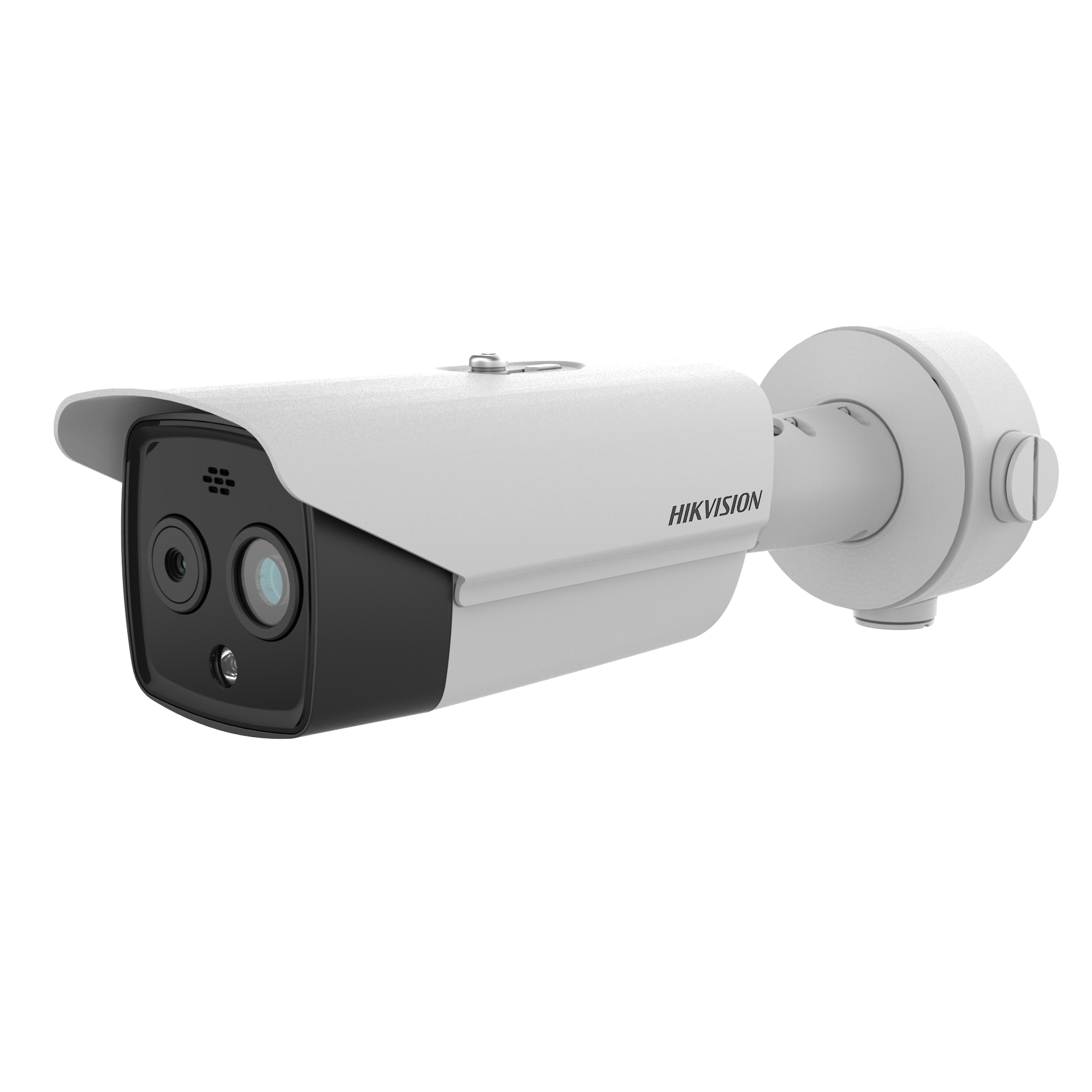

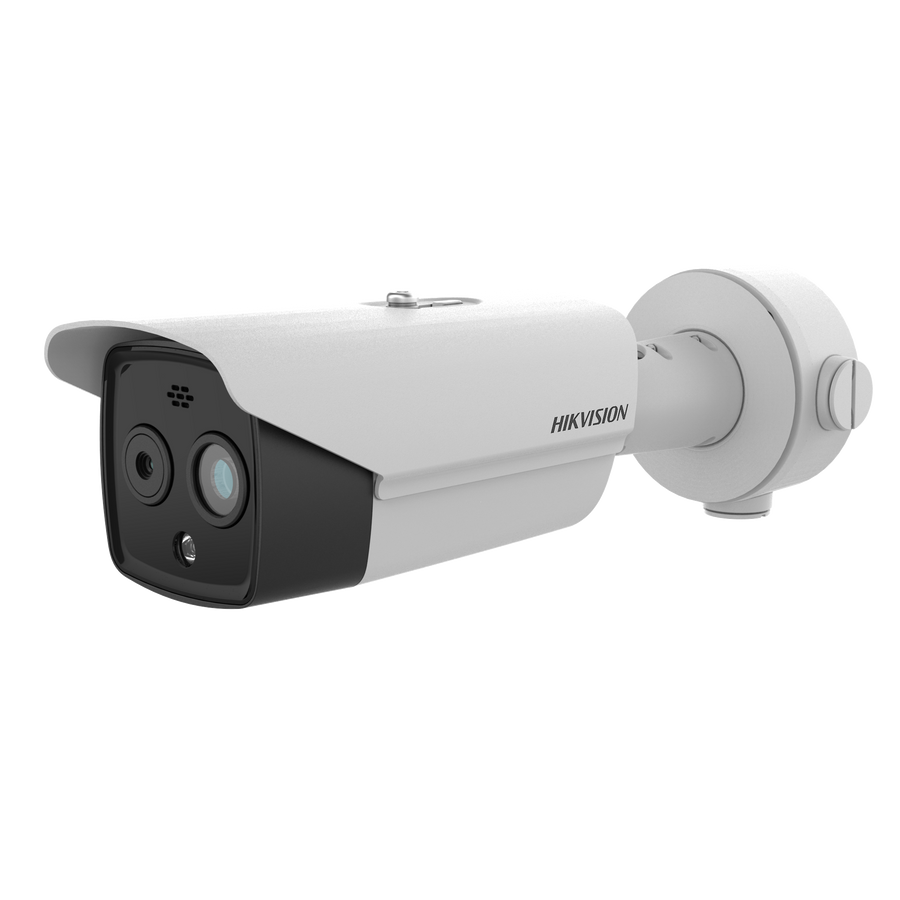

Advanced dual-spectrum surveillance built for demanding environments. The DS-2TD2628T-3/QA from Hikvision’s HeatPro Series pairs a 256 × 192 thermal module with a high-definition 4 MP optical sensor in a single rugged bullet housing. Whether you’re monitoring perimeters, manufacturing sites or critical infrastructure in South Africa, this camera delivers both thermal detection and visual verification from one streamlined unit.
Why this camera stands out
Standard visible-light cameras struggle when lighting is poor or there’s smoke, haze or total darkness. With the DS-2TD2628T-3/QA, you’ve got both thermal for detection and optical for detail. Built-in thermal analytics and excellent durability under harsh conditions make this one an outstanding choice.
Key features & benefits
-
Bi-spectrum design: Combines an uncooled VOx thermal imager and a 4 MP visible-light sensor in one housing.
-
High-sensitivity thermal module: 256 × 192 resolution with 12 µm pixel pitch and NETD ≤ 40 mK at 25 °C, F1.0.
-
Fixed thermal lens: Approx. 3.6 mm focal length, field of view around 50° × 37° (H×V).
-
4 MP optical module: 2688 × 1520 resolution, min. illumination ~0.0089 Lux (F1.6, AGC ON), 0 Lux with IR.
-
Fixed optical lens: Approx. 4.3 mm focal length, field of view ~84° × 43° (H×V).
-
Temperature-exception alarms: Range from -20 °C to +550 °C (depending on setup) with high accuracy for fire or overheat detection.
-
Robust build: IP67 weather rating and vandal-resistant housing suited for outdoor South African environments.
-
Smart analytics: Vehicle/human classification, VCA rules such as line-crossing and intrusion reduce false alarms.
-
Install-ready network camera: Supports network-streaming, dual-streams, ONVIF, future-proof integrations and monitoring.
Technical specifications
-
Model: DS-2TD2628T-3/QA
-
Thermal module resolution: 256 × 192 pixels, 12 µm VOx sensor.
-
Thermal lens: 3.6 mm (approx.), field of view ~50°×37°.
-
Optical sensor resolution: 4 MP (2688 × 1520).
-
Optical lens: 4.3 mm (approx.), field of view ~84°×43°.
-
Operating temperature-range: –20 °C to +65 °C (varies by region).
-
Ingress protection: IP67 (weatherproof).
-
Compression formats: H.264 / H.265 / MJPEG (typical dual-stream support)
Typical applications
- Perimeter monitoring of manufacturing plants, warehouses or mining sites in South Africa.
- Fire-risk environments requiring both heat-detection and visual verification (e.g., storage areas, waste plants).
- Security installations at estate gates or logistics yards where both human/vehicle detection and visual detail matter.
- Outdoor sites with complex lighting, dust or weather challenges where traditional cameras struggle.
Installation & setup notes
- Mount at a height with a clear line of sight to the critical area — the thermal module’s field of view should cover the full zone of interest.
- Configure your temperature-exception alarms and VCA rules through the Hikvision interface or NVR for maximum accuracy and minimum false alarms.
- Use shielded Ethernet and ensure PoE (or 12 V/24 V) supply meets camera requirements — this makes installation cleaner and simplifies power cabling.
- Clean the lens housing regularly and update firmware to keep analytics and detection performance optimal.
Ready to step up your surveillance? The Hikvision DS-2TD2628T-3/QA Bi-Spectrum Thermal & Optical Bullet Camera delivers high-end protection designed for South African conditions — combining thermal detection with optical clarity in one robust product. Upgrade today and stay ahead with smarter security.
Short product blurb (for collection pages): Hikvision DS-2TD2628T-3/QA — 256×192 thermal + 4 MP optical bi-spectrum network bullet camera with temperature-exception alerts and IP67 rating.
