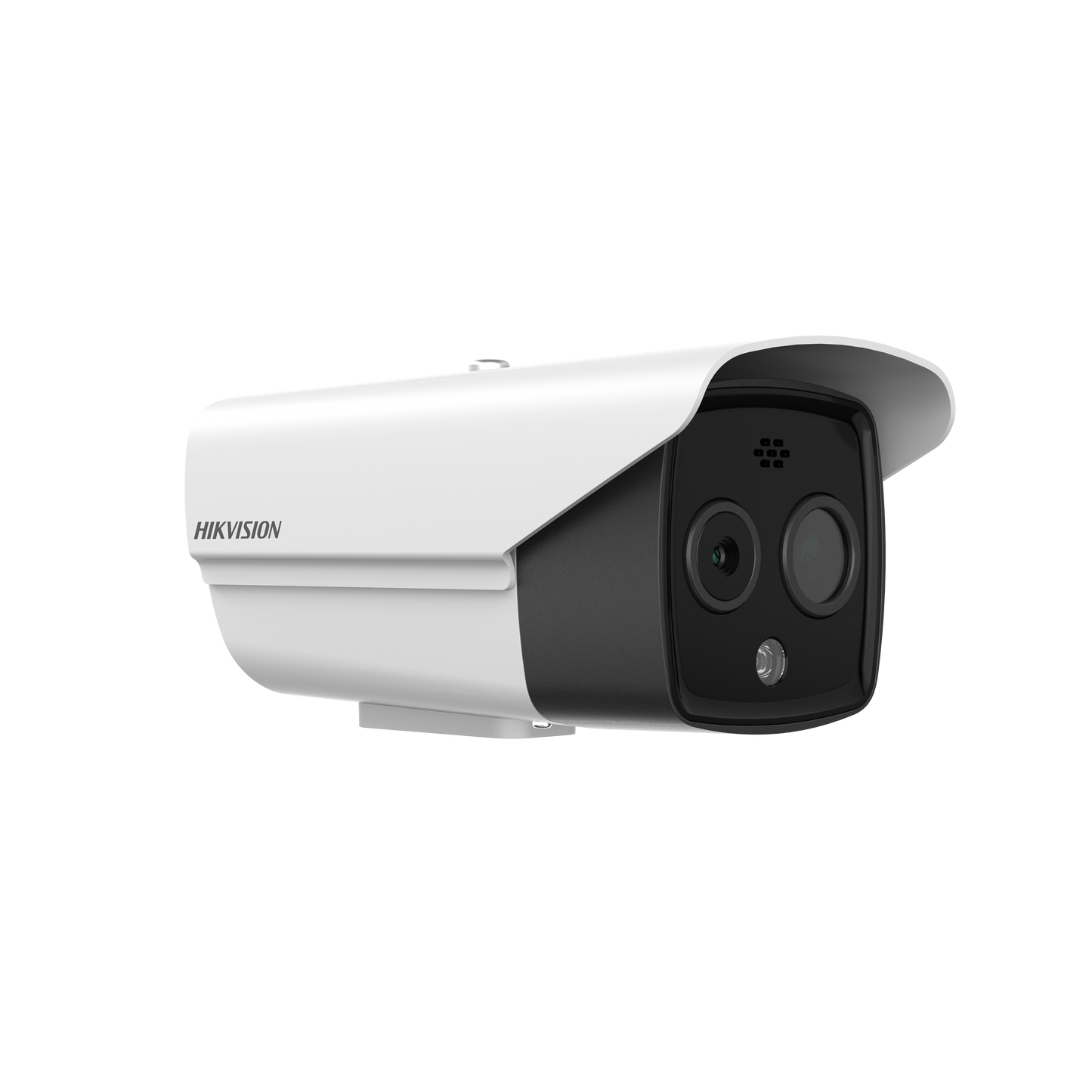

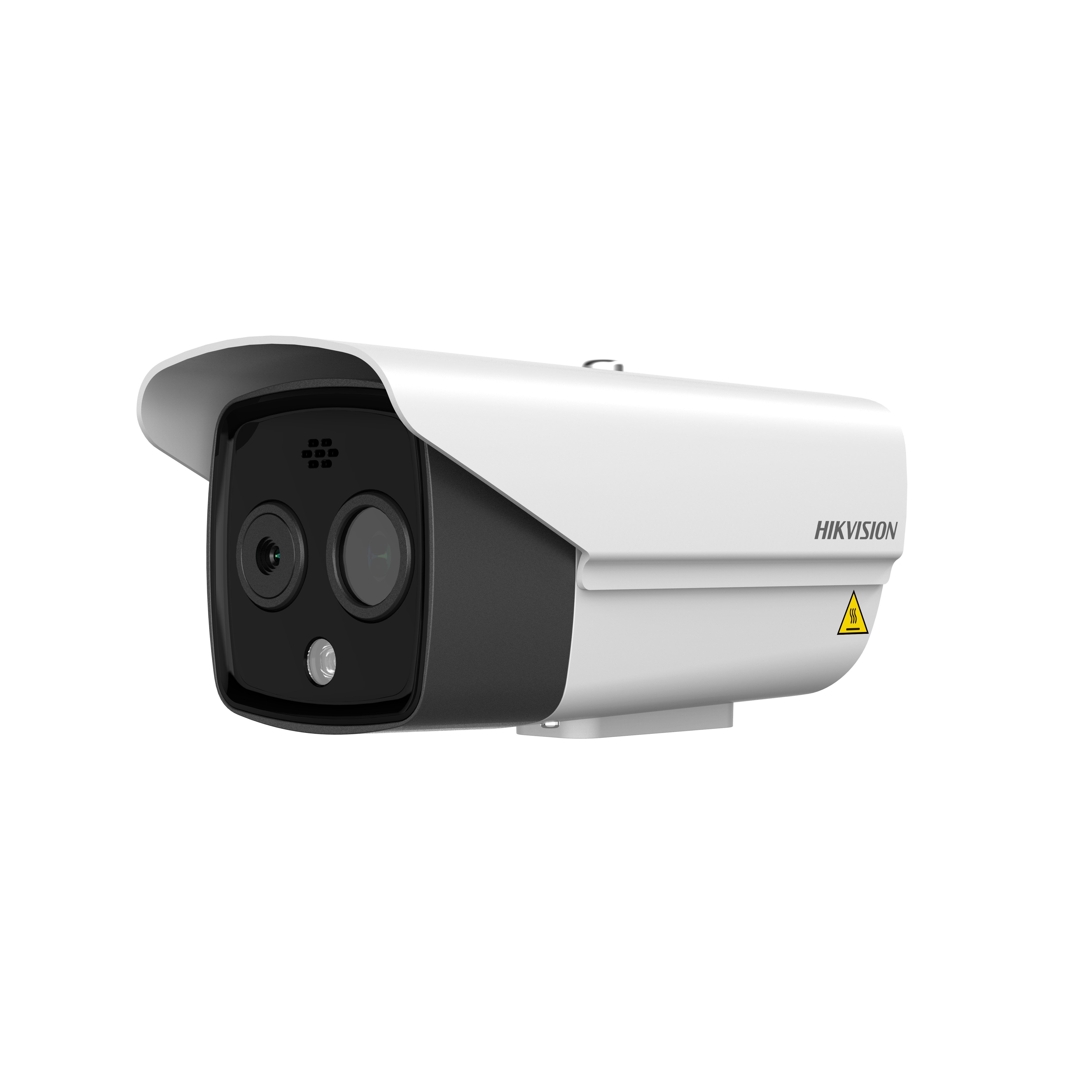

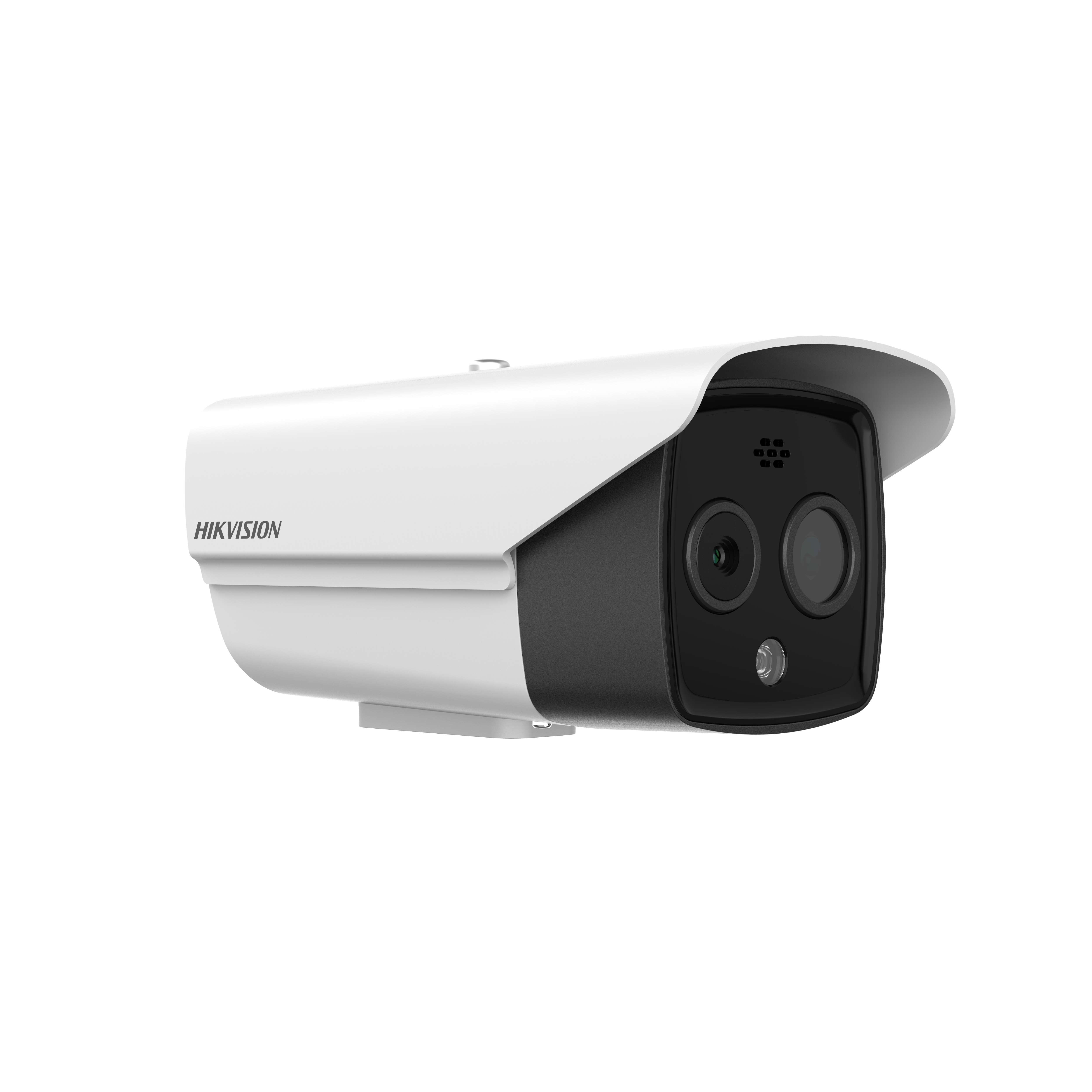

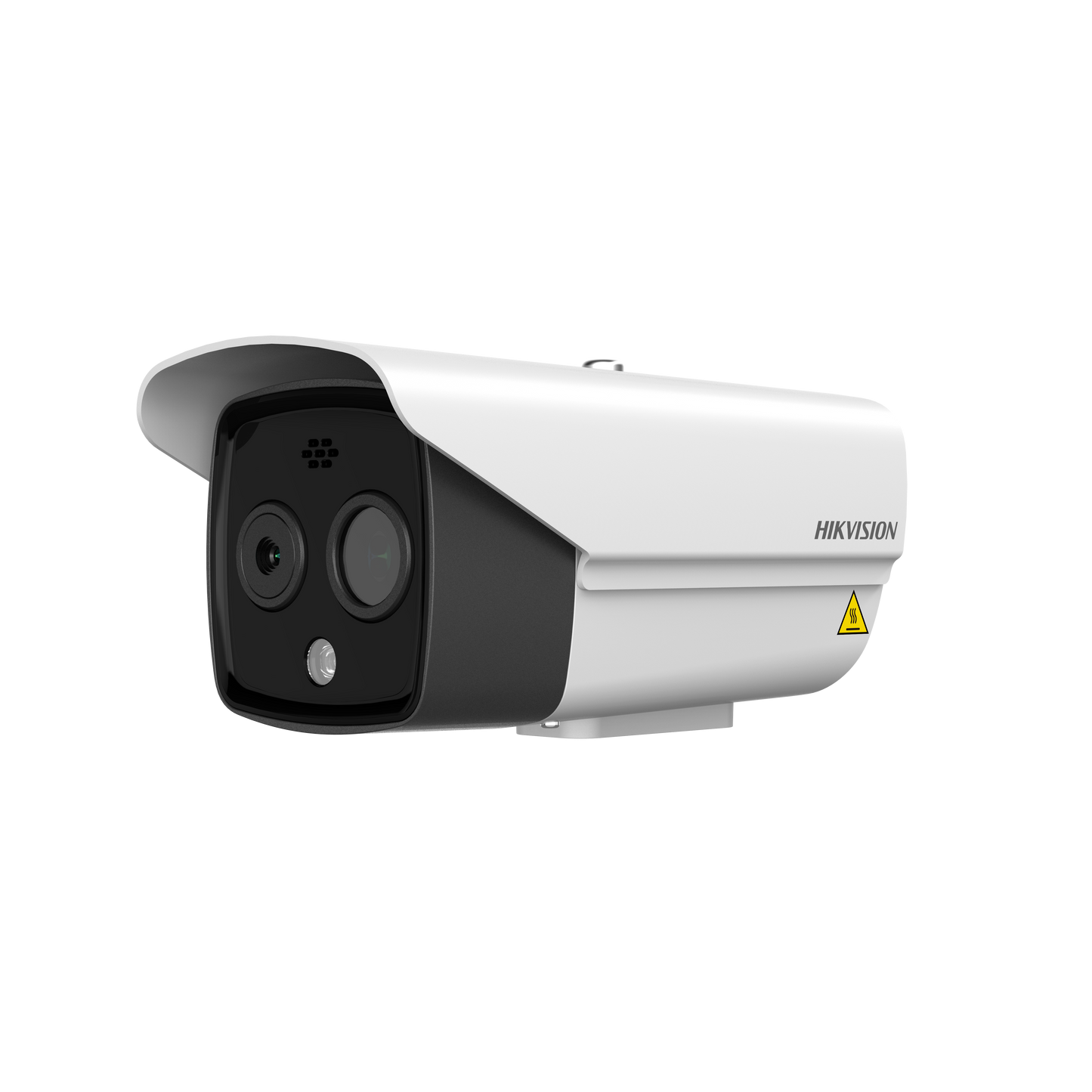

HIKVISION HEATPRO BULLET 3.5MM DS-2TD2628-3/QA/GLT
Precision Thermal & Optical Dual-Spectrum Surveillance
The HIKVISION HEATPRO BULLET 3.5MM DS-2TD2628-3/QA/GLT merges thermal and optical imaging into one high-performance unit, designed for reliable detection and visual clarity in challenging environments. Whether you’re guarding factory perimeters, industrial sites, or high-value estates in South Africa, this camera gives you both heat-signature insight and sharp optical verification day or night.
Why This Camera Works for You
Engineered for true situational awareness, the DS-2TD2628-3/QA/GLT stands out with dual-spectrum technology, smart analytics and broad coverage. The 3.5 mm thermal lens delivers wide-angle thermal detection, while its optical partner ensures crisp detail for identification and verification. Ideal for installations where you need early alerts, minimal false alarms, and long-term reliability in the South African climate.
-
Dual-Spectrum Imaging: Thermal module for heat signature detection plus optical module for detailed video verification.
-
Thermal Module: 256 × 192 VOx uncooled detector with 12 µm pixel pitch, NETD ≤ 40 mK – captures fine temperature variations even under low visibility.
-
Thermal Lens: ±3.5 mm focal length (approx) for wide field thermal coverage.
-
Optical Module: 4 MP (2688 × 1520) CMOS sensor – ensures clear visual evidence in any lighting.
-
Temperature Measurement: Covers –20 °C to +150 °C (or higher depending on rules) with intelligent alarm triggers for unusual heat events.
-
Smart Analytics: Features human/vehicle classification, line-crossing, region entrance/exit, and temperature exception alerts.
-
Weather-Tough Build: Designed for outdoor use with rugged construction and suitable for South African conditions.
-
Flexible Power & Network Options: Supports PoE or standard DC/AC inputs and integrates with network video systems for remote monitoring.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: 3.5 mm (or equivalent specification for GLT version)
-
Minimum Focus Distance (Thermal): ~0.5 m
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: ~4.3 mm focal length
-
Minimum Illumination: 0.0089 Lux @ F1.6 (or similar)**
-
Temperature Range: –20 °C to +150 °C**
-
Accuracy: ± 2 °C or ± 2% (whichever greater) – check local calibration requirements**
-
Video Compression: H.265/H.264
-
Ingress Protection: IP67 (or similar for GLT version)**
-
Operating Temperature Range: –40 °C to +65 °C**
-
Dimensions & Weight: Approx. earlier models ~321.3 × 106.1 × 107.0 mm; 1.55 kg**
Installation & Setup Tips
Mount the camera at a clear vantage point with unobstructed field of view, particularly avoiding reflective surfaces in the thermal view. Ensure the optical channel has adequate lighting or use supplementary illumination where necessary. Integrate the smart analytics in your video management system so alerts trigger promptly when heat signatures or motion events occur.
Take Your Security to the Next Level
The HIKVISION HEATPRO BULLET 3.5MM DS-2TD2628-3/QA/GLT delivers advanced thermal-optical performance, intelligent analytics and robust design — ideal for South African commercial and industrial security applications. ✅ Available now at NeonSales.co.za — upgrade your surveillance capability today.
