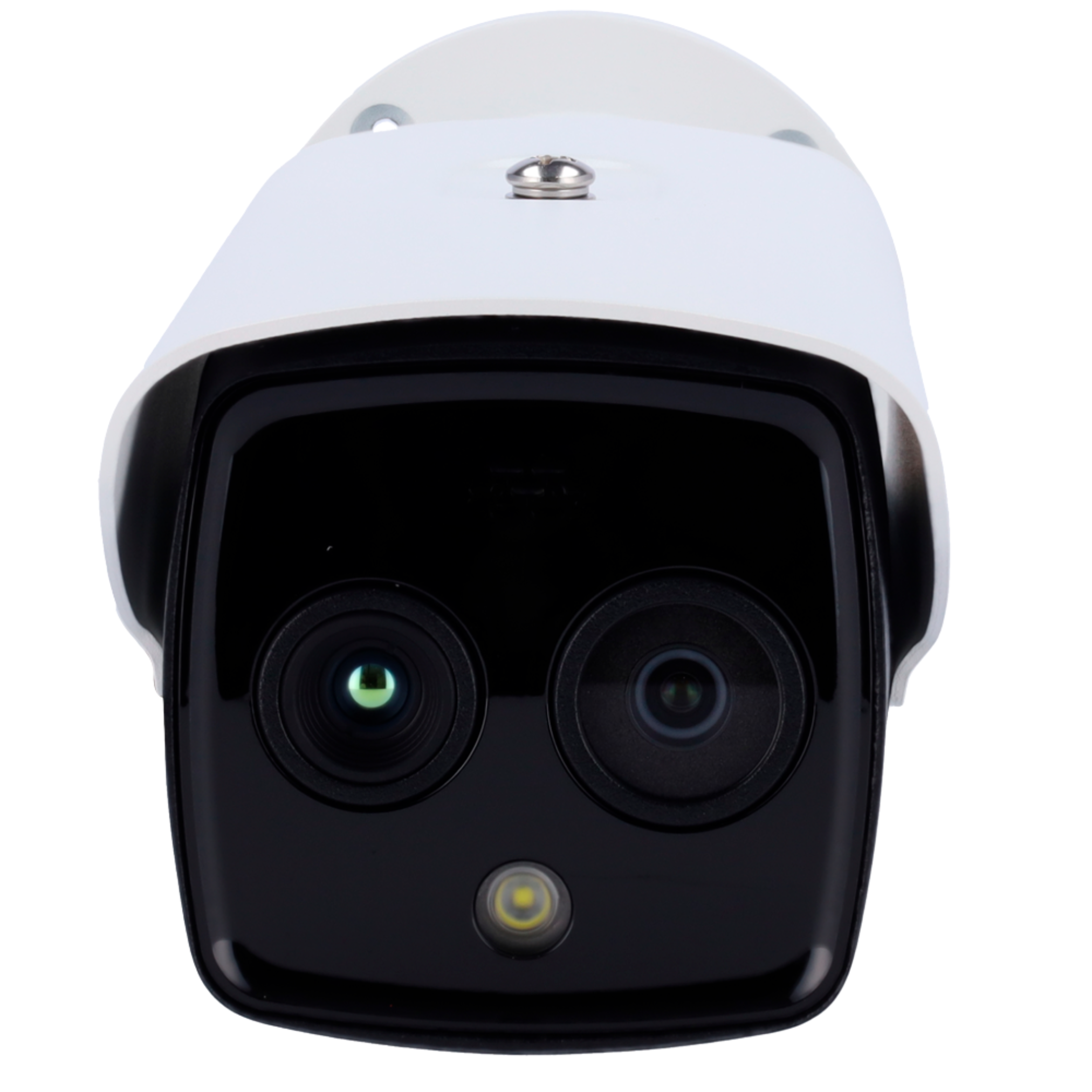

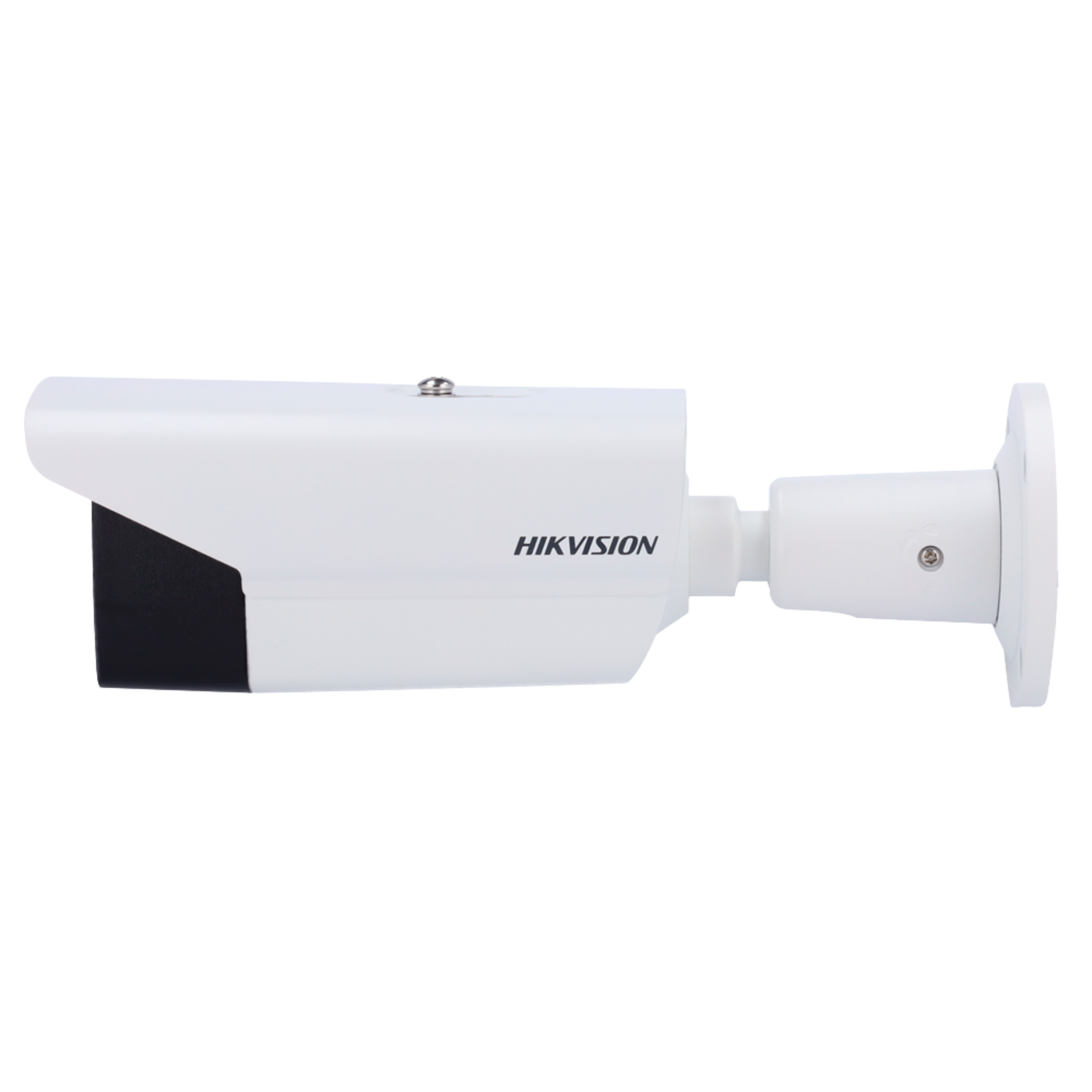

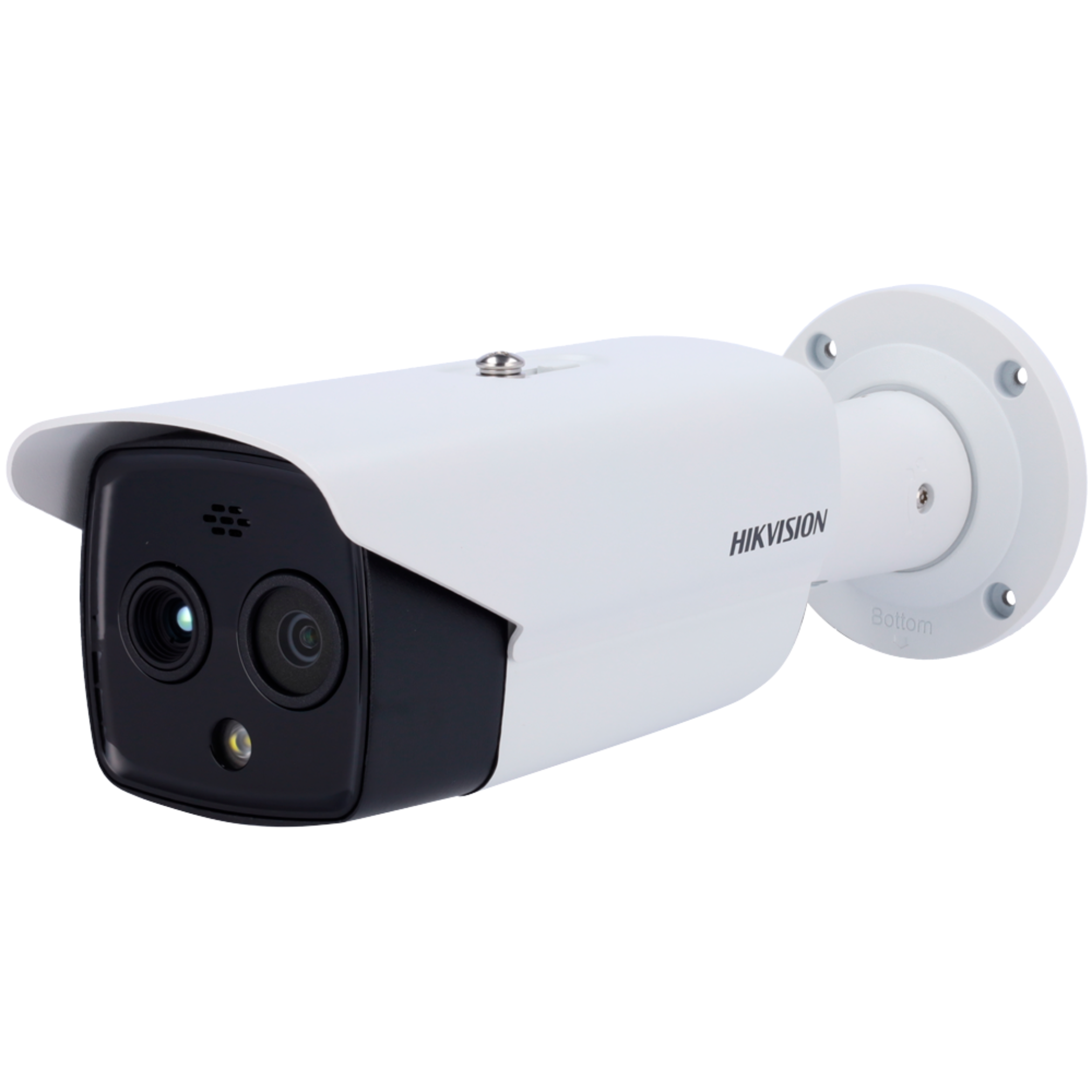

HIKVISION HEATPRO BULLET 3.5MM DS-2TD2628-3/QA
Advanced Thermal Vision with Dual-Spectrum Accuracy
Experience superior thermal monitoring with the HIKVISION HEATPRO BULLET 3.5MM DS-2TD2628-3/QA — a bi-spectrum thermal camera built for reliable detection and professional-grade perimeter protection. This compact, intelligent camera blends powerful thermal sensing with sharp optical imagery, giving you full situational awareness in all lighting and weather conditions. Perfect for South African businesses, farms, warehouses, and industrial sites where accuracy and reliability are essential.
Built for Intelligent Protection
Designed to identify threats before they become problems, the HeatPro 3.5 mm model integrates advanced analytics, temperature measurement, and dual-spectrum technology. Whether used for fire prevention, perimeter security, or equipment monitoring, it delivers dependable, real-time alerts and precise imaging even in total darkness.
-
Dual-Spectrum Imaging: Combines thermal and optical channels for seamless heat detection and visual verification.
-
High-Performance Thermal Module: 256 × 192 VOx uncooled detector with a 3.5 mm thermal lens and ≤ 40 mK sensitivity captures fine temperature variations clearly.
-
4 MP Optical Module: 2688 × 1520 resolution with a 1/2.7″ Progressive Scan CMOS sensor and 120 dB WDR ensures crisp visuals even in mixed lighting.
-
Temperature Measurement: Detects from –20 °C to 150 °C with ±8 °C accuracy — ideal for fire prevention, electrical systems, and machinery supervision.
-
Smart Video Analytics: Human and vehicle classification, line-crossing detection, intrusion alerts, region entrance/exit, and temperature-based alarms.
-
Weatherproof and Durable: Built to IP67 standards, engineered to withstand dust, rain, and harsh outdoor conditions.
-
Easy Integration: Supports 12 V DC, 24 V AC, and PoE (802.3af) power options, compatible with ONVIF network standards.
Specifications
-
Thermal Detector: 256 × 192 uncooled VOx microbolometer
-
Thermal Lens: 3.5 mm focal length
-
Thermal Sensitivity (NETD): ≤ 40 mK (@ 25 °C, F1.0)
-
Spectral Range: 8 µm – 14 µm
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Minimum Illumination: 0.0089 Lux @ (F1.6, AGC ON)
-
Temperature Range: –20 °C to +150 °C (±8 °C accuracy)
-
Smart Functions: Human/vehicle detection, line crossing, intrusion, region entry/exit, temperature alarms
-
Video Compression: H.265 / H.264
-
Ingress Protection: IP67
-
Operating Temperature: –40 °C to +65 °C
-
Local Storage: microSD / microSDHC / microSDXC slot (up to 256 GB)
-
Network Interface: RJ-45 10/100Base-T, ONVIF compatible
-
Power Supply: 12 V DC / 24 V AC / PoE (802.3af)
-
Dimensions: 321.3 mm × 106.1 mm × 107.0 mm
-
Weight: 1.55 kg
What’s in the Box
- 1 × Hikvision HeatPro Bullet 3.5 mm DS-2TD2628-3/QA Camera
- Instruction manual
Ideal Applications
This model is ideal for property boundaries, substations, fuel storage sites, and logistics yards. It provides reliable early-warning detection and intelligent monitoring, ensuring your premises remain secure in all conditions.
Installation Tips
- Install between 2.5 m – 4 m height for optimal field coverage.
- Position the thermal lens to face open detection zones without reflective surfaces.
- Integrate with compatible Hikvision NVRs or ONVIF systems for advanced event management.
Enhance Your Security with Thermal Precision
Protect your premises with the HIKVISION HEATPRO BULLET 3.5 MM DS-2TD2628-3/QA — the professional-grade thermal camera built for South African conditions. Get intelligent detection, exceptional clarity, and robust reliability in one unit. ✅ Available now at NeonSales.co.za — your trusted source for Hikvision security technology.
