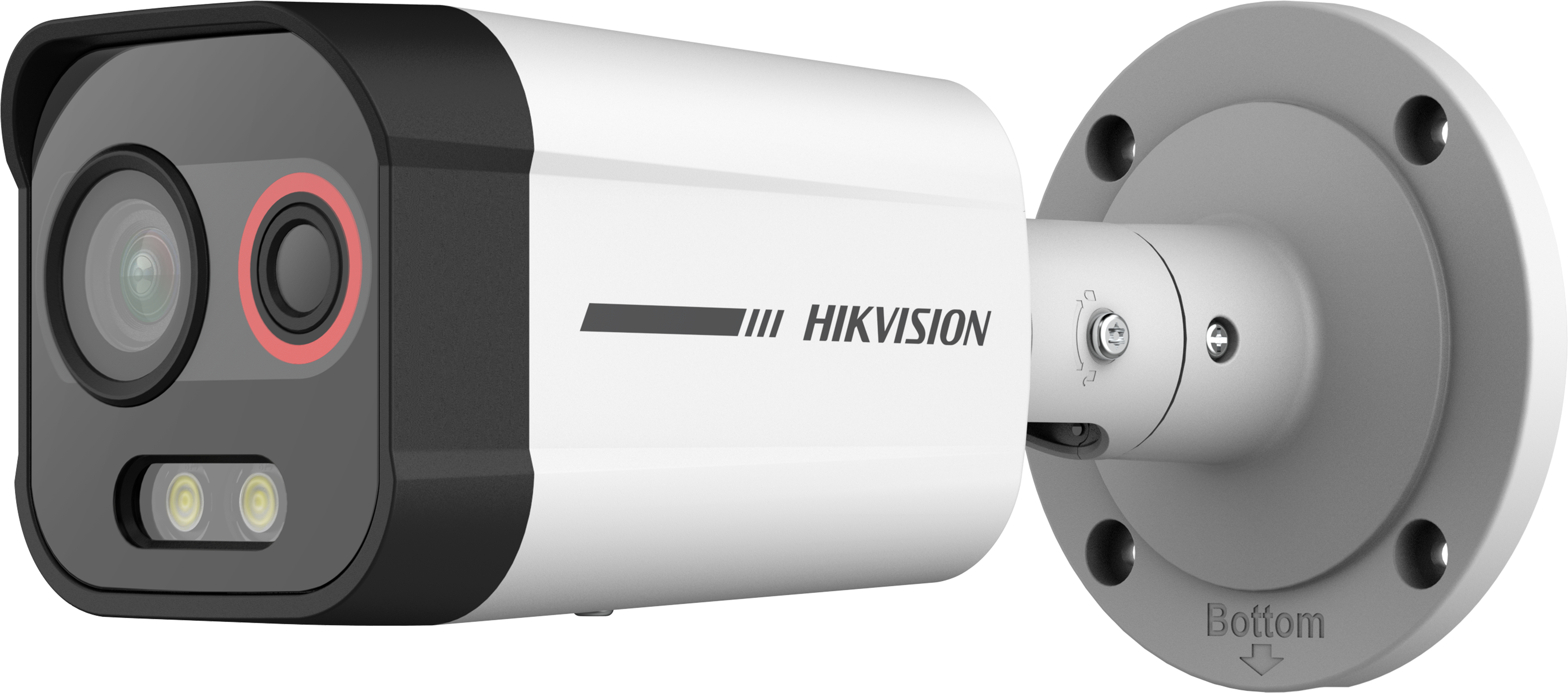

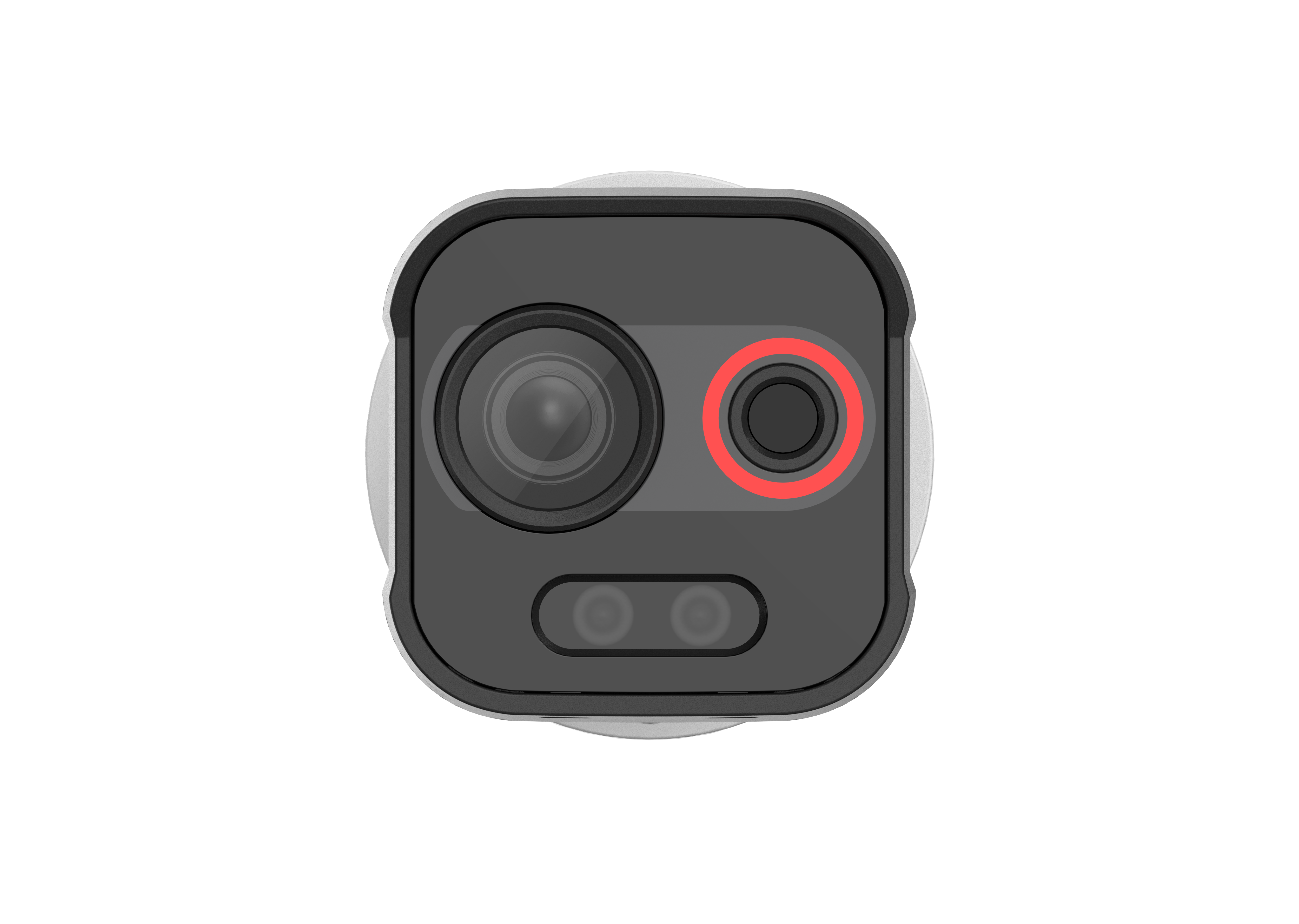

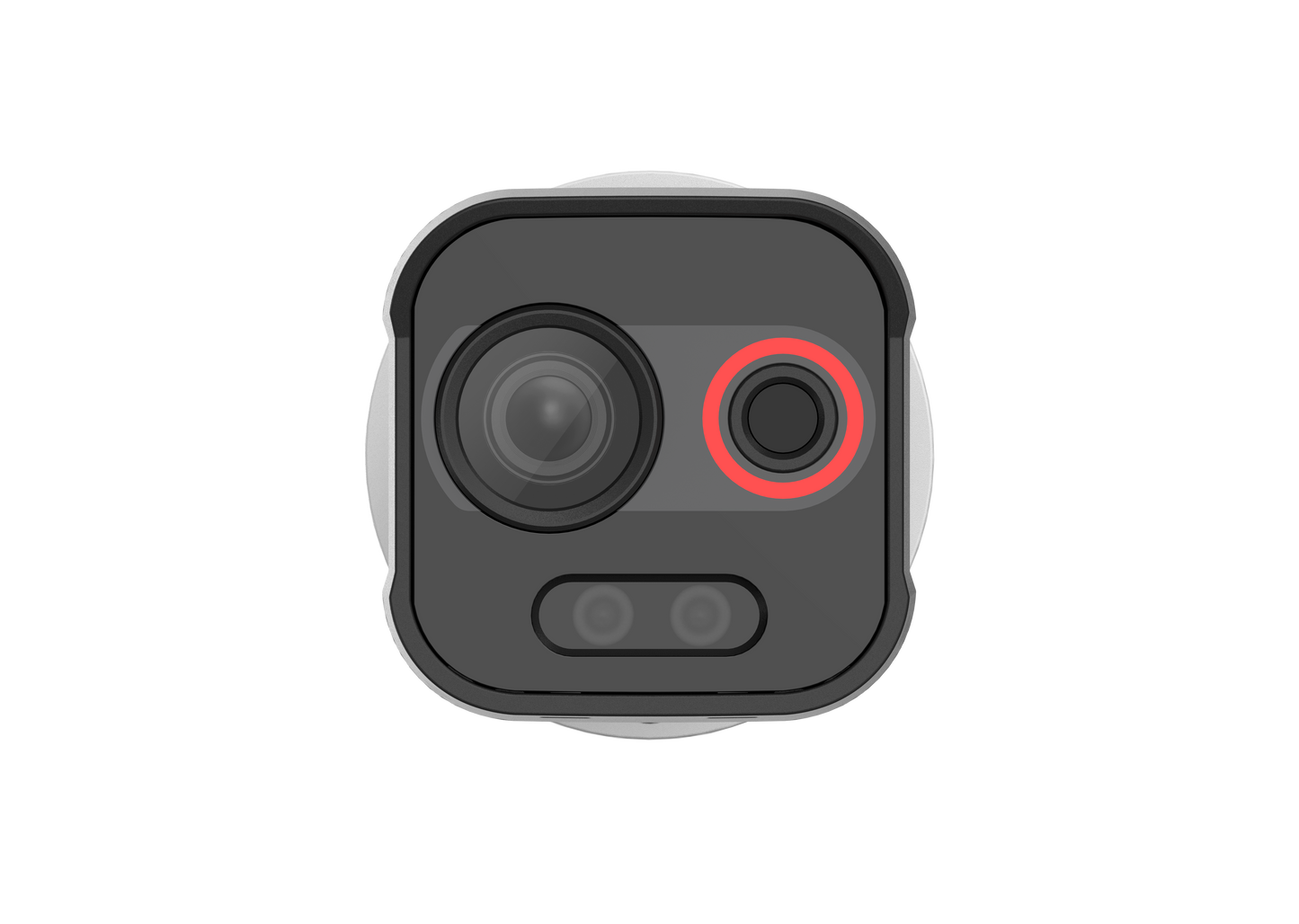

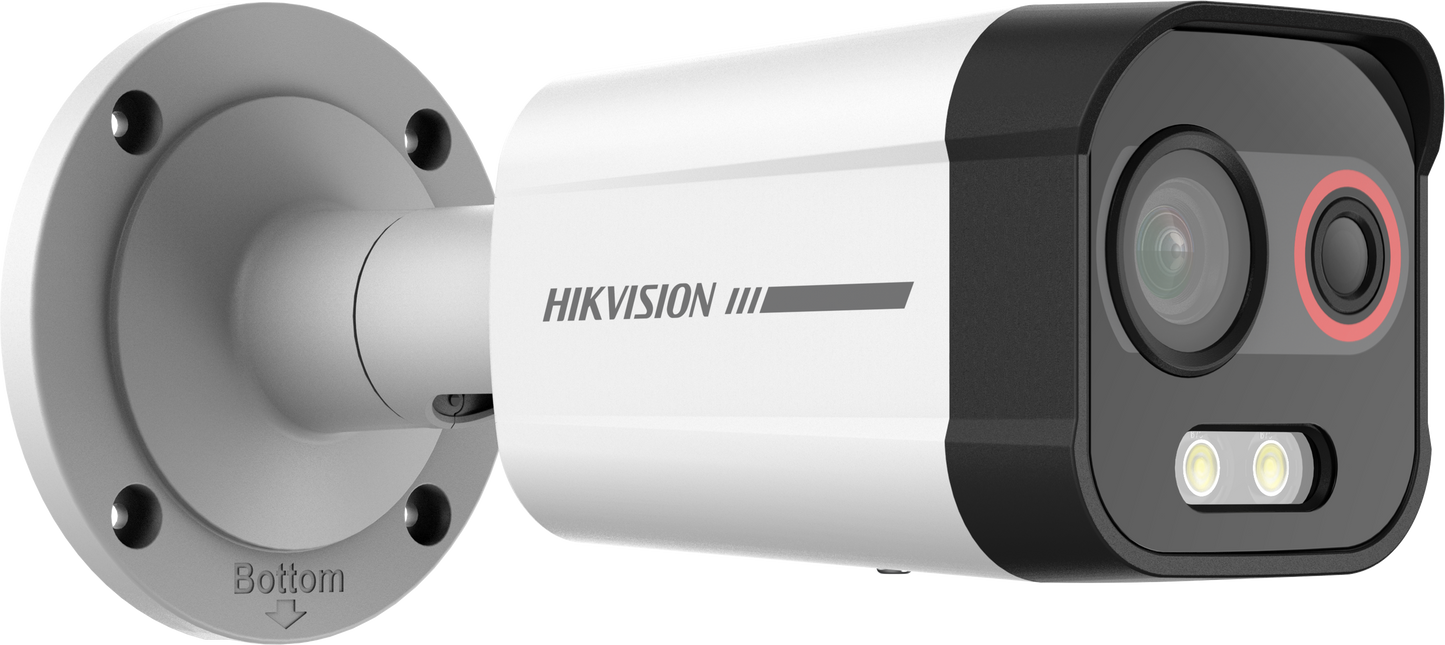

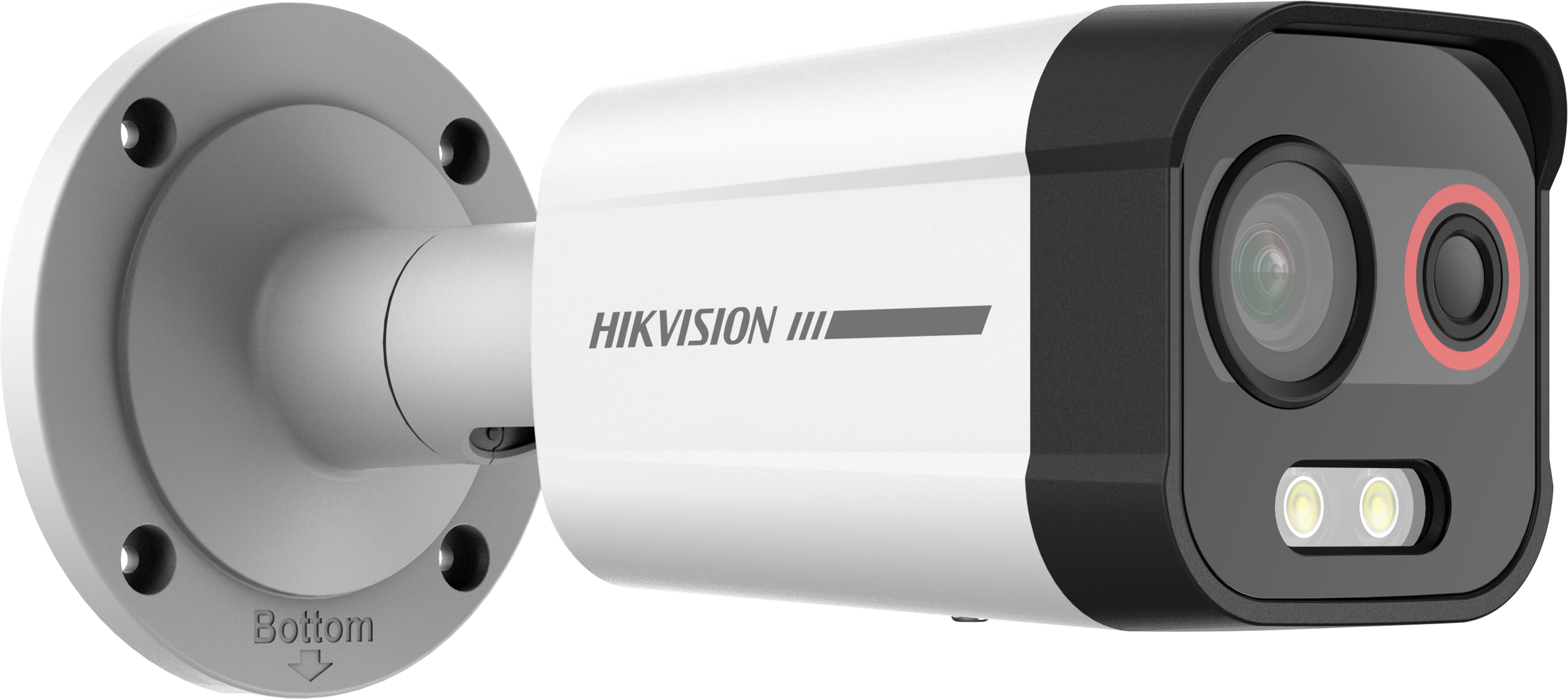

Cutting-edge dual-spectrum surveillance built for demanding environments. The DS-2TD2608-1/QA combines a thermal imaging module with a high-resolution optical sensor in a robust bullet camera housing. Designed for professional installations in South Africa, it delivers reliable detection and visual verification in challenging lighting or weather conditions.
Why this camera stands out
Standard cameras often falter in poor lighting or obscured environments. With the DS-2TD2608-1/QA, you get both thermal detection and sharp visible-light imagery in one housing—giving you the clarity and confidence you need. With built-in analytics and rugged outdoor performance, it’s ideal for security and monitoring applications where performance cannot be compromised.
Key features & benefits
-
Bi-spectrum design: Integrates an uncooled VOx thermal sensor (96 × 72) with a 4 MP optical camera in one unit.
-
Thermal module: 96 × 72 resolution with 12 µm pixel pitch and NETD < 55 mK @ 25 °C F1.0, 1.35 mm lens allowing wide thermal field of view (~50° × 37.5°).
-
Optical module: 1/1.8″ Progressive Scan CMOS with 2688 × 1520 resolution, 4 mm fixed lens offering approx. 94° × 50° field of view, minimum illumination of 0.0003 Lux (F1.0, AGC ON).
-
Temperature measurement & alerts: Alarm range from –20 °C to +300 °C with multiple rule types for fire, intrusion or heat-event monitoring.
-
Smart analytics & safety features: Human/vehicle classification, strobe light and audio alarm, dual-stream video compression (H.265/H.264/MJPEG) and robust outdoor protection.
Technical specifications
-
Model: DS-2TD2608-1/QA
-
Thermal sensor: 96 × 72 VOx uncooled, 12 µm pixel size, NETD < 55 mK @ 25 °C
-
Thermal lens: Approx. 1.35 mm focal length with field of view approx. 50° × 37.5°; minimum focusing distance 0.05 m
-
Optical sensor: 1/1.8″ Progressive Scan CMOS, resolution 2688 × 1520 (4 MP)
-
Optical lens: 4 mm fixed focal length, field of view approx. 94° × 50°; minimum illumination 0.0003 Lux @ F1.0
-
Temperature measurement range: –20 °C to +300 °C, accuracy ±4 °C (typical) in 15–35° C ambient, ±8 °C otherwise
-
Video & compression: Thermal 25 fps (1280 × 720 etc.), Optical 25 fps @ 50Hz or 30 fps @ 60Hz; H.265 / H.264 / MJPEG support
-
Power supply: 12 V DC ±25% (0.7 A), or PoE (802.3af Class 3) — max power < 8.5 W
-
Ingress protection: IP67 rated, IK10 impact protection, TVS 4000 V surge protection; operating temperature -40 °C to +70 °C
-
Dimensions: Approx. 211.5 mm × 105 mm × 105 mm; Weight ~869 g
Ideal applications
- Perimeter security for industrial, logistics, mining or large estates needing both heat signature detection and visual confirmation.
- Fire-risk monitoring areas, storage sites or warehouses where hotspot detection complements CCTV.
- Outdoor monitoring in South Africa where weather, dust, darkness or glare reduce performance of standard cameras.
Installation & setup tips
- Ensure clear line of sight for both modules; install at a height that covers your critical zone.
- Use PoE where possible for easier power and cabling management.
- Configure temperature-exception rules and analytics settings to match local environment and avoid false alarms.
- Clean the protective window periodically and maintain firmware updates to ensure optimal performance.
Advanced detection meets high-definition clarity. The Hikvision DS-2TD2608-1/QA is built for South African conditions and professional use—delivering hybrid thermal and optical surveillance in one compact bullet camera. Invest in performance that doesn’t compromise.
Short product blurb (for collection pages): Hikvision DS-2TD2608-1/QA — Bi-Spectrum Thermal & Optical Bullet Camera, 96×72 thermal + 4 MP optical, –20 °C to +300 °C temperature alarm support, IP67 outdoor ready.
