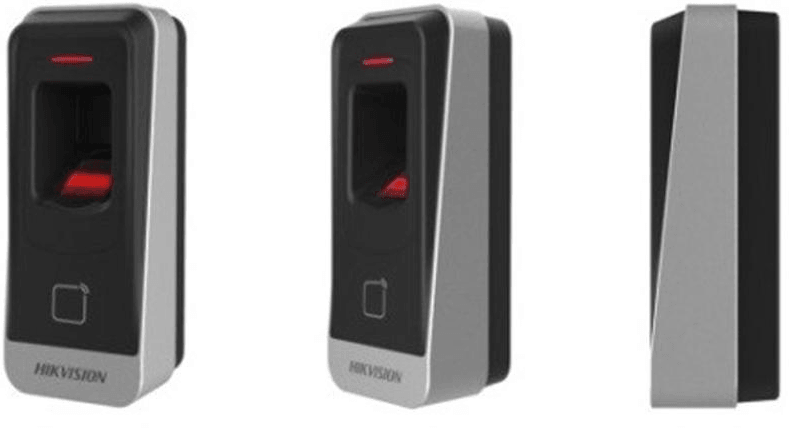

HIKVISION FINGERPRINT AND CARD READER
DS-K1201AMF
Experience secure and efficient data storage with our HIKVISION FINGERPRINT AND CARD READER! Designed with an optical CMOS fingerprint module, it supports multiple authentication modes such as card, fingerprint, and card + fingerprint, maximizing convenience and protection.
Additionally, our reader boasts a fast and accurate fingerprint comparison time, with a 1:1 mode of ≤ 1 s and a 1:1000 mode of ≤ 1 s, ensuring reliable and seamless operation. With a maximum capacity of 5000 fingerprints and an optical coupling isolation and noise suppression function built-in, our reader is perfect for any security setting.
Don't wait any longer, get your HIKVISION FINGERPRINT AND CARD READER today and protect your data with confidence!
FEATURES:
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports M1 card reading
- Card induction distance is 30 mm to 100 mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Built-in buzzer for status indication
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function
SPECS:
- Interface
- TAMPER1
- Authentication
- Fingerprint ModuleOptical fingerprint module
- Fingerprint Comparing Mode1:1/1:N
- Card TypeM1 card
- General
- Power Supply12 VDC ± 10%
- Power Consumption≤ 1.6 W
- Working Temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Working Humidity 10% to 90% (no condensing)
- Dimensions 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
- Installation Surface mounting
- Buzzer Support
