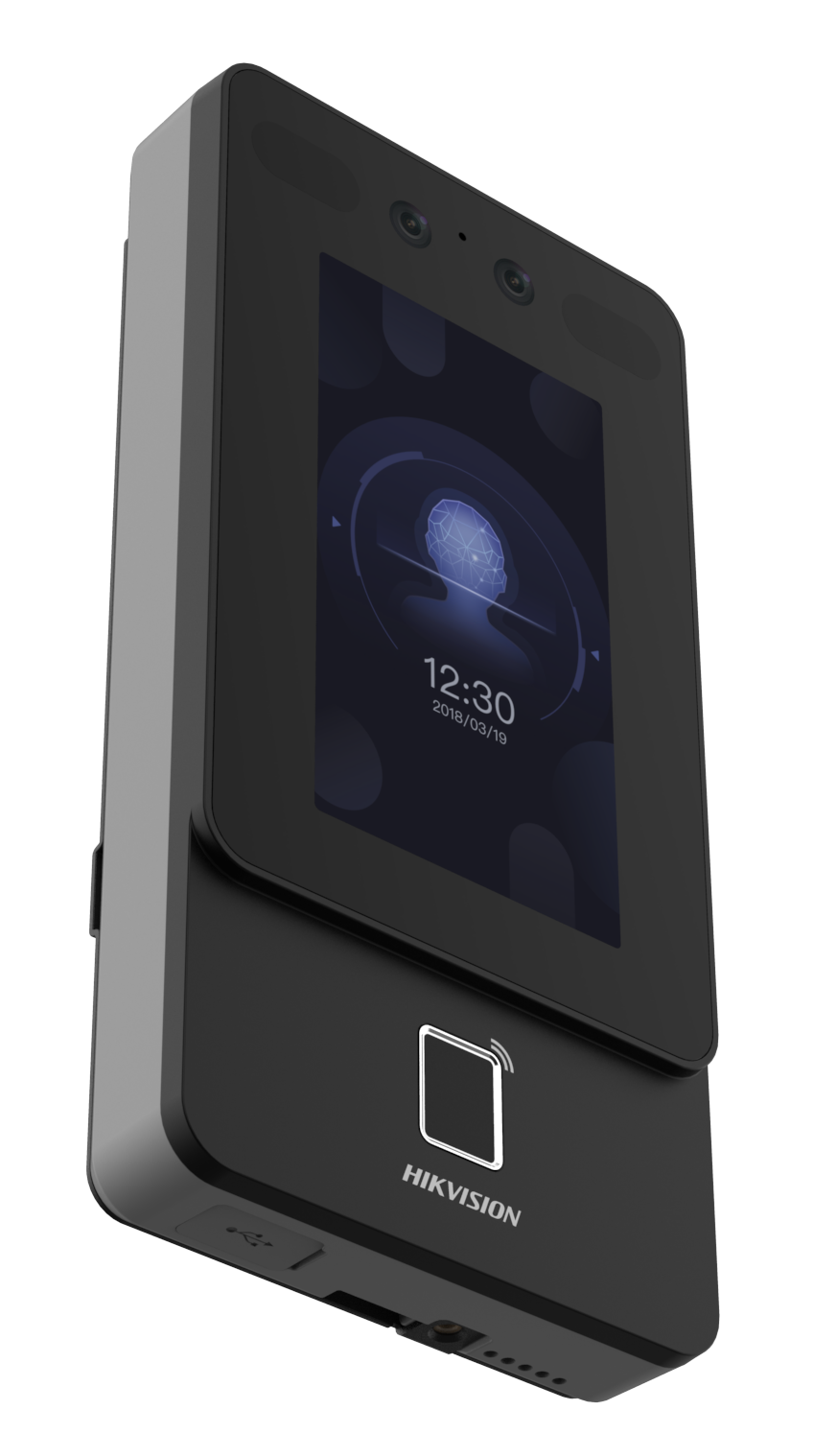

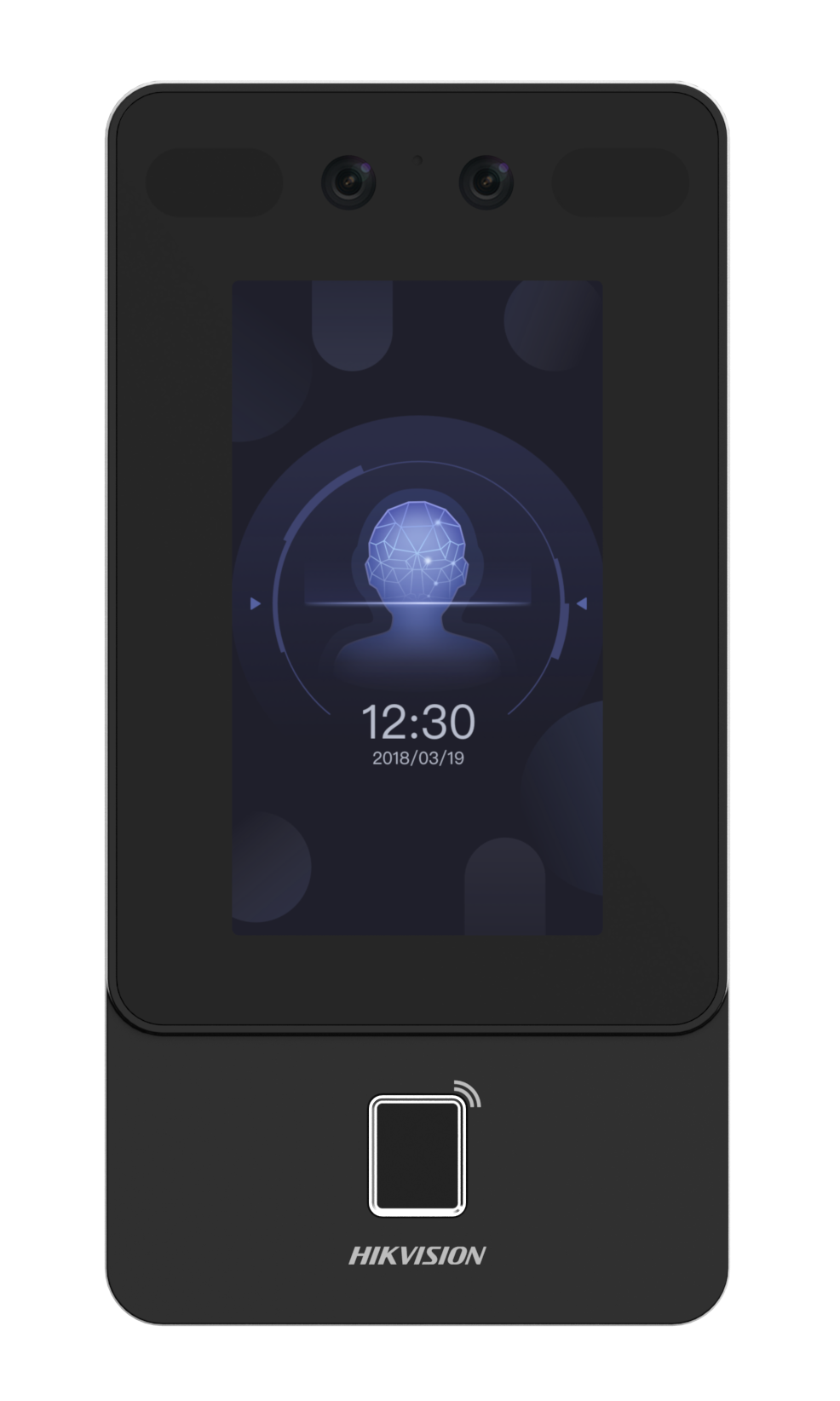

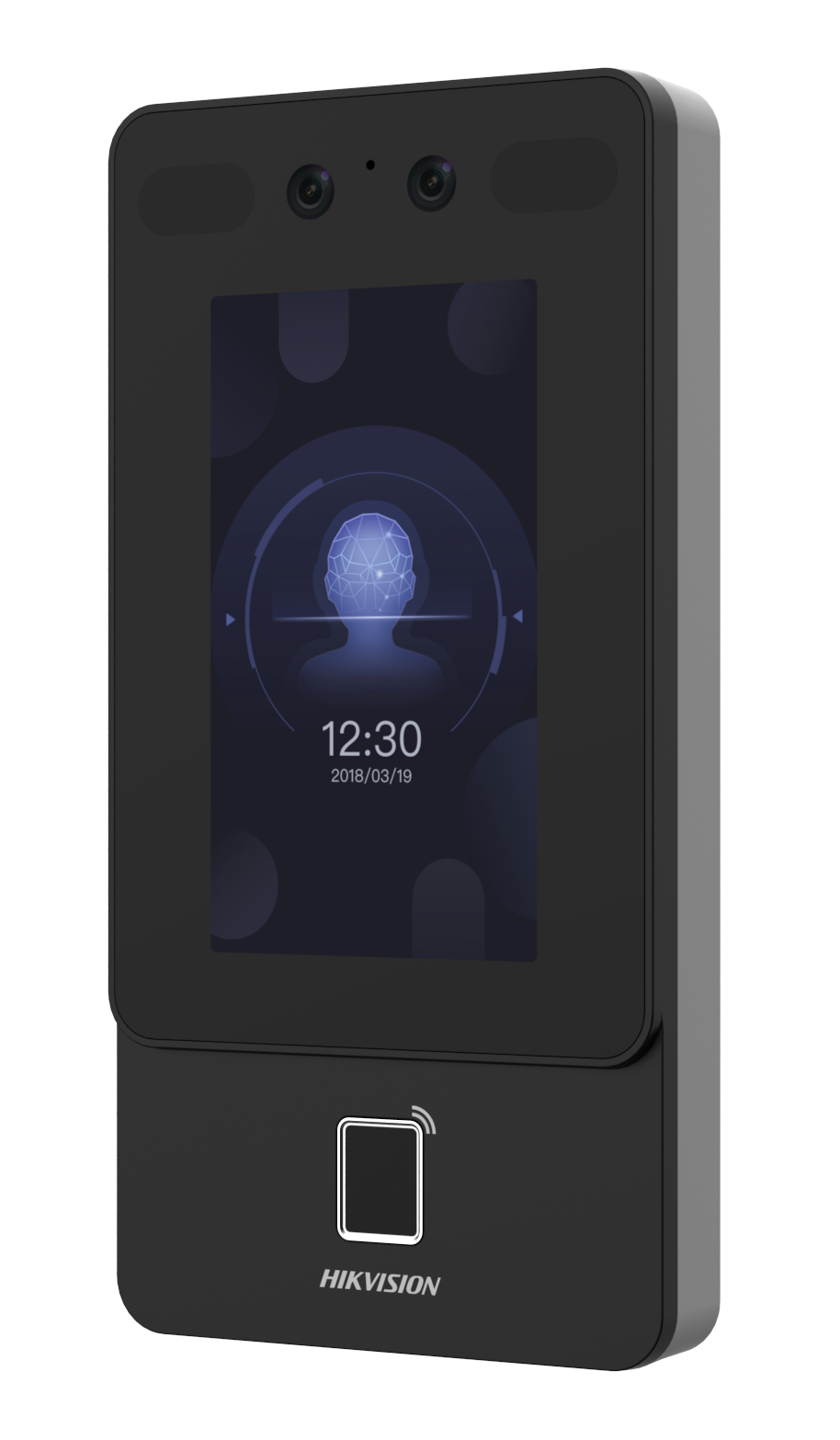

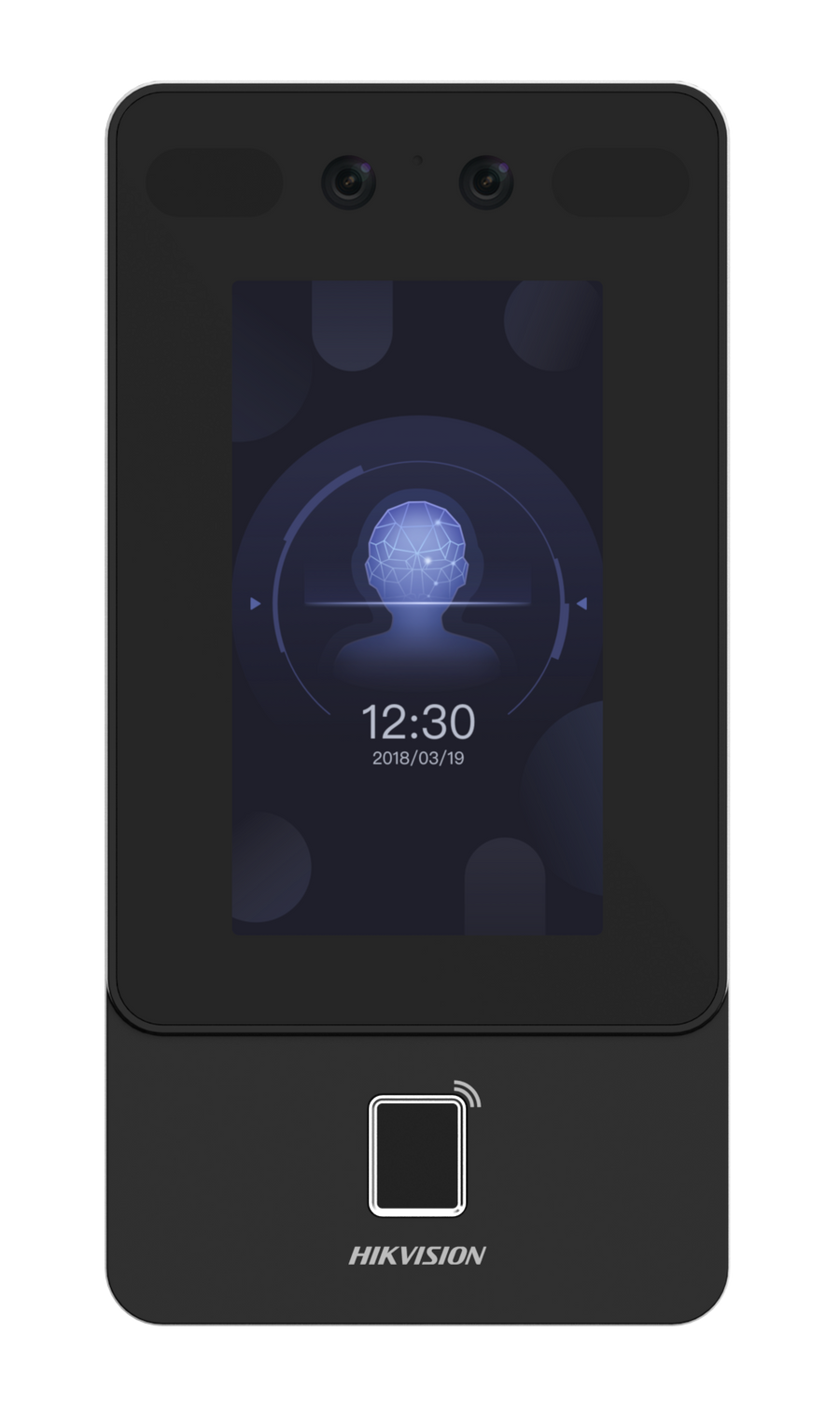

Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal
Secure and fast biometric access control for modern facilities. The Hikvision DS-K1T342MFWX-E1 is a high-performance facial recognition terminal engineered for dependable identity verification in offices, schools, factories and residential estates. With support for up to 1,500 faces, 3,000 fingerprints and 3,000 cards, plus sub-0.2-second recognition, this device delivers both speed and accuracy when controlling access — ideal for South Africa’s demanding environments.
Why it’s a smart access-control choice
-
Rapid biometric authentication: Face recognition in less than 0.2 seconds with accuracy over 99% in tests.
-
Multi-modal credentials: Supports 1,500 faces, 3,000 fingerprints and 3,000 cards — flexible for your users.
-
Mask-recognition capable: Works even when users are wearing face masks — ideal for health-aware or high-traffic environments.
-
Built-in PoE and lock output: Can be powered via PoE (37-57 VDC) and supplies 12 VDC/1 A to door lock when PoE powered — simplifies installation.
-
Weather-resistant build: IP65-rated housing, wide temperature range (-30 °C to +60 °C) — suitable for both indoor and sheltered outdoor entry points in South Africa.
Specifications & features
| Model |
DS-K1T342MFWX-E1 |
| Face capacity |
1,500 users |
| Fingerprint capacity |
3,000 users |
| Card capacity |
3,000 users (M1 card, 13.56 MHz) |
| Recognition distance |
0.3 m to 1.5 m |
| Recognition duration |
<0.2 s (face) |
| Accuracy rate |
>99% |
| Display |
4.3″ capacitive-touch screen (272×480) |
| Camera |
2 MP wide-angle lens |
| Interface |
10/100 Mbps network; Wi-Fi support |
| Power input |
12 V DC/1 A or PoE 37-57 VDC |
| Lock output |
12 V DC/1 A (when driven via PoE) |
| Operating temp. |
-30 °C to +60 °C |
| Protection rating |
IP65 |
Installation & usage tips
- Mount at eye-level for most users (approx. 1.4 m from ground) and ensure no direct sunlight or strong backlight hits the camera area.
- Connect via PoE if possible to simplify cabling and use the built-in lock output to drive a 12 V actuator directly.
- Configure user groups and authentication modes (face only, face + card, fingerprint) to suit your site’s security policy.
- For outdoor or semi-outdoor use, place the unit under an awning or recess to protect from direct rain, even though it is IP65 rated.
- Keep firmware up to date via Hikvision’s web-interface to ensure best performance and latest security patches.
Frequently asked questions
Does this terminal support mask detection?
Yes — it supports face recognition even when users are wearing face masks.
Can it be used outdoors?
Yes — with its IP65 protection and wide operating temperature range, it is suitable for sheltered outdoor installation, such as building entrances or covered gate posts.
Ready to upgrade access control? Add the Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal to your cart today and deliver fast, secure and smart authentication for your property.
