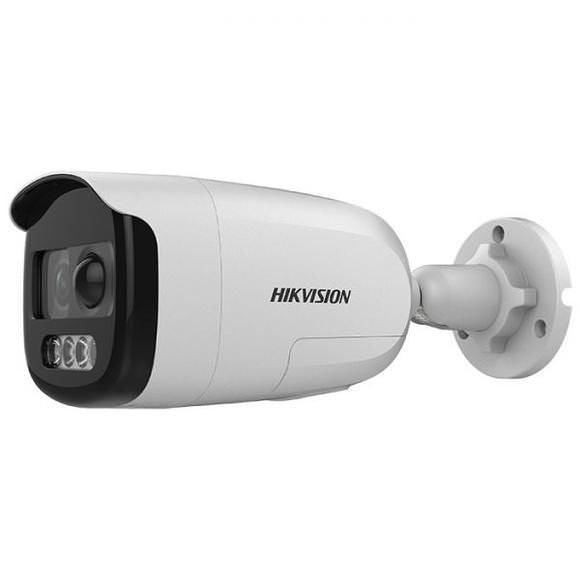

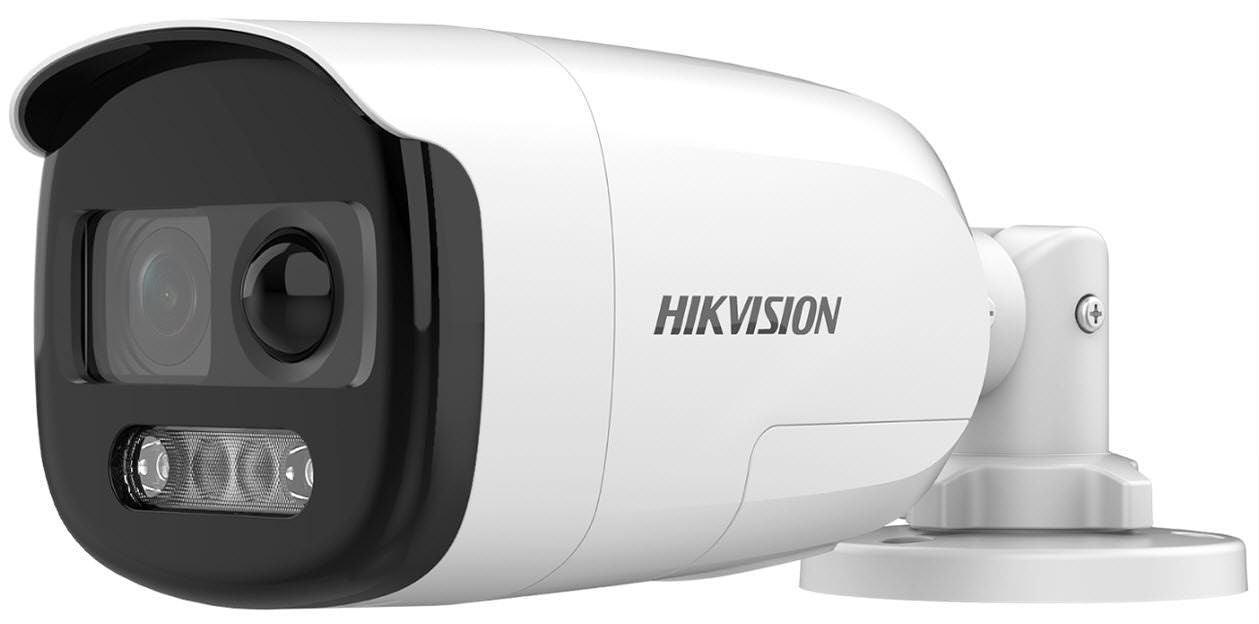

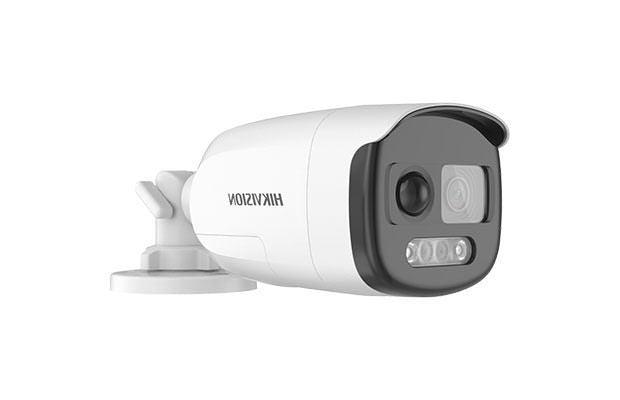

HIKVISION DS-2CE12DOT-PIRXF 2.8MM 40M IR

Features

2 MP PIR Siren Fixed Bullet Camera

2 MP PIR siren bullet camera

PIR detection, red and blue flashlight alarm, audio alarm and alarm out to warn off intruders in real-time

EXIR 2.0: advanced infrared technology with 40 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) x 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360, Tilt: 0 to 90, Rotate 0 to 360
• Signal SystemPAL/NTSC
• Light AlarmYes

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 106�, vertical FOV: 57�, diagonal FOV: 124�

  3.6 mm, horizontal FOV: 81�, vertical FOV: 43�, diagonal FOV: 96�

  6 mm, horizontal FOV: 51�, vertical FOV: 29�, diagonal FOV: 58�

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 1080p@30fps, 1080p@25fps

  AHD: 1080p@30fps, 1080p@25fps

  CVI: 1080p@30fps, 1080p@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Enclosure: Plastic

  Main Body: Metal

• Dimension77.1 mm x 82.6 mm x 208.9 mm (3.04" x 3.25" x 8.22")
• Approx. 439 g ( 0.97 lb.)
• Operating Condition-40 C to 60 C (-40 F to 140 F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC � 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 6.6 W

  �

• IR RangeUp to 40 m

• Approval
• ProtectionIP67
