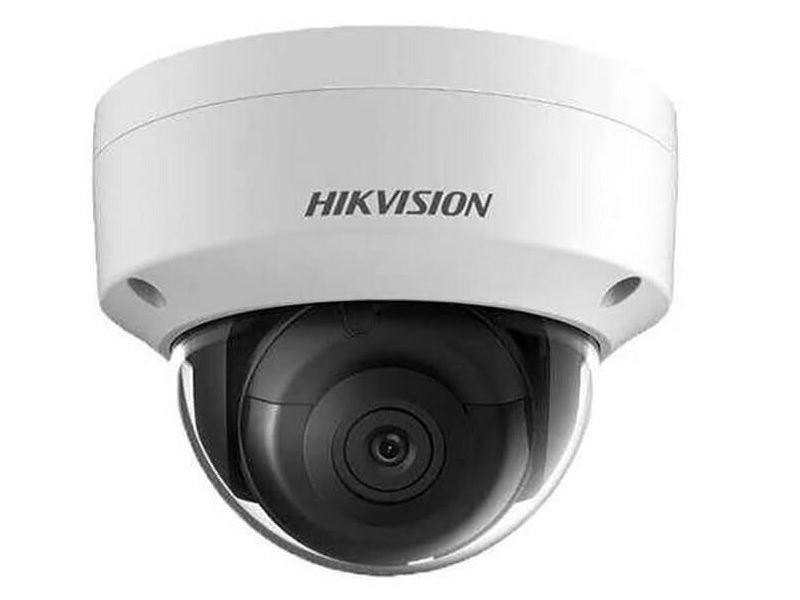

Hikvision 2MP 4mm 30m IR Dome Camera
PRODUCT DETAILS:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials.
Hikvision 2MP 4mm 30m IR Dome Camera
-
Image Sensor: 1/2.8″ Progressive Scan CMOS
-
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Shutter Speed: 1/3 s to 1/100,000 s
-
Slow Shutter: Yes
-
Wide Dynamic Range: 120dB
-
Day & Night: IR Cut Filter
-
Angle Adjustment: Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Hikvision 2MP 4mm 30m IR Dome Camera Lens
-
Focus: Fixed
-
Lens Type: 2.8/4/6/8/12 mm
-
FOV: 2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
-
Aperture: F1.6
-
Lens Mount: M12
Illuminator
Video
-
Max. Resolution: 1920 × 1080
-
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
-
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
-
Third Stream: 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
-
Video Compression: Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
-
Video Bit Rate: 32 Kbps to 16 Mbps
-
H.264 Type: Main Profile/High Profile
-
H.265 Type: Main Profile
-
H.264+: Main stream supports
-
H.265+: Main stream supports
-
Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream separately
Audio
-
Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3
-
Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network
-
Simultaneous Live View: Up to 6 channels
-
API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
-
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
-
User/Host: Up to 32 users,3 levels: Administrator, Operator and User
-
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
-
Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
-
Client: iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
-
Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
-
Day/Night Switch: Day/Night/Auto/Schedule
-
DNR: 3D DNR
-
Image Enhancement: BLC/3D DNR/HLC
-
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
-
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
-
Hardware Reset: Yes
-
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
-
Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
-
Face Detection: Yes
-
Exception Detection: Scene change detection
Hikvision 2MP 4mm 30m IR Dome Camera General
-
Firmware Version: V5.5.80
-
General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
-
Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
-
Power Consumption And Current: 12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W
-
Camera Dimension: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
-
Camera Weight: Camera: 500 g (1.1 lb.).
