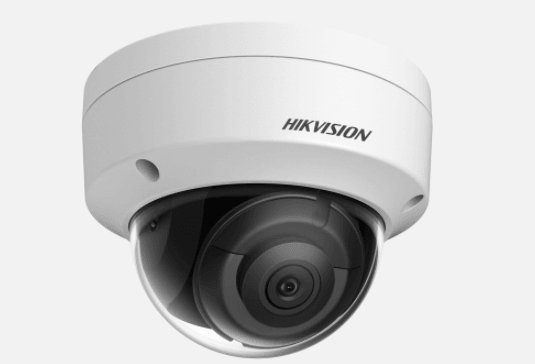

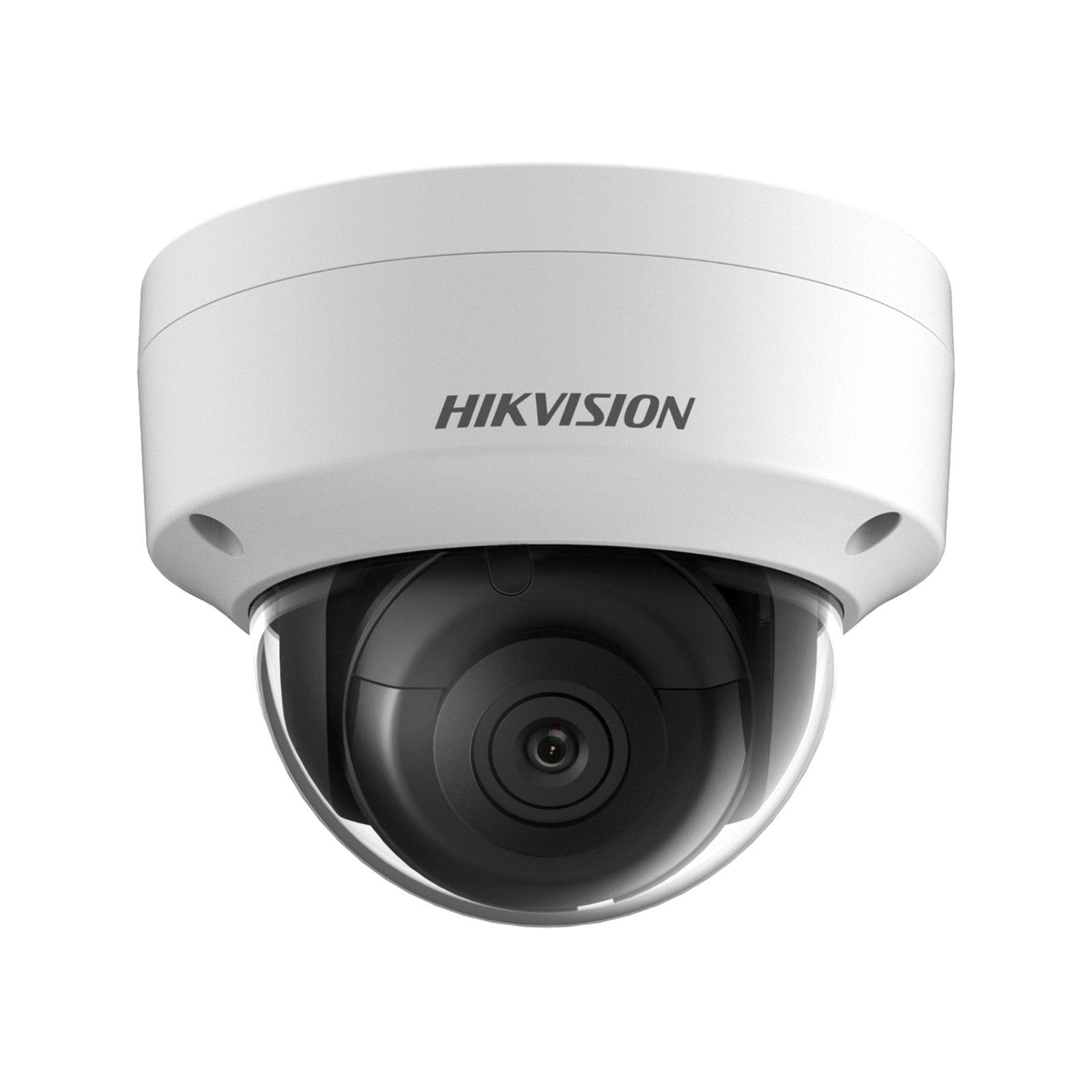

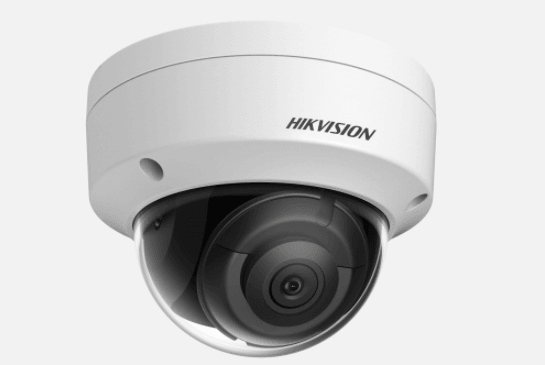

2 MP WDR Fixed Dome Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)
• Support up to 256 GB SD card storage

Technical Specs :

Camera

• Image Sensor1/2.7" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focal Length & FOV

  2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°

  4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

  6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°

• Lens MountM12
• FocusFixed
• ApertureF1.6

Illuminator

• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265//H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)Support 1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0


• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR
• Wide Dynamic Range (WDR)120 dB

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in Micro SD slot, up to 256 GB
• Audio-S: 1 input (line in), 1 output (line out)
• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset KeyYes

Event

• Smart EventLine crossing detection, intrusion detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W

• DimensionØ110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
• Package Dimension135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
• Approx. 497 g (1.1 lb.)
• With Package WeightApprox. 597 g (1.3 lb.)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language

  33 languages :

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
