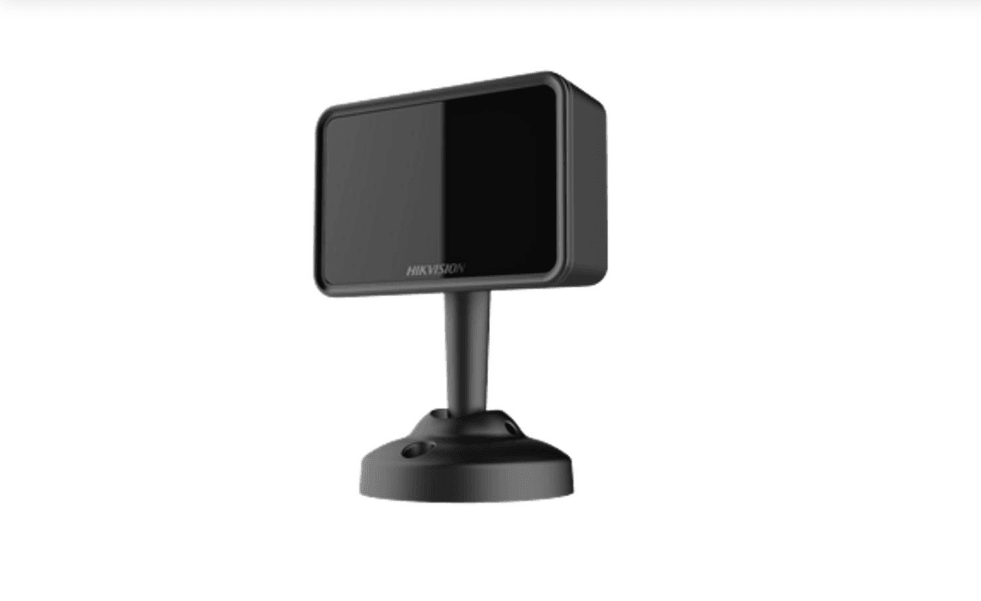

HIKVISION DMS CAMERA 720P AE-VC154T-IT/6MM
- Image SensorProgressive Scan CMOS
- Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/30,000 s
- Case TypeSquare
- P/NNA
- Resolution1280×720
- Day & NightNA
- Lens
- FOV6mm: horizontal: 60, vertical: 52°, diagonal: 28°
- Lens MountM12
- Lens Type6 mm
- Illuminator
- IR Range2 m
- Video
- Frame Rate720P@25 fps
- Audio
- Built-In MicYes
- Built-In SpeakerNo
- Image
- Wide Dynamic Range (WDR)NA
- SNR42 dB
- Interface
- Video Output1-way coaxial HD, conforming to HDTVI
- AudioYes
-
Interface Type
1 Vpp Composite Output (aviation plug or BM4F plug) aviation plug A:1: power, 2: ground, 3: audio, 4: video, aviation plug B:1: video, 2: Audio, 3: power, 4: ground, BM 4F plug: 1:power ,2:ground,3:Video,4:Audio.
- General

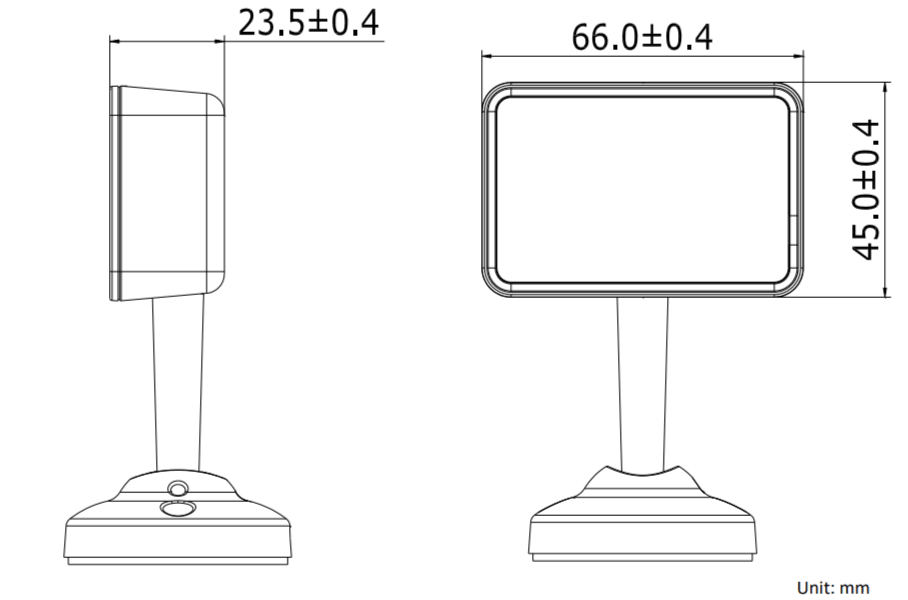

- Product Dimension66 mm x 45 mm x 23.5 mm (2.6" x 1.8" x 0.9")
- ProtectionNA
- Power Supply9 to 16 V DC
- Power ConsumptionMax. 2.5 W
- Camera MaterialMetal
- Startup And Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), humidity 90% or less
- Image SensorProgressive Scan CMOS
- Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/30,000 s
- Case TypeSquare
- P/NNA
- Resolution1280×720
- Day & NightNA
- Lens
- FOV6mm: horizontal: 60, vertical: 52°, diagonal: 28°
- Lens MountM12
- Lens Type6 mm
- Illuminator
- IR Range2 m
- Video
- Frame Rate720P@25 fps
- Audio
- Built-In MicYes
- Built-In SpeakerNo
- Image
- Wide Dynamic Range (WDR)NA
- SNR42 dB
- Interface
- Video Output1-way coaxial HD, conforming to HDTVI
- AudioYes
-
Interface Type
1 Vpp Composite Output (aviation plug or BM4F plug) aviation plug A:1: power, 2: ground, 3: audio, 4: video, aviation plug B:1: video, 2: Audio, 3: power, 4: ground, BM 4F plug: 1:power ,2:ground,3:Video,4:Audio.
- General
- Product Dimension66 mm x 45 mm x 23.5 mm (2.6" x 1.8" x 0.9")
- ProtectionNA
- Power Supply9 to 16 V DC
- Power ConsumptionMax. 2.5 W
- Camera MaterialMetal
- Startup And Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), humidity 90% or less
