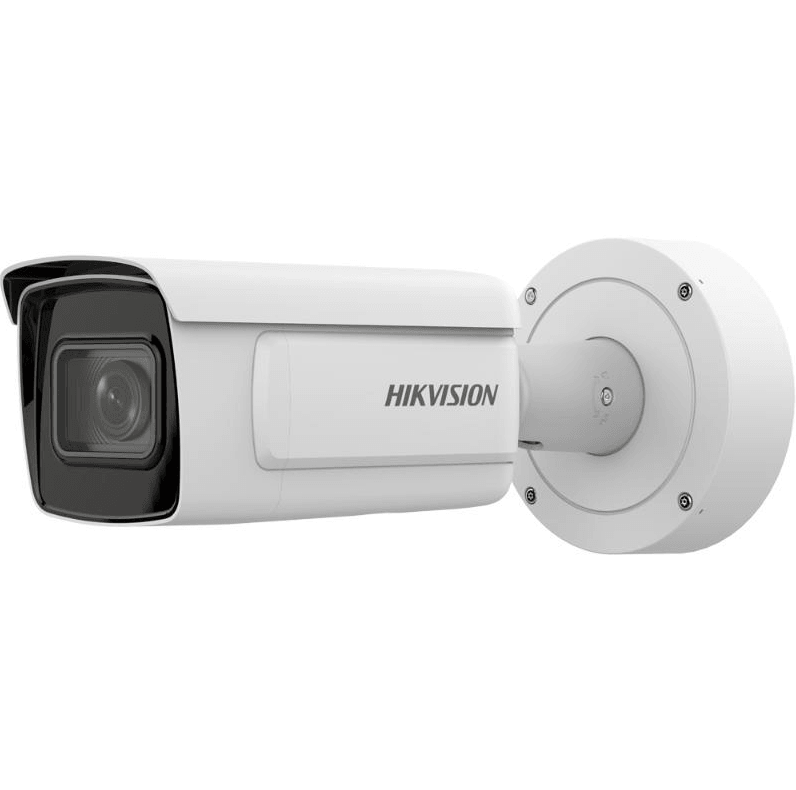

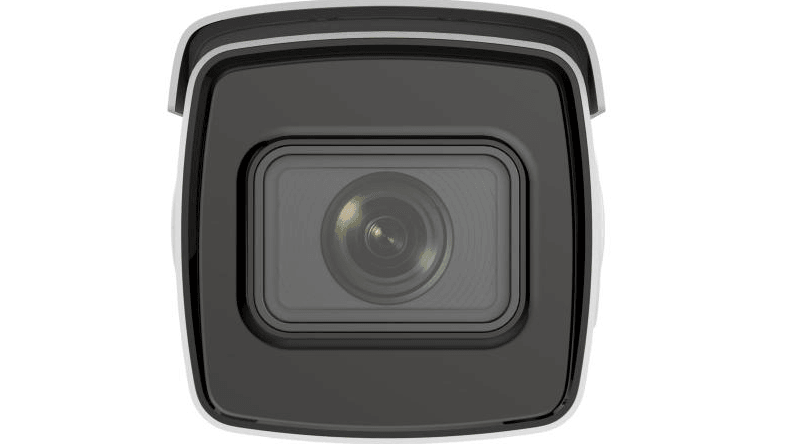

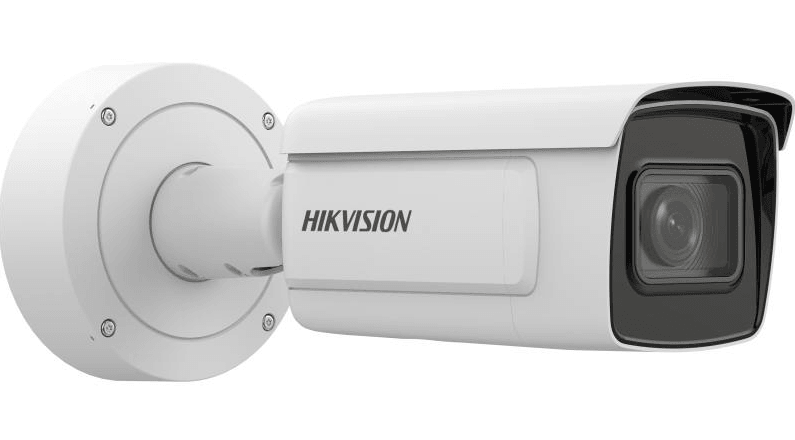

HIKVISION DEEPINVIEW 2MP ANPR DARKFIGHTER CAMERA

HIKVISION DEEPINVIEW 2MP ANPR DARKFIGHTER CAMERA

IDS-2CD7A26G0/P-IZHS2.8-12MM

As a leader in the security industry, Hikvision has consistently prioritized security in all our product development processes. We adhere to the highest standards of security by incorporating various technologies such as terminal security, data security, application security, network security, and privacy protection. All our security measures are in strict accordance with local laws and regulations, effectively safeguarding your devices and data from potential cyber threats.

Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out the mistaken alarm caused by the interference of leafs, lights, animal, flag, etc.

Road Traffic and Vehicle Detection
With embedded deep learning based license plate capture and recognition algorithms, the camera alone can achieve plate capture and recognition. The algorithm enjoys the high recognition accuracy of common plates and complex-structured plates, which is a great step forward comparing to traditional algorithms. Blocklist and allowlist are available for plate categorization and separate alarm triggering

Parking Management
With embedded deep learning algorithms, the camera can achieve parking space status detection and vacant parking space alarm for parking management. Both distant view mode and close view mode are supported. For the close view mode, the camera can also achieve license plate recognition. Blocklist and allowlist are available for plate categorization and separate alarm triggering.

FEATURES:

• High quality imaging with 2 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• License Plate Recognition
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

SPECS:

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution 1920 × 1080
• Min. Illumination

  Color: 0.0005 Lux @ (F1.2, AGC ON);

  B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Lens
• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

  8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

• FocusAuto,Semi-auto,Manual
• Iris TypeP-iris
• Aperture

  2.8 to 12 mm: F1.2 to F2.5

  8 to 32 mm: F1.7 to F1.73

• DORI
• DORI

  Wide:

  2.8 to 12 mm: D (Detect): 45 m, O (Observe): 17.9 m, R (Recognize): 9 m, I (Identify): 4.5 m

  8 to 32 mm: D (Detect): 112.7 m, O (Observe): 44.8 m, R (Recognize): 22.6 m, I (Identify): 11.3 m

  Tele:

  2.8 to 12 mm: D (Detect): 111.8 m, O (Observe): 44.3 m, R (Recognize): 22.4 m, I (Identify): 11.2 m

  8 to 32 mm: D (Detect): 300 m, O (Observe): 119.0 m, R (Recognize): 60 m, I (Identify): 30 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  2.8 to 12 mm: 50 m

  8 to 32 mm: 100 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Fifth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes
• E-PTZSupport Patrol and Auto Tracking settings

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
• Wide Dynamic Range (WDR)140 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Image StabilizationEIS
• Privacy Mask8 programmable polygon privacy masks

• Interface
• Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power OutputWith -Y: 12 VDC, max. 100 mA
• Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
• Smart Eventscene change detection,audio exception detection,defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Support combined event alarm triggering

• Road Traffic And Vehicle Detection

  Smart Function:

  Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

  Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.

  Support vehicle and non-vehicle counting

  Blocklist and allowlist: up to 10,000 records

  LPR Countries/Regions:

  4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

  Accuracy (Under recommended installation and lighting conditions):

  License plate recognition rate ≥98%

  Capture rate ≥99%

  Driving direction accuracy rate ≥98%

  Vehicle Capture Speed:

  Front installation in checkpoint scenario: up to 120 km/h

  Side installation: up to 80 km/h

  Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

• MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
• Parking Management

  Support distant view mode and close view mode

  Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

  Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

• General
• Power

  12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

  PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

• MaterialAluminum alloy body
• Dimension

  Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\")

  With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"

• Package Dimension405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
• WeightApprox. 1950 g (4.2 lb.)
• With Package WeightApprox. 3070 g (6.7 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
• HeaterYes
• Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
• Automotive And RailwayEN50121-4
• OtherPVC FREE
