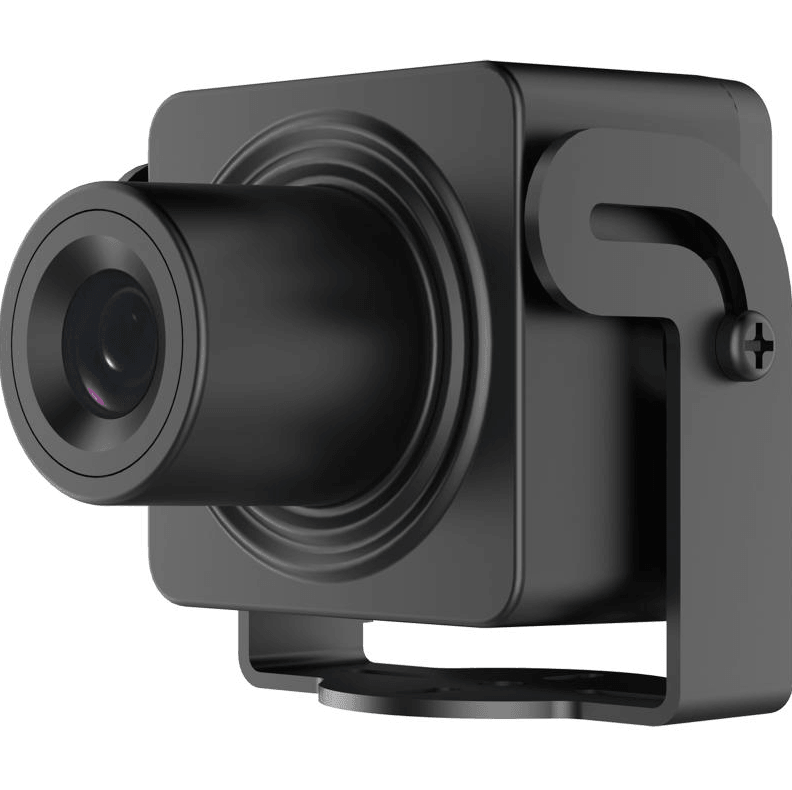

HIKVISION COVERT NETWORK CAMERA 2.8MM
DS-2CD2D25G1-M-D-NF-2.8MM
Capture High-Resolution Footage with HIKVISION Covert Network Camera 2.8MM: Experience superior imaging with 2 MP resolution and WDR technology for clear visuals in any lighting. Save bandwidth and storage with H.265+ compression and enjoy crisp, noise-free footage with 3D DNR technology.
FEATURES:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Lens
-
Focal Length & FOV
2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°
4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
- Lens Mount M12
- Iris Type Fixed
-
Aperture
2.8 mm: F2.0
4 mm: F2.0
- DORI
-
DORI
2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m
4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
- Video
-
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 720)
60 Hz: 60 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
-
Third Stream
50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
-
Video Compression
Mainstream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bitrate Control CVR/BVR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)Support 1 fixed region for main stream
- Audio
- Audio Type Mono
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate 8khz/16kHz/32 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View Up to 15 channels
- API Open Network Video Interface, ISAPI, SDK, ISUP 5.0
-
User/Host
Up to 32 users
3 level: administrator, operator, and user
- Network Storage NAS (NFS, SMB/CIFS)
- Client iVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch Yes
- Image Settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image Enhancement BLC, HLC, defog, 3D DNR
- Privacy Mask Yes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Audio1 input (line in)
- Reset Key Yes
- Event
- Basic Event Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconnected), video quality diagnosis
-
Smart Event
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- General
- Power12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
- Dimension31.5 mm × 31.5 mm × 49.6 mm (1.2" × 1.2" × 2")
- Package Dimension130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
- WeightApprox. 93 g (0.2 lb.)
- With Package WeightApprox. 202 g (0.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
-
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
HIKVISION COVERT NETWORK CAMERA 2.8MM
DS-2CD2D25G1-M-D-NF-2.8MM
Capture High-Resolution Footage with HIKVISION Covert Network Camera 2.8MM: Experience superior imaging with 2 MP resolution and WDR technology for clear visuals in any lighting. Save bandwidth and storage with H.265+ compression and enjoy crisp, noise-free footage with 3D DNR technology.
FEATURES:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
SPECS:
- Camera
- Image Sensor 1/2.8" Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Lens
-
Focal Length & FOV
2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°
4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
- Lens Mount M12
- Iris Type Fixed
-
Aperture
2.8 mm: F2.0
4 mm: F2.0
- DORI
-
DORI
2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m
4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
- Video
-
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 720)
60 Hz: 60 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
-
Third Stream
50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
-
Video Compression
Mainstream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bitrate Control CVR/BVR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)Support 1 fixed region for main stream
- Audio
- Audio Type Mono
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate 8khz/16kHz/32 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View Up to 15 channels
- API Open Network Video Interface, ISAPI, SDK, ISUP 5.0
-
User/Host
Up to 32 users
3 level: administrator, operator, and user
- Network Storage NAS (NFS, SMB/CIFS)
- Client iVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch Yes
- Image Settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image Enhancement BLC, HLC, defog, 3D DNR
- Privacy Mask Yes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Audio1 input (line in)
- Reset Key Yes
- Event
- Basic Event Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconnected), video quality diagnosis
-
Smart Event
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- General
- Power12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
- Dimension31.5 mm × 31.5 mm × 49.6 mm (1.2" × 1.2" × 2")
- Package Dimension130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
- WeightApprox. 93 g (0.2 lb.)
- With Package WeightApprox. 202 g (0.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Approval
-
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
-
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
