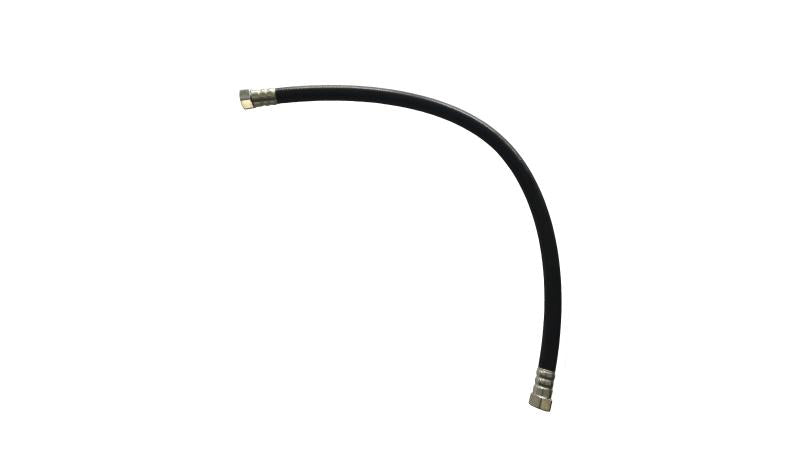

Hikvision DS-1677ZJ-XS-1.0(D) Explosion-Proof Flexible Conduit
The Hikvision DS-1677ZJ-XS-1.0(D) is an explosion-proof flexible conduit designed to provide reliable cable protection in demanding and hazardous environments. Constructed from NBR, braided steel wire, and carbon steel, it provides a robust and flexible solution for protecting cables used with compatible Hikvision explosion-proof and anti-corrosion surveillance equipment.
With an IP68 ingress protection rating and a wide operating temperature range of -40°C to +80°C, this flexible conduit is designed for reliable performance in harsh environmental conditions. It features G-3/4 conduit threads and a 1000mm length for flexible equipment installation.
Key Features
-
Explosion-Proof Flexible Conduit – Designed for cable protection in explosive environments.
-
Durable Construction – Made from NBR, braided steel wire, and carbon steel.
-
IP68 Protection – Provides high-level protection against dust and water ingress.
-
Flexible Design – Allows cables to be routed and protected while accommodating equipment movement and installation requirements.
-
G-3/4 Thread – Features G-3/4 conduit connections at the ends.
-
Wide Operating Temperature Range – Suitable for demanding hot and cold environments.
Technical Specifications
-
Model: DS-1677ZJ-XS-1.0(D)
-
Type: Explosion-Proof Flexible Conduit
-
Material: NBR, Braided Steel Wire, Carbon Steel
-
Diameter: Ø25 mm
-
Length: 1000 mm
-
Conduit Thread: G-3/4
-
Ingress Protection: IP68
-
Weight: Approx. 0.7 kg
-
Operating Temperature: -40°C to +80°C
-
Operating Humidity: 95% RH or less, non-condensing
Applications
- Explosion-proof CCTV installations
- Hazardous and industrial environments
- Oil and gas facilities
- Industrial plants and processing facilities
- Protection of cables for compatible Hikvision explosion-proof cameras
- Outdoor surveillance installations requiring robust cable protection
The Hikvision DS-1677ZJ-XS-1.0(D) provides a rugged and flexible cable protection solution for compatible explosion-proof surveillance installations, combining durable construction with IP68 protection and reliable performance in harsh environments.
