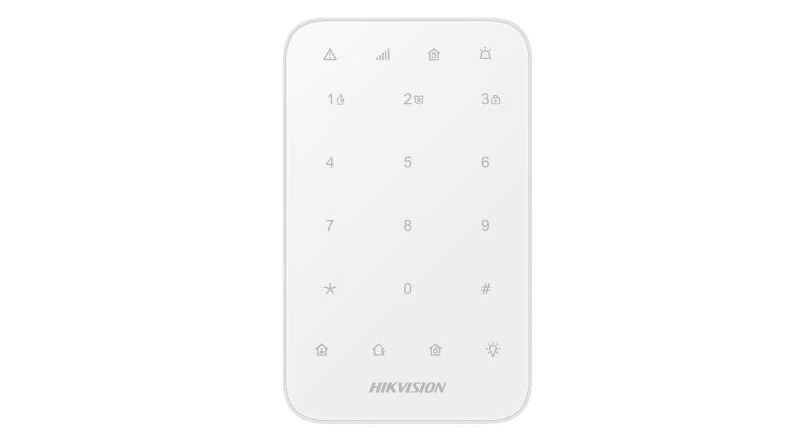

HIKVISION AX PRO WIRELESS ALARM KEYPAD
DS-PK1-E-WE
The HIKVISION AX PRO WIRELESS ALARM KEYPAD offers 868 MHz two-way wireless communication, AES-128 encryption, and the ability to stay/away arm, disarm, and clear alarms for specified areas or all areas. With a full touch key design and LED backlight, it also features one-push fire, panic, and medical alarms, as well as selectable silent/audible alarms.
The keypad is fully remote configurable through an app and has multiple enrollment methods for easy installation. Plus, its frequency hopping technology ensures reliable transmission and protection against jamming.
FEATURES:
- 868 MHz two-way wireless communication
-
AES-128 encryption
-
Stay/away arming, disarming, alarm clearing for specified area or all areas
-
LED indicates the programmed area
-
One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
-
Output control
-
Full touch key design with LED backlight
-
Fully remote configurable through App
-
Multiple enrollment methods and easy installation design
-
Easy replaceable battery
-
Frequency hopping against jamming for reliable transmission
SPECS:
- Electrical characteristics
-
Battery typeFour AA batteries
-
Power supplyBattery Supply
-
Operation humidity10% to 90% (No condensing)
-
Operation temperature-10 °C to +55 °C (-4 °F to +122 °F)
-
Battery life spanUp to 2 years (standby time)
- Wireless transmission
-
RF frequency868 MHz
-
RF modulation2GFSK
-
RF distance1200m (open area
- General
-
Installation methodScrew mounting
-
Dimension(WxHxD)140 (5.50") x 86 (3.38") x 22 (0.87") mm
-
Weight151 g (5.33 oz) without battery
