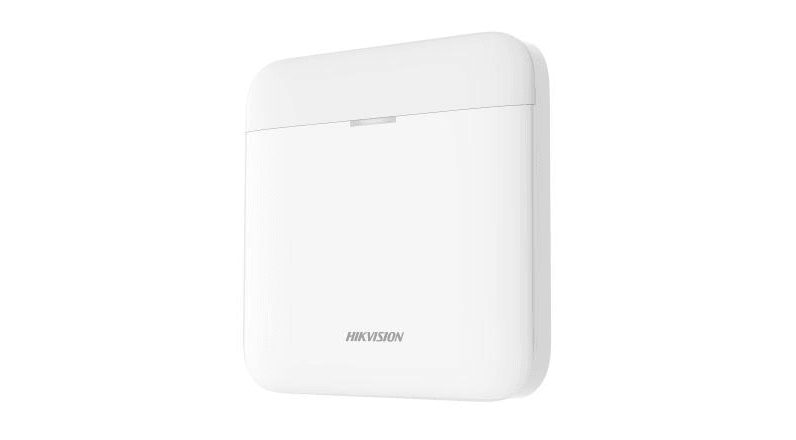

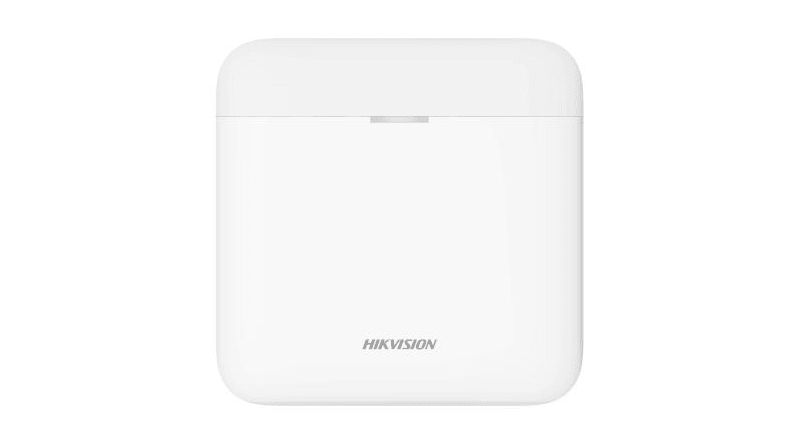

HIKVISION AX PRO REPEATER
DS-PR1-WE
Extend the RF distance of your alarm system with the HIKVISION AX PRO REPEATER. This wireless repeater supports 868 Mhz wireless communication, Tri-X and Cam-X wireless protocol, and offers multiple enrollment methods for easy setup. With two-way wireless communication and auto-pairing, it ensures reliable and efficient performance.
FEATURES:
- 868MHz two-way wireless communication
-
Two-way communication, stable and secure
-
LED display, show the differernt feedbacks with easy understanding
-
Up to 35 hrs battery backup after mains lost, no worry about communication
-
Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
-
Easy installation with new designed structure
SPECS:
- Software features
-
Auto paringSupported
- Hardware features
-
Serial port2, for debug
-
Tamper-Proof1, front and back
-
Power switch1
- Electrical characteristics
-
Battery typeBuilt in Battery Li
-
Power supply100 VAC to 240 VAC
-
Operation humidity10% to 90%
-
Operation temperature﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
-
Battery life spanUp to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
-
RF frequency868 MHz
-
RF methodTwo-way communication
-
RF modulation2GFSK
-
RF distance1600 m (open area)
-
Wireless securityAES-128
- Display
-
LEDs status3, register/signal (green/red), power (green), fault (amber)
- General
-
Installation methodWall mounting
-
Dimension(WxHxD)150 mm × 150 mm × 25 mm
-
Shell materialPlastic
-
ColorWhite
-
Weight372 g
- Device management
-
PIRCAM paringSupported
