HIKVISION AX PRO KIT 868MHZ

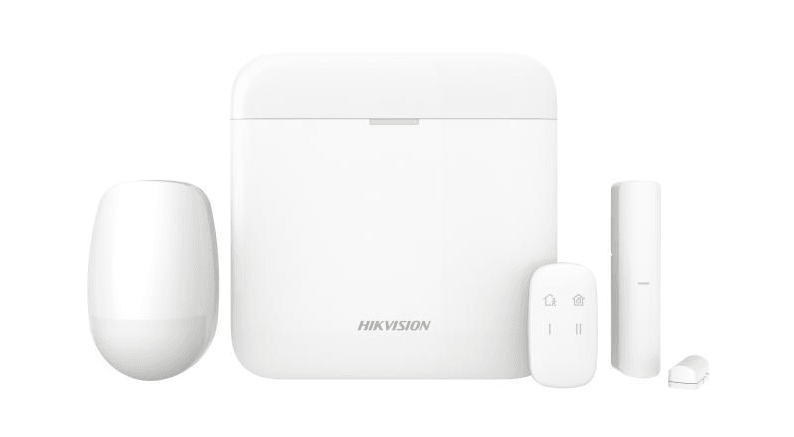

The HIKVISION AX PRO KIT 868MHZ allows for modular customization, giving you the option to add extra components as needed. The standard kit comes with a control panel, several door and window contacts, a motion detector, and a key fob. Additionally, you have the flexibility to include smoke and carbon monoxide detectors, as well as water sensors, for added security.
SPECS:
- Software features
- Tag 32
- Area 16
- Zones 64 (up to 48 PIRCAMs)
- Installer 1
-
User30
-
Admin1
- Voice Prompt Supported
- Loudspeaker built in Supported
- Memory Log stored 5000
-
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
-
Firmware upgrade APP/Web Portal
-
Arm modesAway/Stay
- Automatic Arm/Disarm Timers Supported
- Forced Arming with Open Zones Supported
- Diagnostics via the APP or Web Supported
-
ARC protocol
SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
Supports video verification and remote control
- User APP for operating Supported
- Installer APP for programming Supported
-
Web server for maintenance (offline configuration)Supported
- Hardware features
- RS232 output Supported
- SIM slot Single
- RF transmission
- RF Frequency 868Mhz
-
Wireless Security Frequency Hoping 128 AES Encryption
- GPRS on board Supported
- Electrical characteristics
-
Power supply Built in power supply
-
Battery type Built in on board Battery Li
-
Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- Wired network Supported
- Wi-Fi Standard Supported
- Display
-
LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
-
Operation temperature-10 °C to +55 °C
- Shell material Plastic
-
Dimension(WxHxD)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
-
Weight557.5 g(19.7 oz)
- Color White
- Device management
- Key Fob 32
-
Wireless sounder4 (2 internal+2 External)
- Keypad 8 (Including Tag reader)
- Wireless Repeater 2
- Multi Transmitter 4
- PIR Cam Supported
