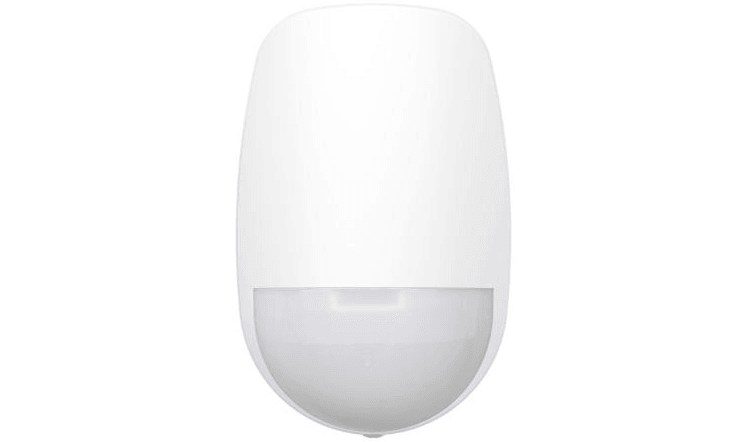

HIKVISION AX PRO INDOOR WIRELESS PIR DETECTOR
DS-PDD12P-EG2-WE
The DS-PDD12P-EG2-WE is a cutting-edge, wireless detector with motion and microwave detection capabilities, as well as tamper protection, low battery alerts, and supervision. It runs on two in-built batteries that have a lifespan of up to 5 years. This detector covers a 12m radius and can distinguish humans from animals, ensuring reliable monitoring.
FEATURES:
- 3D optics including creep-zone protection, full coverage without dead angle
-
24G microwave to prevent wall penetration
-
Digital temperature compensation
-
Fully remote configurable through APP
-
Multiple enrollment method and easy installation design
-
Easy replaceable battery with PCB protected
-
Frequency hopping against jamming for reliable transmission
SPECS:
- Detection Performance
-
Detection MethodPassive Infrared;Microwave
-
Detection Range12m
-
Detection Angle85.9°
-
Detection Zones52
-
Detectable Speed0.3~2m/s
-
SensitivityHigh;Auto;Pet
-
Pet Immunity30Kg
-
White Light Filter6500lux
-
Microwave Frequency24GHz(24.15~24.25GHz)
-
Digital Temperature CompensationSupport
-
Creep Zone ProtectionSupport
- Feature
-
Digital ProcessingSupport
-
Sealed OpticsSupport
-
Tamper ProtectionFront;Rear
-
Environment Temperature IndicatorSupport
-
Signal Strength IndicatorSupport
- Interface
-
Power SwitchPower Up Enrolling
-
LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)
- Transmission
-
Transmission TechnologyTri-X Wireless
-
Transmission MethodTwo-Way RF Wireless
-
Transmission Frequency868MHz
-
Transmission SecurityAES-128 Encryption
-
Transmission Range(Free Space)1.6Km
-
Frequency HoppingSupport
-
Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
-
Standard Battery LifeUp to 5 years (standby time)
-
Power SupplyBattery Powered
-
Battery TypeCR123A × 2
-
Typical Voltage3V
- General
-
Operation Temperature-10°C to 55°C (14 °F to 131 °F)
-
Storage Temperature-20°C to 60°C (-4 °F to 140 °F)
-
Operation Humidity10% to 90%
-
Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
-
Weight141 g
-
Mounting Height1.8 m to 2.4 m
-
Mounting MethodWall
-
Application ScenarioIndoor
-
BracketOptional Wall & Ceiling Accessory
