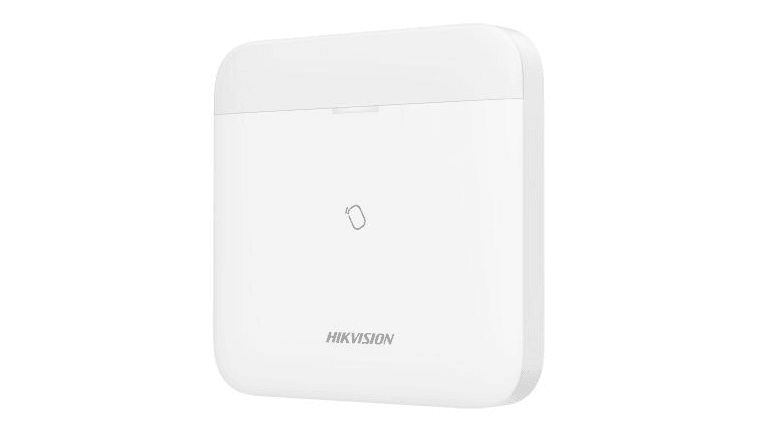

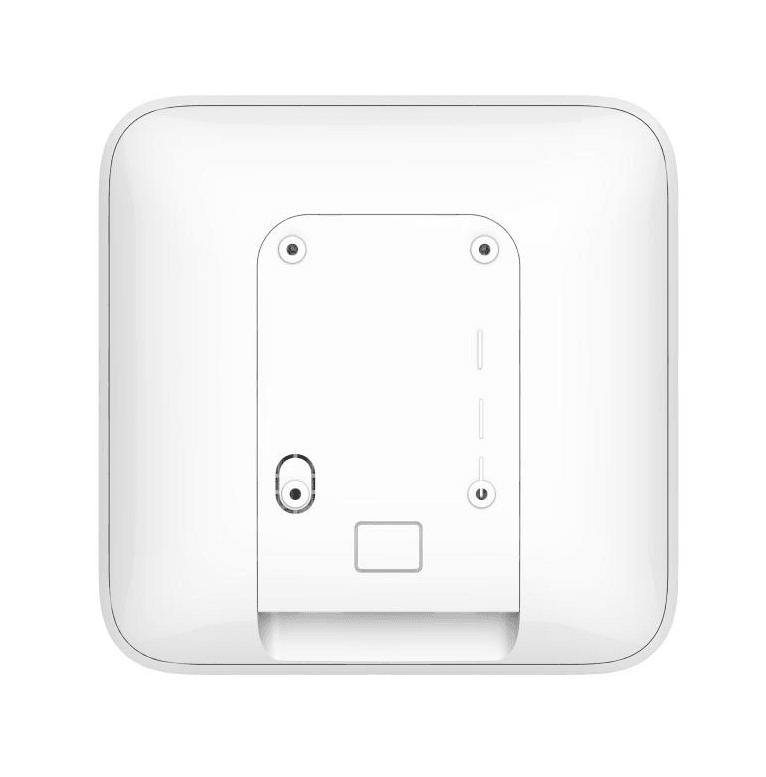

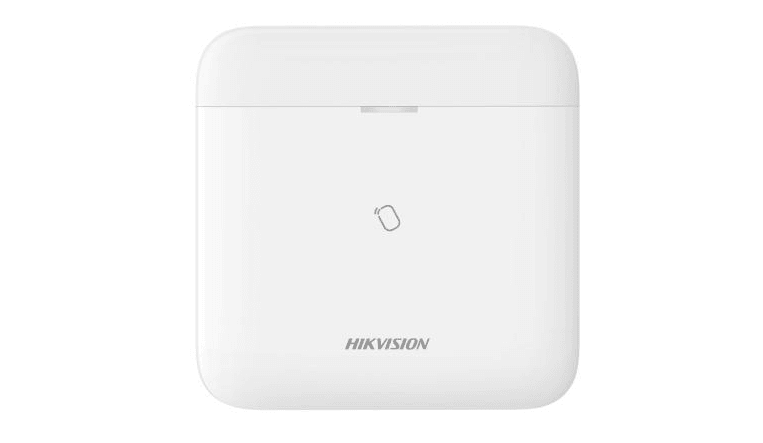

HIKVISION AX PRO ALARM CONTROL PANEL
The HIKVISION AX PRO ALARM CONTROL PANEL utilizes the latest wireless protocol, Tri-X/Cam-X, for superior communication with TCP/IP, Wi-Fi, and 3/4G networks. With AES-128 encryption, two-way communication, and a long RF transmission distance, this cutting-edge system can connect up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal and 3 external), 8 tag readers, and keypads. It also supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users, and can be configured through a variety of platforms, including Web and mobile clients, as well as the Convergence Cloud Hik-Connect and Hik-ProConnect. You'll receive alarm notifications through messages or phone calls, and can even view live videos and alarm clips through the Hik-Connect app.
FEATURES:
- TCP/IP, Wi-Fi, and 3/4G network
-
New generation wireless protocol: Tri-X/Cam-X
-
Long RF transmission distance
-
Two-way communication with AES-128 encryption
-
Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers and keypads
-
Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
-
Voice prompt
-
Configuration via Web client, mobile client, and Convergence Cloud
-
Hik-Connect and Hik-ProConnect configuration depends on the user access level
-
Pushes alarm notification via messages or phone calls
-
Views live videos from Hik-Connect
-
Alarm video clips via emails and APP
-
Supports LED indicator to indicates system status
-
4520 mAh lithium backup battery
-
SIA-DC09 protocol, and supports both Contact ID and SIA data format
-
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
SPECS;
- Software features
- Diagnostics via the APP or Web Supported
- Installer 1
- Installer APP for programming Supported
- Onboard video clips 4
-
Web server for maintenance (offline configuration)Supported
- WIFI standard Supported
-
Arm modesAway/Stay
-
Firmware upgrade APP/Web Portal
-
Admin1
- Wired network Supported
-
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Forced arming with open zones Supported
- Memory log stored 5000
- User 46
- User APP for operating Supported
- Voice prompt Supported
- Area 32
- Automatic arm/disarm timers Supported
- Hardware features
- RS232 output Supported
- SIM slot Dual
- 3/4G on board Supported
- Tag reader built in Supported
- Loudspeaker built in Supported
- Electrical characteristics
-
Battery type Built in on board Battery Li
-
Power supply Built in power supply
-
Operation temperature-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
-
Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
-
RF frequency 868 Mhz
- RF method Support
-
Wireless security Frequency Hoping 128 AES Encryption
- Display
-
LEDs status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
-
Dimension(WxHxD)170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
- Shell material Plastic
- Color White
-
Weight557.5 g (19.7 oz)
- Device management
-
Tag48
- PIR cam Supported
-
Zones96 (up to 48 PIRCAMs)
-
Keypad8 (including tag reader)
-
Wireless sounder6 (3 internal+3 external)
-
Wireless repeater4
-
Keyfob48
-
Multi Transmitter6
- Report method
-
ARC protocol
SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
Supports video verification and remote control
