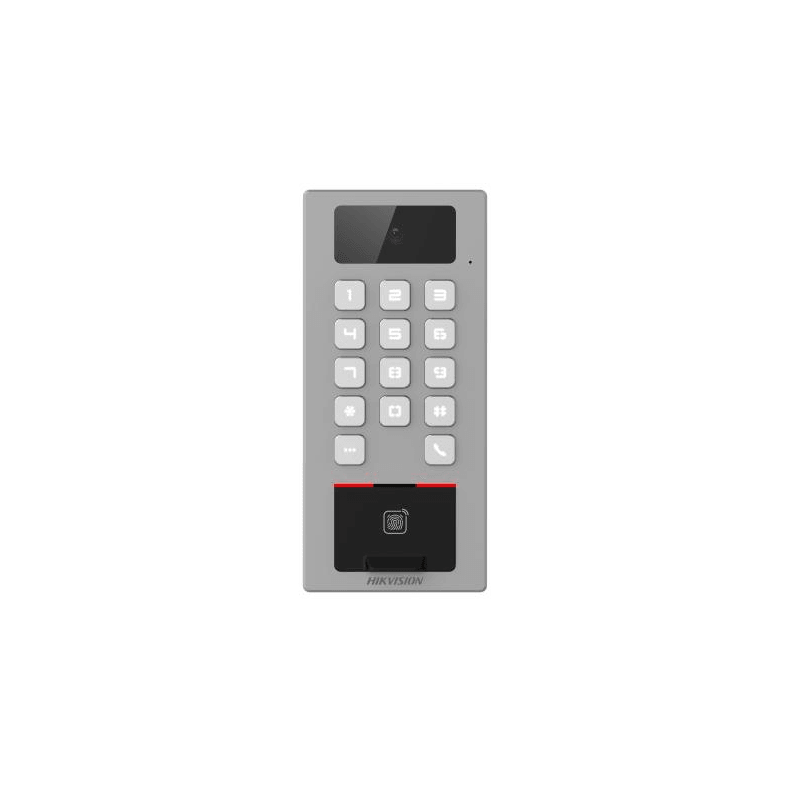

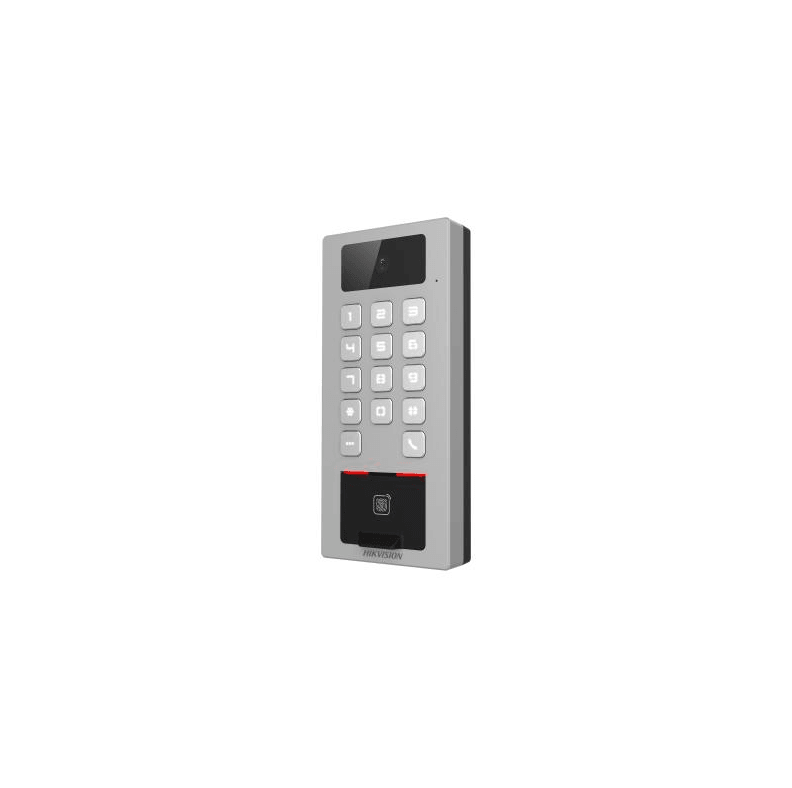

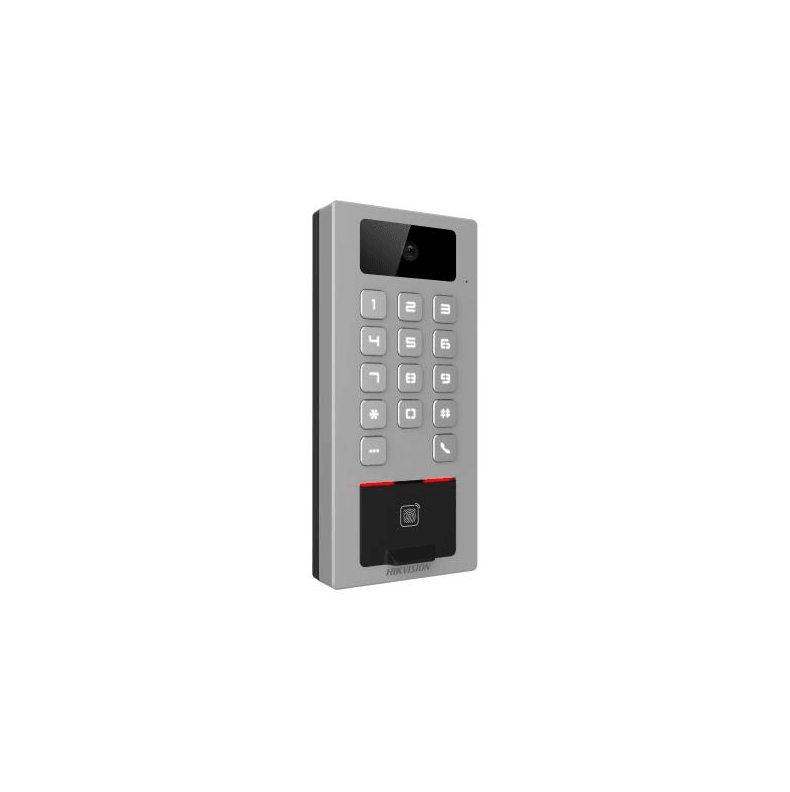

HIKVISION ACCESS CONTROL TERMINAL
HIKVISION ACCESS CONTROL TERMINAL
Easily manage access control and intercom functions with just one device featuring IP65 & IK09 protections for increased stability using zinc alloy materials. Multiple authentication options including card, fingerprint, and PIN are supported, while remote control is available through the Hik-Connect mobile app.
Connect to external access controllers via Wiegand protocol and utilize video intercom through SIP protocol with supported servers such as Brekeke, miniSipServer, FreePBX, and more. RS-485 communication allows for connection to external card readers and elevator calls, and the AP mode supports calling various objects such as a management center or an indoor station with the press of a button.
With a whopping 256 GB SD card memory, there's no need to worry about storage. Plus, take advantage of PIN settings under both platform and local modes, as well as the option to prioritize wired or wireless networks. Experience it all with the HIKVISION ACCESS CONTROL TERMINAL.
FEATURES:
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, fingerprint, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
SPECS:
- System
- Operating System Linux
- Video
- Lens 1
- Video Compression Standard H.264 and H.265
- Resolution 2MP
- FOVHFOV = 110°; VFOV = 81°; DFOV = 122°
- Video Standard PAL (Default) and NTSC
- Network
- Wired Network 10 M/100 M self-adaptive
- Wi-FiSupport
- Interface
- Network Interface 1
- Lock Control 1
- Exit Button 1
- Door Contact Input 1
- Alarm Input 1
- Alarm Output 1
- TAMPER 1
- RS-4851
- Wiegand 1 (output)
- SD Card Slot 1
- Capacity
- Fingerprint Capacity 10,000
- Card Capacity 100,000
- Event Capacity 300,000
- Authentication
- Fingerprint Module Capacitive fingerprint recognition
- Card TypeM1 card;DESfire card
- Card Reading Distance0 ~ 3 cm
- General
- Power Supply 1a (12 VDC to 24 VDC)
- Power Consumption≤12 W
- Working Temperature-40 °C to +70 °C (-40 °F to +158 °F)
- Protective LevelIK09, IP65
- Language Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
- Function
- Two-Way Audio Support
- Video Intercom Support
- Hik-ConnectSupport
