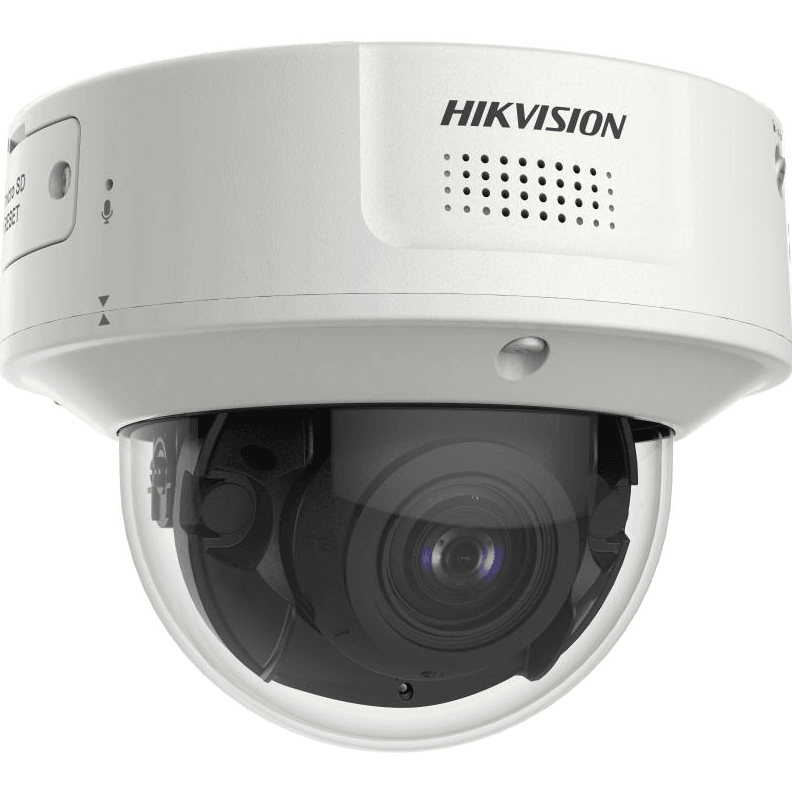

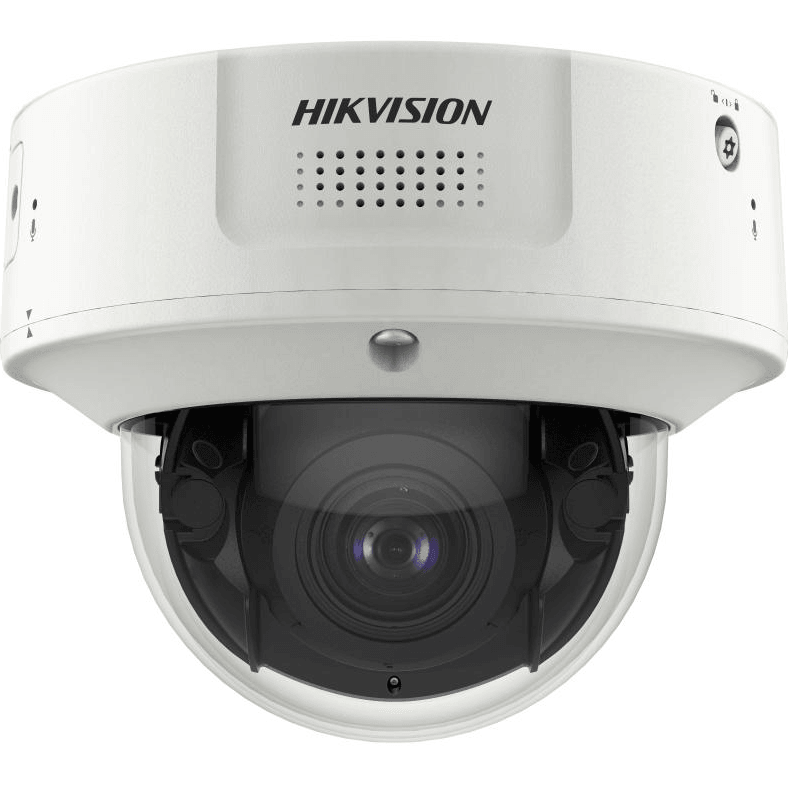

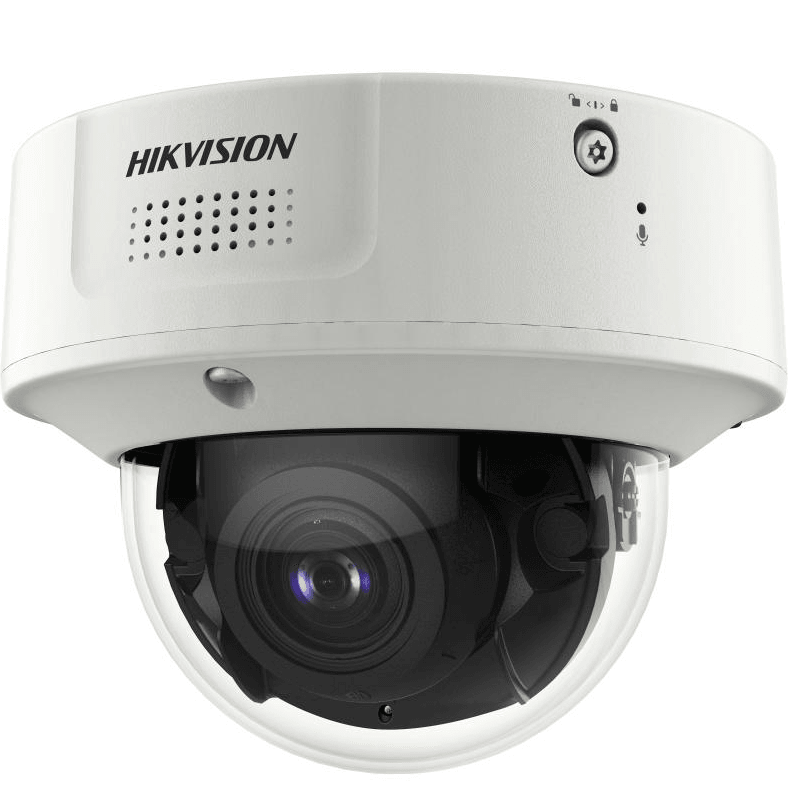

HIKVISION 8MP DEEPINVIEW MOTO VARIFOCAL DOME


HIKVISION 8MP DEEPINVIEW MOTO VARIFOCAL DOME

R 16,815.00
Unit price  per
history

Safe & Secure Payment Options

HIKVISION 8MP DEEPINVIEW MOTO VARIFOCAL DOME

From its inception, Hikvision has demonstrated a relentless commitment to security through product development. Our rigorous adherence to security by design is reflected in our implementation of diverse security technologies throughout our product development lifecycle, encompassing terminal, data, application, network, and privacy protection.

Our utilization of these security measures not only complies with applicable local laws and safety regulations, but also fortifies the cyber security of our products, safeguarding your devices and data from malicious attacks.

Face Capture
With embedded deep learning based algorithms, the camera is able to give the best shot of a target face through detecting,
capturing, grading and selecting. The camera uses face exposure function to dynamically adjust face area exposure of
captures and ensures high face picture quality

Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out the mistaken alarm caused by the interference of leafs, lights, animal, flag, etc.

Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face, human body, vehicle in the specified region.

Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. It can generate reports to compare the efficiency of different queuing-ups and display the changing status of one queue, and supports raw data export for further analysis

Regional People Counting
With the embedded deep learning algorithms, the camera supports people density detection and will upload detection data through scheduled uploading, number of people change uploading and congestion level uploading. It also supports number
of people exception detection and waiting time exception detection.

On/Off Duty Detection
With the embedded deep learning algorithms, the camera supports absence detection and on/off duty detection. It can detect the on/off duty status and people number changes in a predefined area.

Heat Map
The camera can generate a graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area

Multi-Dimension People Counting
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and compares them with the built-in face picture library to remove duplicates. It counts persons and reports an alarm simultaneously to achieve both the entrance control and people counting.

Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and reports an alarm if not.

FEATURES:

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)

SPECS:

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lens
  • Focal Length & FOV

    2.8 to 12 mm, horizontal FOV 98.0° to 38.1°, vertical FOV 51.4° to 21.6°, diagonal FOV 118.0° to 44°

    8 to 32 mm, horizontal FOV 37.0° to 15.0°, vertical FOV 21.0° to 9.0°, diagonal FOV 43.0° to 17.0°

  • FocusAuto,Semi-auto,Manual
  • Iris TypeP-iris
  • Aperture2.8 to 12 mm: F1.2 to F2.5, 8 to 32 mm: F1.7 to F1.73
  • DORI
  • DORI

    Wide:

    2.8 to 12 mm: D (Detect): 89.2 m, O (Observe): 35.4 m, R (Recognize): 17.8 m, I (Identify): 8.9 m

    8 to 32 mm: D (Detect): 218.0 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m

    Tele:

    2.8 to 12 mm: D (Detect): 220.0 m, O (Observe): 87.3 m, R (Recognize): 44.0 m, I (Identify): 22.0 m

    8 to 32 mm: D (Detect): 580.0 m, O (Observe): 230.2 m, R (Recognize): 116.0 m, I (Identify): 58.0 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • AI Open Platform
  • Model Specification

    Up to 4 models,

    Model type: detection model, classification model, mixed model (detection model and classification model)

  • Video
  • Main Stream

    50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Fourth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Fifth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

    Fifth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • Privacy Mask8 programmable polygon privacy masks
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Image StabilizationEIS
  • Interface
  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Built-In MicrophoneYes, 2 built-in microphones
  • Built-In SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
  • Audio

    1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

  • Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power Output12 VDC, max. 100 mA
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
  • Smart Eventscene change detection,audio exception detection,defocus detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Multi-Target-Type Detection

    Supports simultaneous detection and capture of human body, face, and vehicle,

    Gets 7 face features,

    Gets 13 human body features,

    Gets 2 vehicle features,

    Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

    Supports dynamic mosaic mask

  • Face Capture

    Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

    Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

    Uploads face with background and closed-up face pictures,

    Supports best shot and quick shot for capture mode,

    Supports dynamic mosaic mask,

    Gets 7 face features

  • Face Comparison

    Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

    Supports face library encryption

  • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

    Support combined event alarm triggering

  • People Counting

    Supports Multi-Dimension People Counting,

    Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

    Supports real-time uploading and uploading by statistic cycle,

    Supports generating daily, weekly, monthly or annually reports,

    Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

    Supports face feature deduplication,

    Supports people flow data replenishment

  • Queue Management

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: regional people queuing-up, waiting time detection

    Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

    Supports raw data export for further analysis

    Supports real-time data uploading and scheduled data uploading

    Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

  • Heat Map

    A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

    Two report types are available, space heat map and time heat map line chart.

  • Hard Hat Detection

    Detects up to 30 human targets simultaneously

    Supports up to 4 shield regions

  • Regional People Counting

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

    Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

    Supports searching real-time number of people

    People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

    Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

    Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

  • On/Off Duty Detection

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: absence detection, on/off duty detection

    Supports parameter settings: person on duty, absence duration

  • General
  • Power

    12 VDC ± 25%, 0.97 A, max. 11.43 W,three-core terminal block,reverse polarity protection,

    24 VAC +24.9%/-25%, 0.73 A, max. 10.67 W,

    PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.19 A to 0.28 A, max. 11.92 W

  • MaterialBase: metal, cover: metal
  • DimensionØ144.3 mm × 114.1 mm (Ø5.7" × 4.5")
  • Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • WeightApprox. 990 g (2.0 lb.)
  • With Package WeightApprox. 1425 g (3.1 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions

    With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),

    Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,one-key reset,mirror,password protection
  • Cable Length0.25 m (0.8 ft.)
  • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Approval
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013;IK10: IEC 62262:2002
  • Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
  • CCCommon Criteria, Assurance Level: EAL2 + ALC_FLR.2
  • OtherPVC FREE
