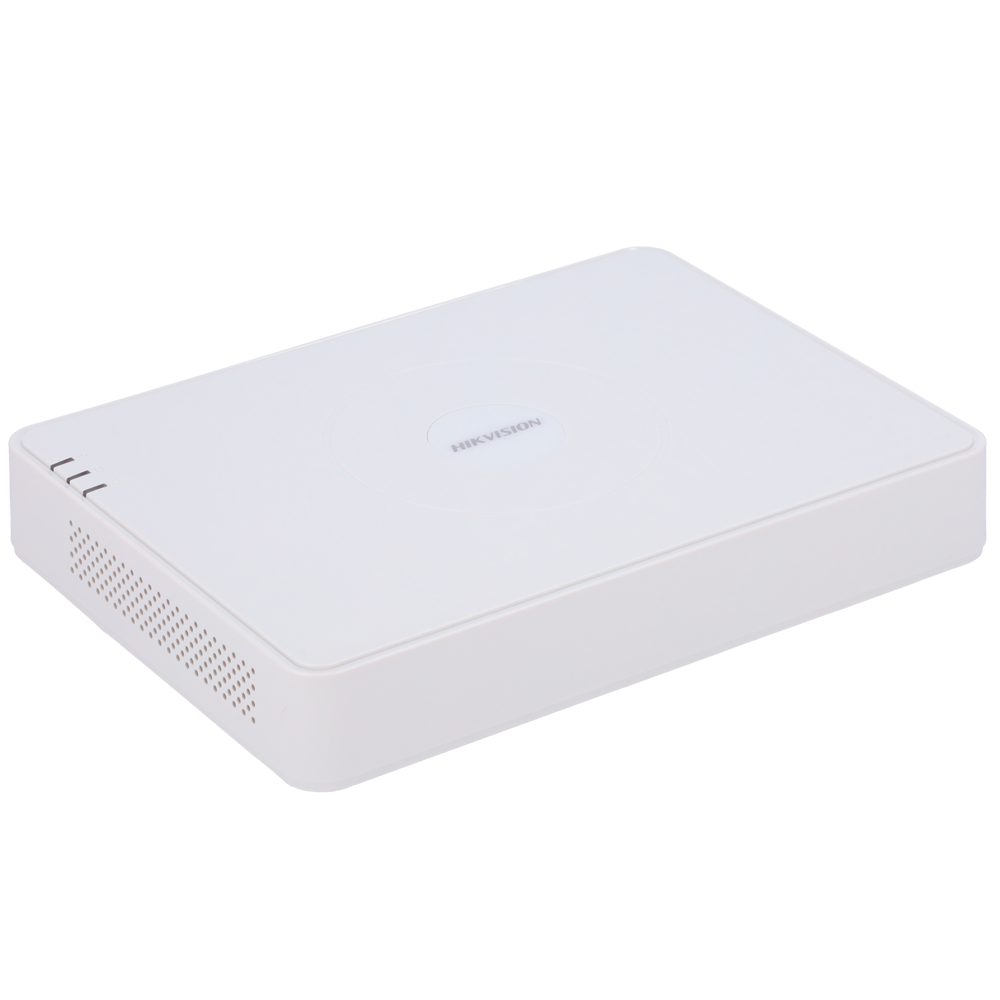

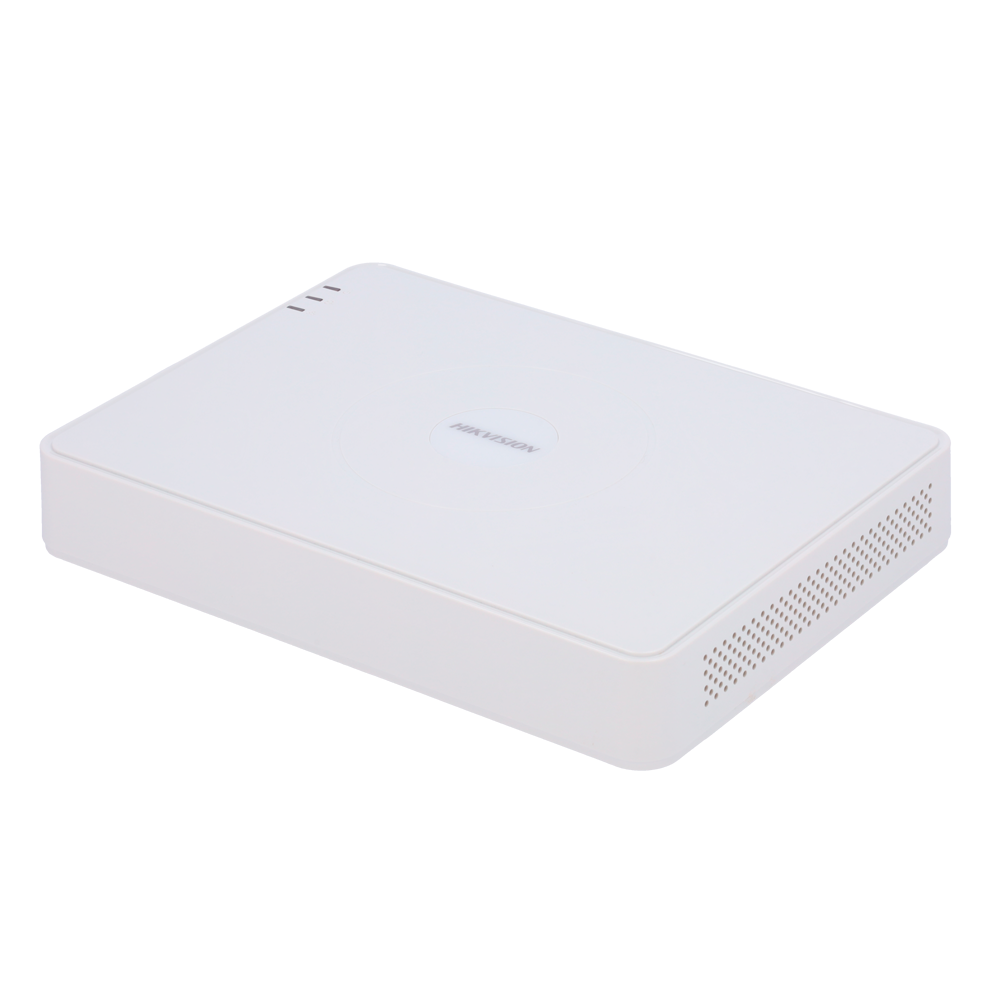

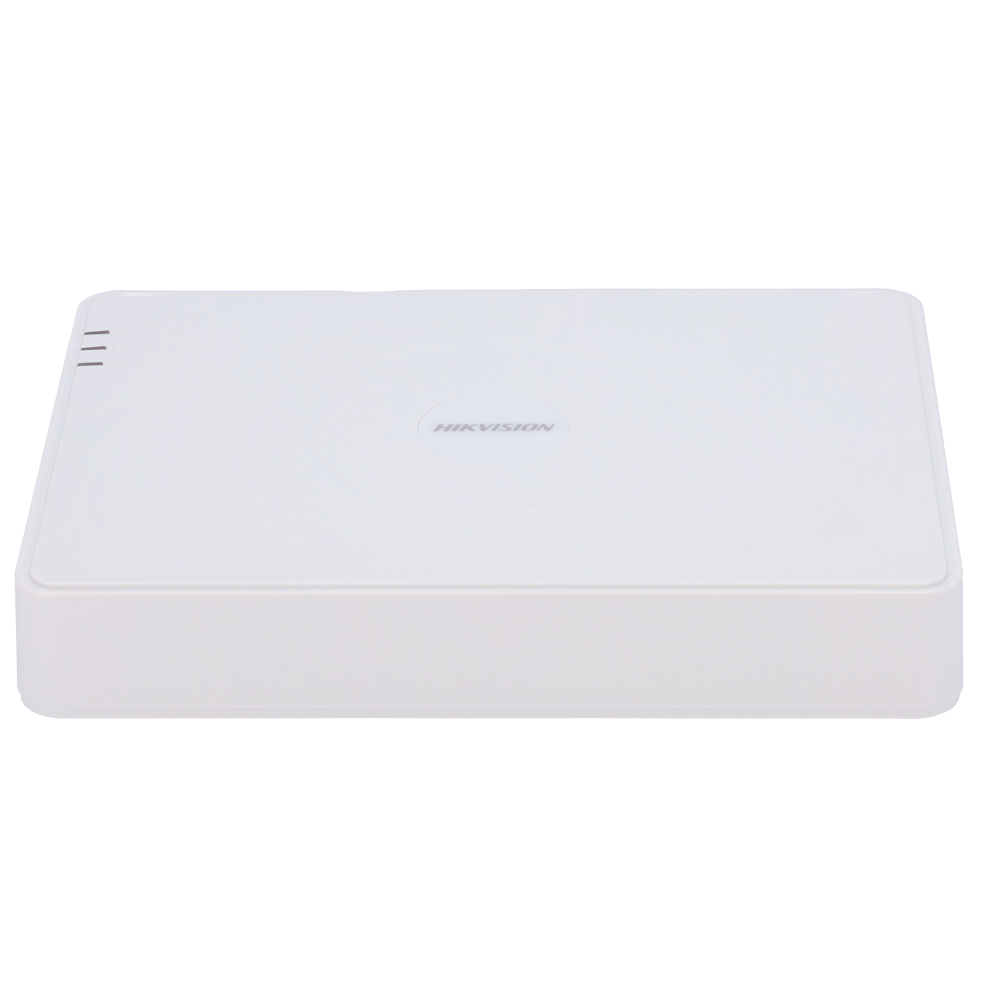

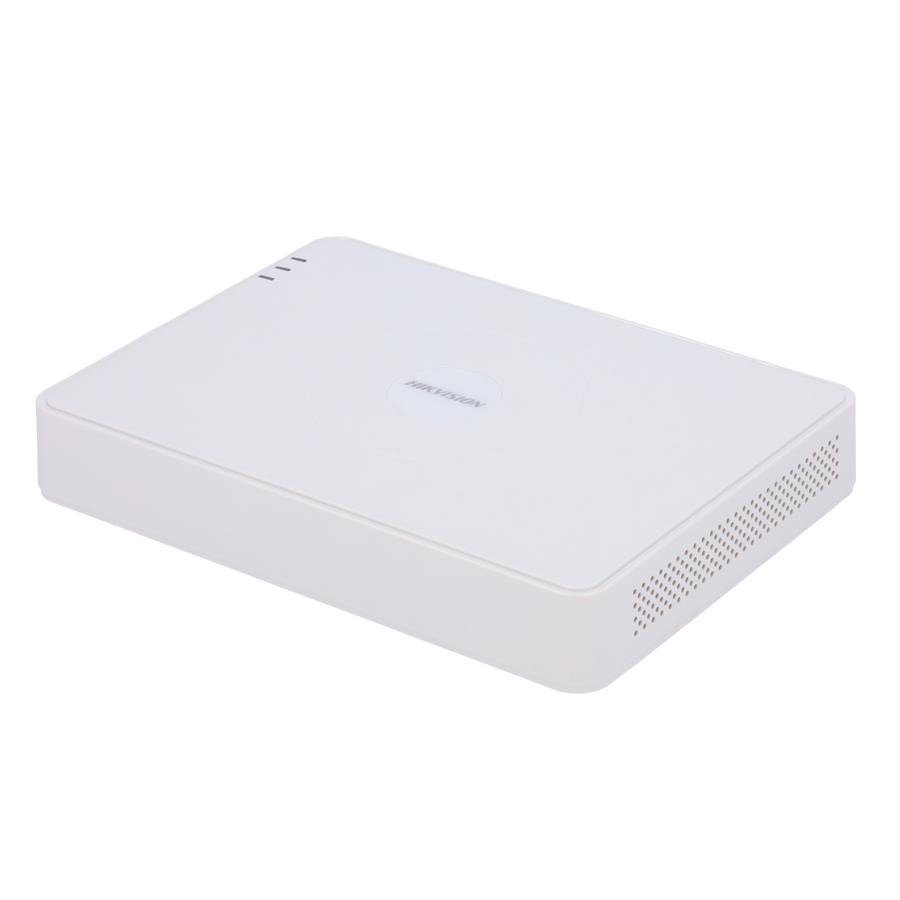

HIKVISION 8CH NVR DS-7108NI-Q1/8P
Compact 8-Channel PoE Network Video Recorder for IP Surveillance
The HIKVISION 8CH NVR DS-7108NI-Q1/8P is an efficient and reliable recording hub for small to medium IP camera systems. Featuring built-in PoE, high-resolution recording support, and simple installation, it’s ideal for homes, offices, retail shops, and small commercial setups across South Africa.
Why This NVR Works for You
With eight Power-over-Ethernet ports, this NVR eliminates the need for separate power supplies and simplifies setup. Supporting up to 6 MP IP cameras and multiple compression formats, it delivers clear, efficient recording while optimising storage. Its HDMI and VGA outputs allow flexible monitoring, and the compact chassis fits neatly into any space.
-
8 IP channels: Supports up to eight IP cameras simultaneously.
-
Built-in PoE switch: Eight independent PoE ports provide power and data through a single cable per camera.
-
Up to 6 MP recording: Capture high-quality detail from modern IP cameras.
-
Smart compression: H.265+, H.265, H.264+, and H.264 supported to save bandwidth and disk space.
-
Dual video outputs: HDMI and VGA ports for simultaneous display on multiple monitors.
-
Easy setup: Plug-and-play PoE simplifies connection and configuration for installers.
-
Storage support: 1× SATA interface, up to 6 TB capacity (HDD optional).
-
Compact design: Fits easily in tight spaces like desks, shelves, or cabinets.
Key Specifications
-
Video Inputs: 8 IP channels
-
Max Recording Resolution: Up to 6 MP
-
Incoming/Outgoing Bandwidth: 60 Mbps / 60 Mbps
-
Video Compression: H.265+, H.265, H.264+, H.264
-
Playback: 4-channel at 1080p or 1-channel at 6 MP
-

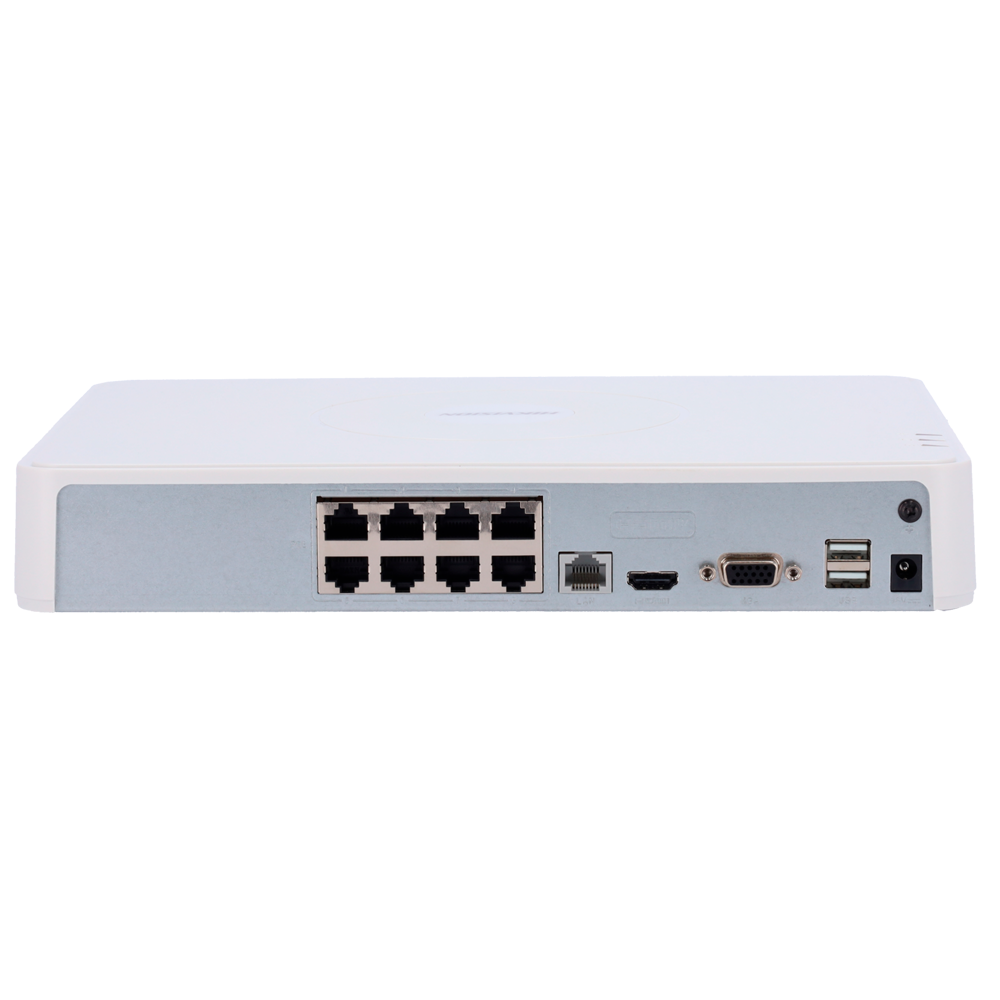

PoE Ports: 8 × RJ-45 10/100 Mbps (IEEE 802.3 af/at, total budget up to 75 W)
-
Audio In/Out: 1 channel each (RCA)
-
Video Outputs: 1 HDMI, 1 VGA (simultaneous display)
-
Storage: 1 SATA interface, supports up to 6 TB HDD
-
Network Interface: 1 RJ-45 10/100 Mbps Ethernet port
-
USB Ports: 2 × USB 2.0
-
Operating Temperature: -10 °C to +55 °C
-
Power Supply: 48 V DC, PoE budget up to 75 W
-
Dimensions: 285 × 210 × 48 mm
-
Weight: Approx. 1 kg (without HDD)
Applications & Use Cases
Perfect for small businesses, retail environments, residential complexes, or offices where reliable, high-definition IP surveillance is required. The integrated PoE ports simplify installation and make it easy to power cameras directly from the recorder.
Installation Tips
- Use high-quality CAT5e or CAT6 cable for each camera connection to ensure stable PoE power delivery.
- Place the NVR in a well-ventilated space away from dust or moisture.
- Install a surveillance-grade hard drive for 24/7 operation and maximum recording lifespan.
- Enable motion detection or event-based recording to optimise storage space.
- Keep firmware updated for best security and compatibility.
Streamline Your IP Surveillance
The HIKVISION 8CH NVR DS-7108NI-Q1/8P delivers efficient, professional-grade recording and monitoring in one compact unit. With plug-and-play setup, built-in PoE, and reliable Hikvision performance, it’s the perfect choice for secure, simple, and scalable surveillance. ✅ Available now at NeonSales.co.za — get professional IP recording for your setup today.
