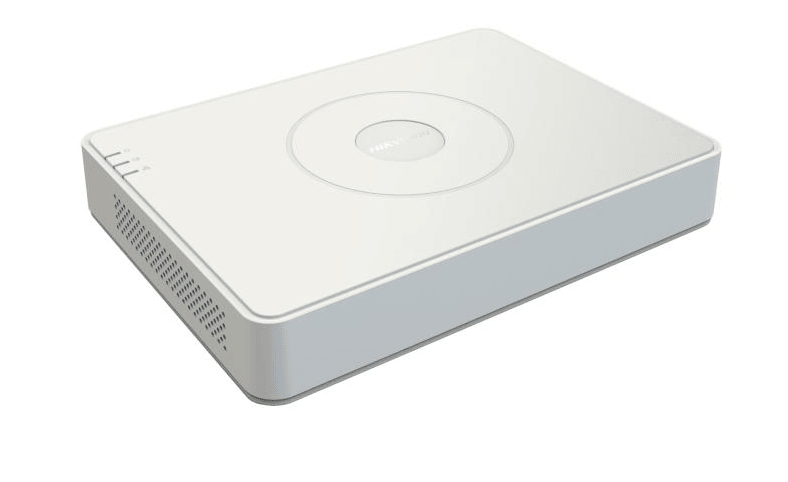

HIKVISION 8CH MINI 1U 8POE NVR
Experience the power of HIKVISION 8CH MINI 1U 8POE NVR with compression and recording capabilities. Our H.265+ compression technology effectively reduces storage space by 75%, while allowing for full channel recording at up to 4 MP resolution.
Store and playback your footage with ease, as our NVR supports 2-ch@4 MP or 4-ch@1080p playback resolution and 1 SATA interface with up to 6 TB capacity per HDD.
Plus, take advantage of our smart functions such as line crossing and intrusion detection, as well as smart search and playback for improved efficiency. With 8 independent PoE network interfaces and 1 self-adaptive 10/100 Mbps Ethernet interface, managing your network has never been easier with Hik-Connect. Order now and see the difference for yourself!
FEATURES:
- H.265+/H.265/H.264+/H.264 video compression
-
Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
-
Up to 8-ch network camera inputs
-
Up to 4-ch 1080p decoding capability
-
HDMI and VGA simultaneous output
SPECS:
- Video And Audio
-
IP Video Input
8-ch
Up to 6 MP resolution
-
Incoming Bandwidth60 Mbps
-
Outgoing Bandwidth60 Mbps
-
HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
Video Output ModeHDMI/VGA simultaneous output
- Decoding
-
Decoding FormatH.265+/H.265/ H.264+/H.264
-
Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
-
Synchronous Playback4-ch
-
Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
-
Stream TypeVideo, Video & Audio
- Network
-
Remote Connection16
-
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
-
Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- PoE
-
Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
-
Power≤ 75 W
-
StandardIEEE 802.3 af/at
- Auxiliary Interface
-
SATA1 SATA interface
-
CapacityUp to 6TB capacity for each disk
-
Alarm In/OutN/A
-
USB InterfaceRear panel: 2 × USB 2.0
- Certification
-
CEEN50130-4, EN 61000-3-2,EN 61000-3-3
