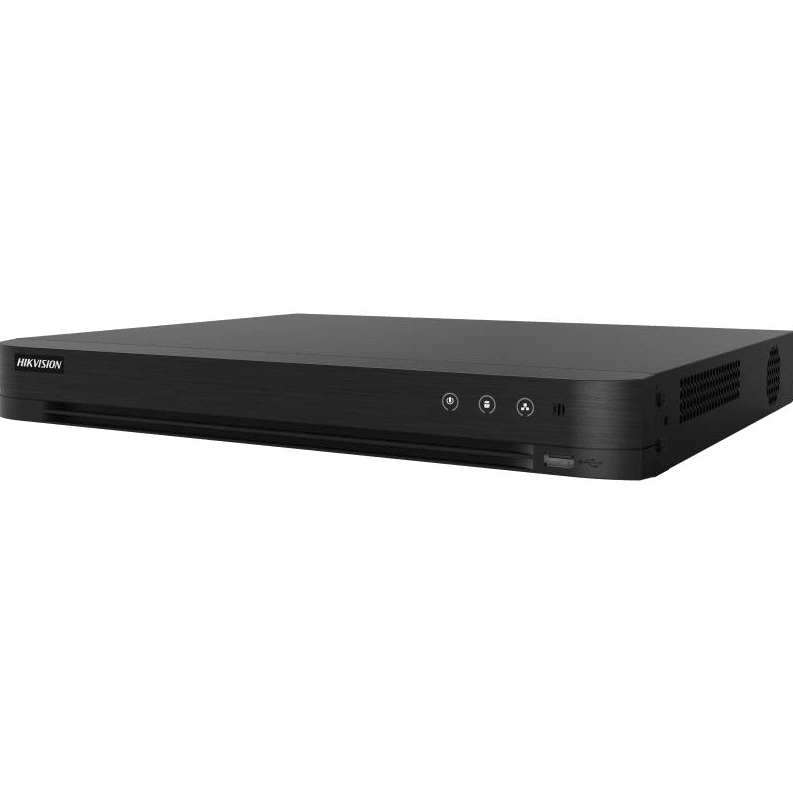

HIKVISION 8CH ACUSENSE DVR
HIKVISION 8CH ACUSENSE DVR utilizes H.265 Pro+ video compression to increase encoding efficiency and reduce data storage costs. It offers full-channel recording at 1080p resolution and supports smart search for efficient playback.
Additionally, it has deep learning-based motion detection and perimeter protection capabilities, allowing for multiple VCA events for both analog and smart IP cameras. The DVR is also compatible with major Wi-Fi dongle products and features Hik-Connect and DDNS for easy network management. Users can also configure output bandwidth limits.
FEATURES:
- 8 channels and 2 HDD 1U AcuSense DVR
-
False alarm reduction through human and vehicle target classification based on deep learning
-
Efficient H.265 pro+ compression technology
-
Encoding ability up to 3K/5M Lite @ 12 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 12 network cameras can be connected.
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
-
Human/Vehicle Analysis Up to 4-ch
- Facial Detection
-
Facial Detection And Capture Face picture detection, face picture search
- Recording
-
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
-
Video Bitrate 32 Kbps to 6 Mbps
-
Dual-StreamSupport
-
Stream Type Video, Video & Audio
-
Audio Compression G.711u
-
Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
2-ch (up to 10-ch)
Up to 6 MP resolution
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
;Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDMI Output
1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
HDMI/VGA simultaneous output
-
VGA Output 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
-
CVBS Input PAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 8ch
-
HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
-
AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
Audio Output1-ch, RCA (Linear, 1 KΩ)
-
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
-
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Network
-
Total Bandwidth96 Mbps
-
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
-
Remote Connection64
-
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- General
-
Power Supply12 VDC
-
Consumption≤ 30 W
-
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
-
Working Humidity10% to 90%
-
Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
-
Weight≤ 1.78 kg (3.9 lb)
