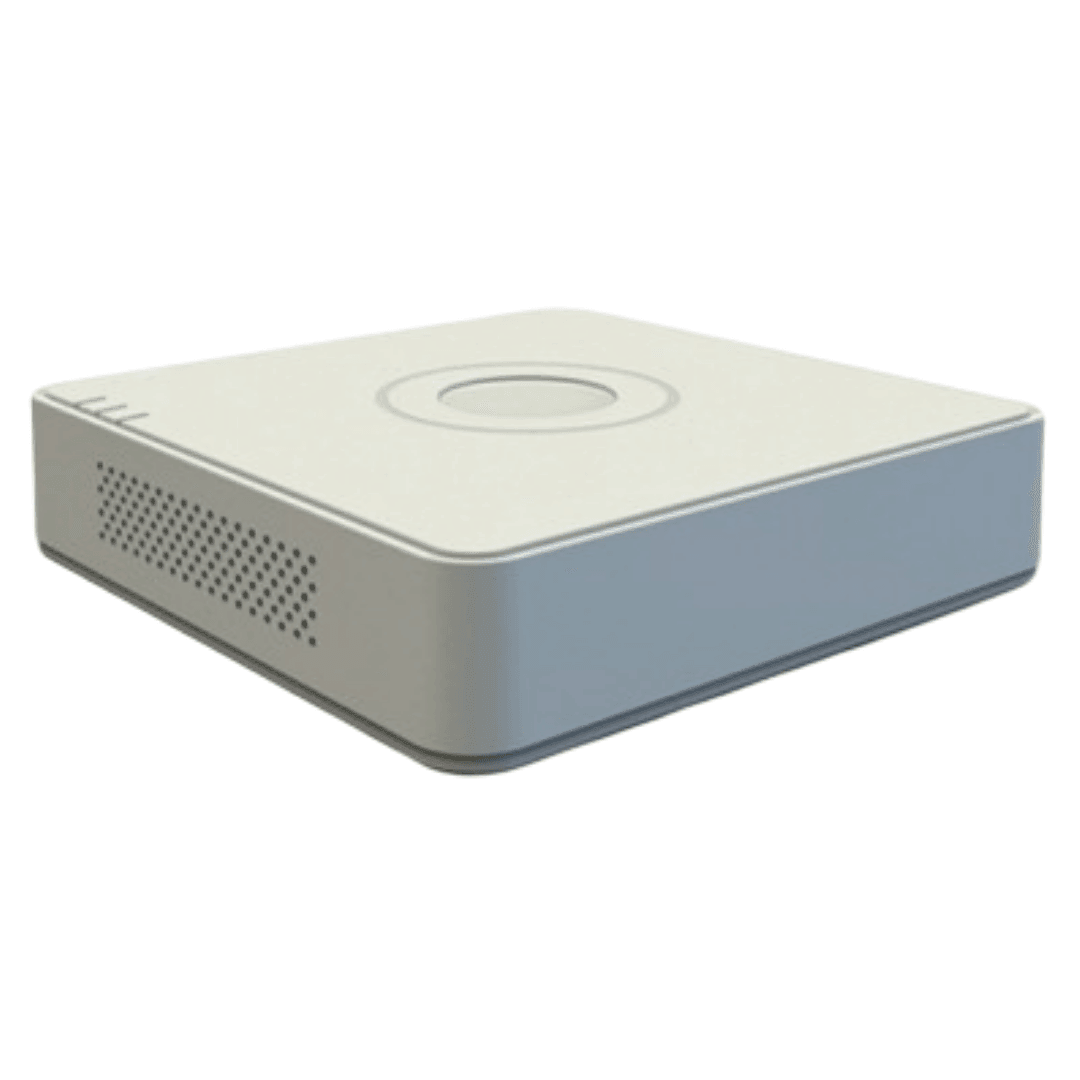

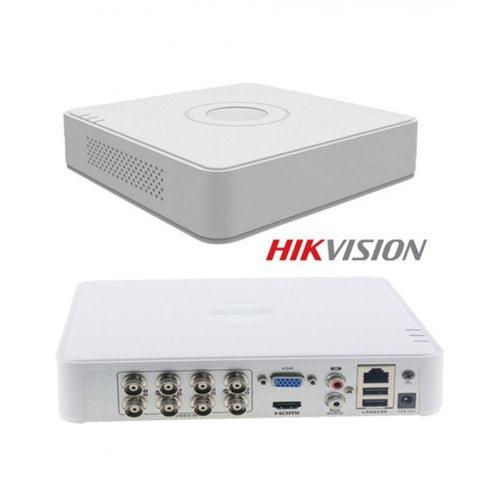

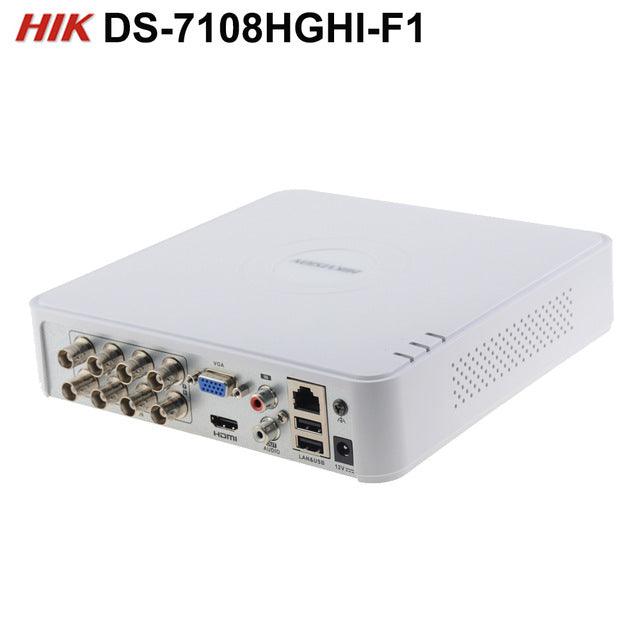

Hikvision 8 Channel 1080p H.264 DVR

8 Channel 1080p Mini 1U Lite H.264 DVR

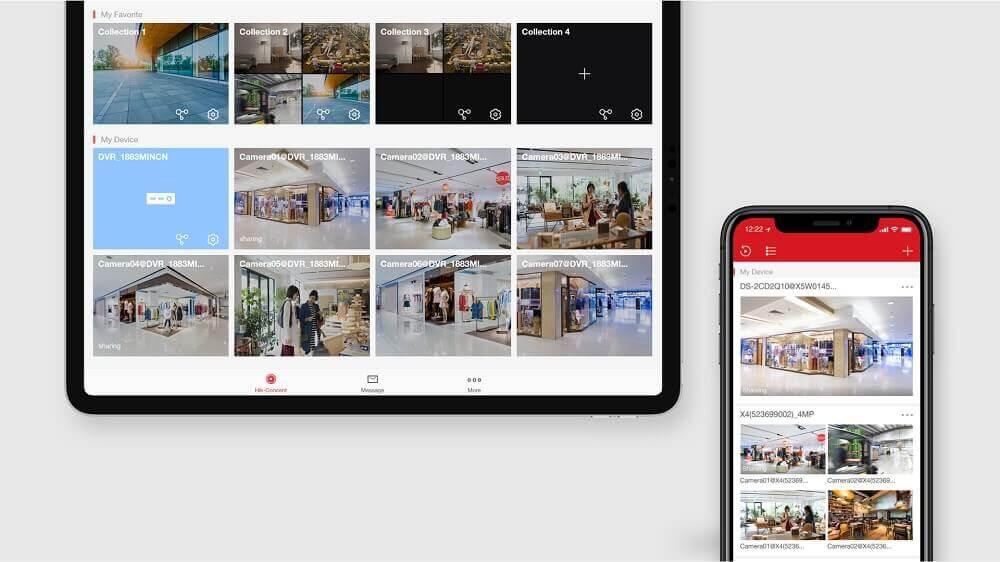

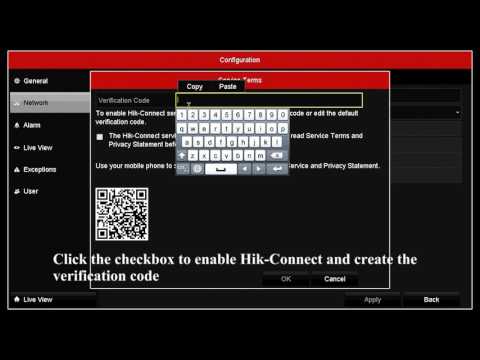

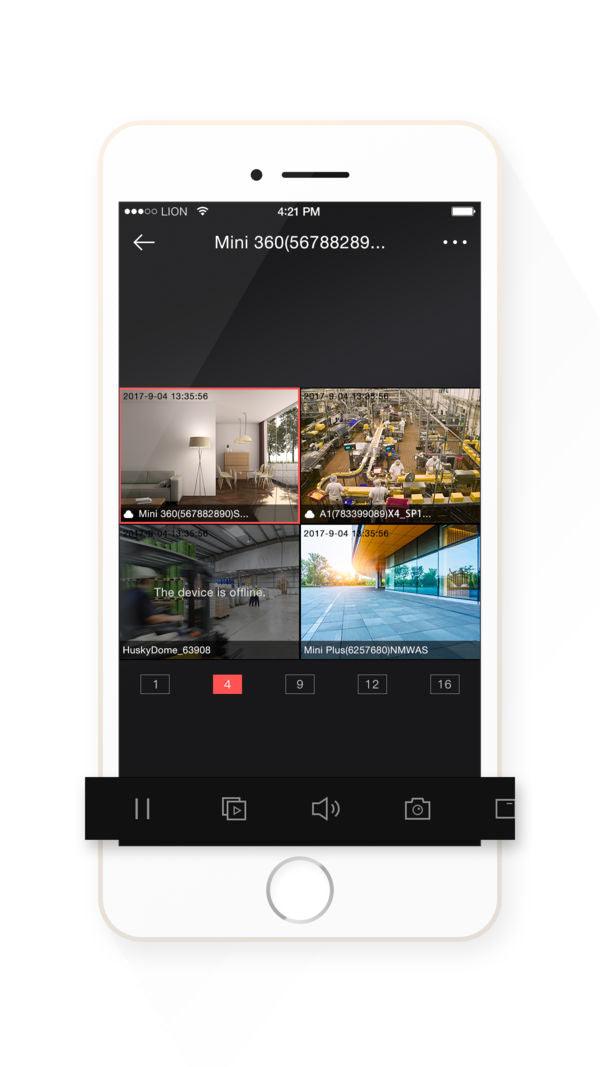

Hikvision's 8 channel DVR is a basic system to start of your camera setup, recommended  home/small businesses. You can connect up to 8 cameras to this Digital Video Recorder. This DVR supports up to 2MP cameras which are compatible with most of the hikvision basic cameras on the market. It has 2 video interface which you can choose from either VGA or HDMI. Configurations are easy and straight forward with a user friendly interface you can certainly work your way through. Hikvision offers a lot of functionalities and one of them is being able to view your camera system remotely using a Smartphone by downloading the Hik-connect App and linking it to your system for a piece of mind. 128 users can be linked remotely to your system using the App.

Features

• 8 channels
• H.264+ / H.264 video compression
• Encoding ability up to 1080p lite @ 25/30 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 8 network cameras can be connected

Technical Specifications

Recording

• Video Compression : H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode not enabled : 720p/WD1/4CIF/VGA/CIF

  When 1080p Lite mode enabled : 1080p lite/720p/WD1/4CIF/VGA/CIF



• Frame Rate

  Main stream :

  When 1080p Lite mode not enabled :

  For 720p stream access : 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled :

  1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  Sub-stream :

  4CIF/2CIF@6fps;

  CIF/QVGA/QCIF@25fps (P)/30fps (N)



• Video Bit Rate : 32 Kbps to 4 Mbps
• Dual Stream Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bit Rate : 64 Kbps

Video And Audio

• IP Video Input : Up to 8-ch Up to 1080p resolution Support H.264+/H.264 IP cameras

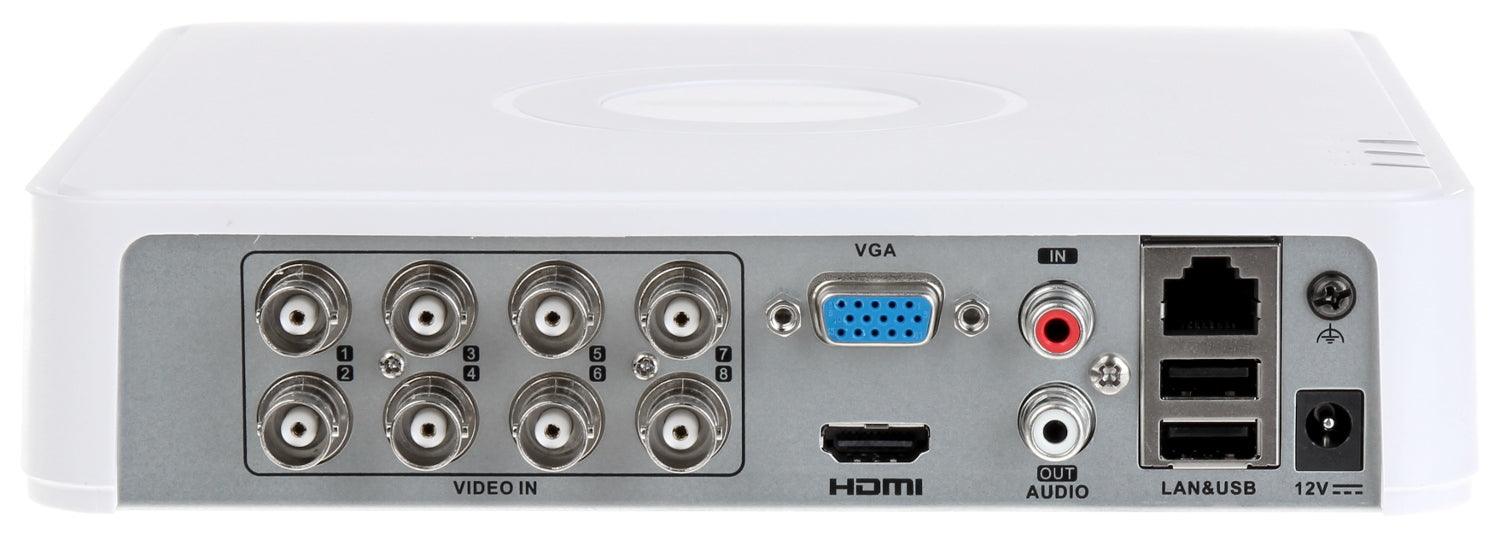

• Analog Video : Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD Input : 1080p25, 1080p30, 720p25, 720p30
• AHD Input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : Support
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : Reuse the first audio input
• Synchronous Playback : 8-ch

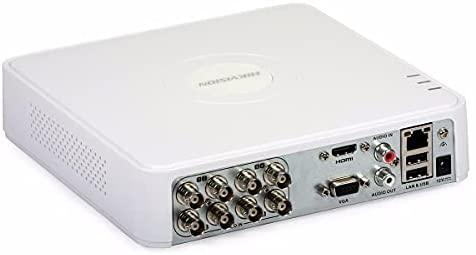

• VGA/HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections : 128
• Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA : SATA
• Capacity : Up to 6 TB capacity for each disk
• Alarm : In/OutN/A
• USB Interface : Rear panel: 2 × USB 2.0

General

• Power Supply : 12 VDC
• Consumption : (Without HDD)≤ 12 W
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Dimensions : (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weights : (Without HDD)≤ 0.8 kg (1.8 lb)

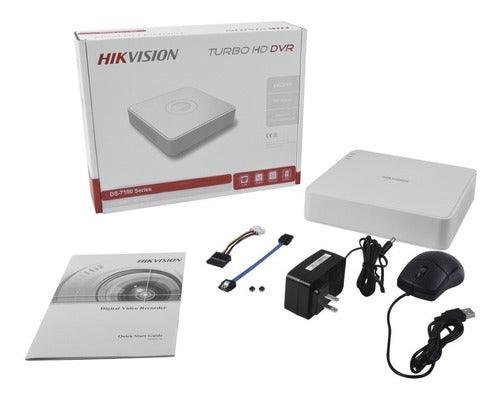

 What's Included :

1 x Hikvision 8 channel 2MP 1080p DVR

1 x Wired Mouse

1 x SATA Cable

1 x Power Cable for HDD

1 x Power Adapter

1 x Instruction Manual
