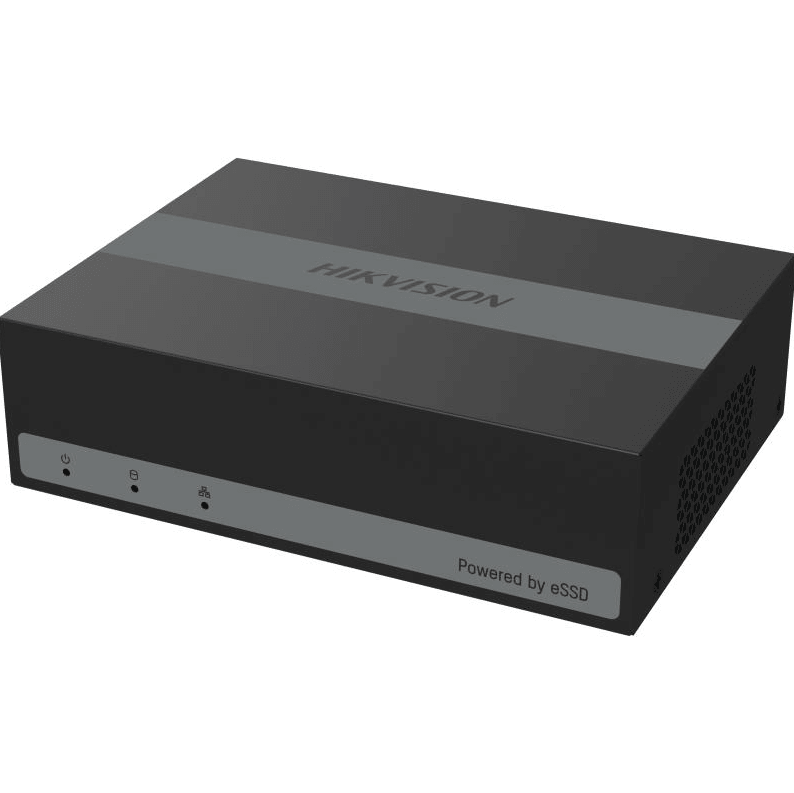

HIKVISION 8CH 1080PLITE 1U H.265 WITH 1TB ESSD DVR
HIKVISION 8CH 1080PLITE 1U H.265 WITH 1TB ESSD DVR
DS-E08HGHI-D
Efficient Use of Storage: The HIKVISION 8CH 1080PLITE 1U H.265 DVR features a built-in SSD with a minimalist design that reduces power consumption. Its integrated storage design allows for easy plug-and-play use. Additionally, the mini size design and anti-vibration feature make installation a breeze.
With scene-adaptive bitrate control technology and full channel recording at up to 2 MP Lite resolution, you can expect precise allocation of videos according to the actual scene. Plus, the deep learning-based motion detection 2.0 and smart search function make for efficient playback.
FEATURES:
- Powered by eSSD technology
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Scene-adaptive bitrate control video compression
- Low power consumption
- Up to 1080p Lite@15 fps encoding capability
- Audio via coaxial cable
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video Compression H.265 Pro/H.265
- Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
-
Frame Rate
Main stream:
1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
CIF/QVGA@15 fps
- Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
-
Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
-
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
-
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
- HDMI Output1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- VGA Output1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60 Hz
- Video Output Mode HDMI/VGA simultaneous output
- Audio Input8-ch via coaxial cable
- Audio Output 1-ch via HDMI
- Synchronous Playback 8-ch
- Network
-
Total Bandwidth
72 Mbps
Incoming bandwidth: 8 Mbps
- Remote Connection 32
- Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
-
Capacity
Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 4 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1 A
- Consumption≤ 6.2 W (with eSSD)
- Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
- Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
