HIKVISION 8 PORTS DUAL TOUCH DOCK STATION

HIKVISION 8 PORTS DUAL TOUCH DOCK STATION

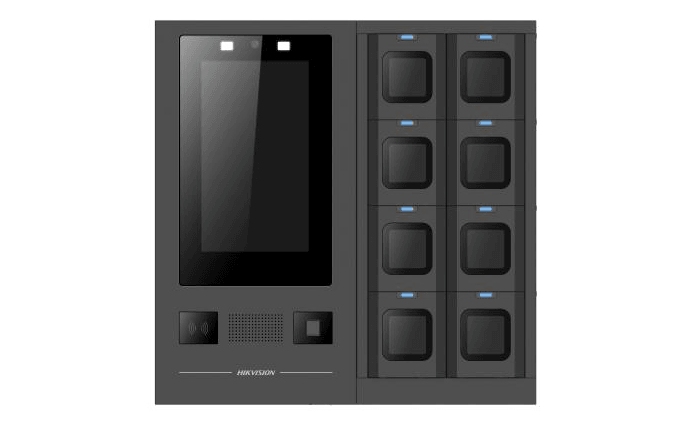

The HIKVISION 8 PORTS DUAL TOUCH DOCK STATION features a dual system design, ensuring high stability. With wall mount, mobile mount, and desktop mount capabilities, this device is versatile and convenient. It boasts a 13.3-inch ultra-large touchscreen with 1920 × 1080 resolution for easy operation.

For added security, the device utilizes facial recognition technology to unlock the body camera bin and prevent unauthorized access. It also supports automatic data uploading and clearing of storage space, as well as data protection in the event of sudden power cutoff. Additionally, it includes ANR technology to prevent data loss during uploading and allows for local upgrades and multi-user management.

SPECS:

• Camera
• White LightSupported

• Lens
• Focal Length4.3 mm
• FOV79°
• ApertureF 2.5

• Screen
• Screen TypeTFT
• Resolution1920 × 1080
• Screen Size13.3"
• TouchscreenSupported

• Storage
• HDDUp to 4 disks (Max. 8 TB for each disk) and default 2 TB
• RAM2 GB

• Wireless Network
• NFCWorking Frequency: 13.56 MHzProtocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.Label Standard: M1 card (S50, S70), CPU card, NFC label, etc.

• Network
• ProtocolHTTPS, RTSP, NTP, FTP
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

• Interface
• Body Camera Access Number8-32 body cameras
• Indicator1 indicator for power, every dock has 1 tricolor indicator.
• ButtonPower
• Ethernet1 RJ45 10M/100M/1000M self-adaptive ethernet port(s)
• USB1 for USB 2.0, 1 for USB 3.0
• Charging InterfaceType-C
• VGAX 1
• Fingerprint ModuleSupported

• General
• Operating Condition-10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
• Operating SystemLinux, Android 5.1.1
• Web BrowserPlug-in required live view: IE 10+
• ClientHikCentral Pro, HikCentral Master
• Speaker1 Built-in speaker, Max. power consumption: 2 W, Max. sound pressure level: 99dB (10 cm)
• Installation MethodDesk-Mounted, Wall-Mounted, Cell-Mounted, Movable Bracket
• Power100 V AC ~ 240 V AC, max. 420 W
• Dimension590 mm × 586 mm × 93 mm (23.23" × 23.07" × 3.66")
• Weight18 kg (without mounting) (39.68 lb.)

• Approval
• RFCE-RED: EN 300 330
• EMCCE-EMC: EN 55032: 2015/A1:2020, EN IEC 61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013/A2:2021, EN 55035: 2017/A11:2020
• Safety

  CB: IEC 62368-1: 2014, IEC 62368-1: 2018

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU
