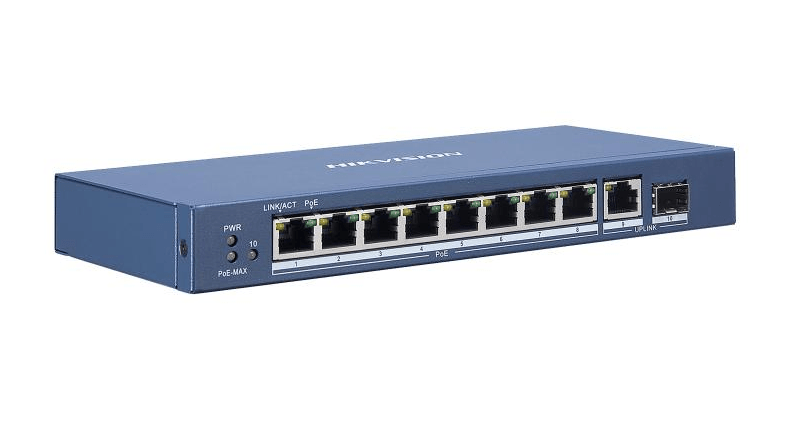

HIKVISION 8 PORT GIGABIT UNMANAGED POE SWITCH
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11273
HIKVISION 8 PORT GIGABIT UNMANAGED POE SWITCH
R 2,123.00
Unit price
per
Only 1 left in stock
In stock
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
HIKVISION 8 PORT GIGABIT UNMANAGED POE SWITCH
DS-3E0510P-E
This 8 port Gigabit Unmanaged POE Switch is a must-have for your network! With a Layer 2 design perfect for video data transmission, it features 8 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port, and 1 x 10/100/1000 Mbps uplink SFP port.
It's built to meet IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards, and comes equipped with IEEE 802.3 af & at high PoE power supply for maximum efficiency. Rest assured, this switch uses store-and-forward switching and has 6 KV high surge protection for added safety and reliability. Plus, its plug and play feature ensures simplicity and convenience. Get yours today!
FEATURES:
- Layer 2 network switch designed for video data transmission
- 8 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
SPECS:
- General
- ShellMetal material, fan-free design
- Net Weight0.6 kg (1.32 lb)
- Gross Weight1.4 kg (3.09 lb)
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Max. Power Consumption120 W
- Power Consumption In Idle10 W
- Installation ModeDesk-Mounted,Wall-Mounted;
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget110 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
HIKVISION 8 PORT GIGABIT UNMANAGED POE SWITCH
DS-3E0510P-E
This 8 port Gigabit Unmanaged POE Switch is a must-have for your network! With a Layer 2 design perfect for video data transmission, it features 8 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port, and 1 x 10/100/1000 Mbps uplink SFP port.
It's built to meet IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards, and comes equipped with IEEE 802.3 af & at high PoE power supply for maximum efficiency. Rest assured, this switch uses store-and-forward switching and has 6 KV high surge protection for added safety and reliability. Plus, its plug and play feature ensures simplicity and convenience. Get yours today!
FEATURES:
- Layer 2 network switch designed for video data transmission
- 8 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
SPECS:
- General
- ShellMetal material, fan-free design
- Net Weight0.6 kg (1.32 lb)
- Gross Weight1.4 kg (3.09 lb)
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Max. Power Consumption120 W
- Power Consumption In Idle10 W
- Installation ModeDesk-Mounted,Wall-Mounted;
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget110 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
