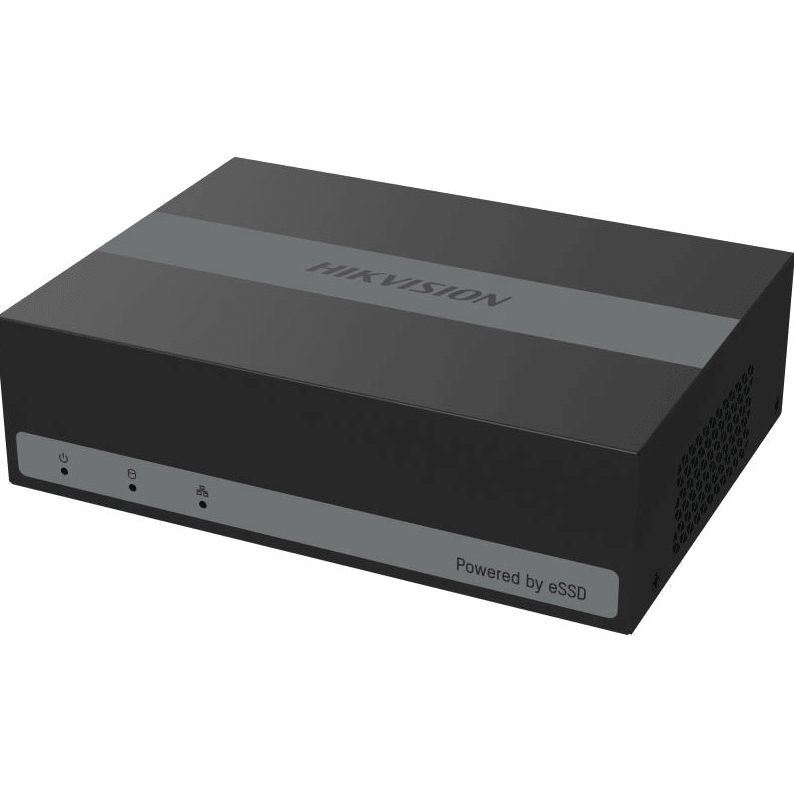

HIKVISION 8-CH 1080P 1U H.265 ESSD ACUSENSE DVR
This HIKVISION 8-CH 1080P 1U H.265 ESSD ACUSENSE DVR features a compact, easy-to-install design with a built-in SSD for efficient storage and low power consumption. Utilizing scene-adaptive bitrate control technology, it records at high resolution, while its deep learning-based features provide advanced motion detection, perimeter protection, and smart search capabilities. Choose this DVR for a plug-and-play experience that fulfills all your installation needs.
FEATURES:
- Powered by eSSD technology
-
Deep learning based human and vehicle targets classification of Motion Detection 2.0
-
Deep learning-based perimeter protection
-
Scene-adaptive bitrate control video compression
-
Up to 3K/5MP Lite@12 fps encoding capability
-
Low power consumption
-
Audio via coaxial cable
SPECS:
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
-
Human/Vehicle AnalysisUp to 4-ch
- Recording
-
Video CompressionH.265 Pro/H.265
-
Encoding Resolution
When 1080p Lite mode is not enabled:
5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;
When 1080p Lite mode is enabled:
5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;
-
Frame Rate
Main stream:
When 1080p lite mode not enabled:
For 5MP stream access:
3K/5MPLITE @12FPS；4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
5MP/3K lite/ 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)
-
Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
-
Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
-
Audio CompressionG.711u
-
Audio Bitrate64 Kbps
- Video And Audio
-
IP Video Input
2-ch
Up to 6 MP resolution
Support H.265+/H.265 IP cameras
-
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDTVI Input3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
-
AHD Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
HDCVI Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
CVBS InputSupport
-
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
-
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
-
Video Output ModeHDMI/VGA simultaneous output
-
Audio Input8-ch via coaxial cable
-
Audio Output1-ch via HDMI
-
Synchronous Playback4-ch
- Auxiliary Interface
-
Capacity
Built-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
-
Alarm In/OutOPTIONAL 4/1
-
USB InterfaceRear panel: 2 × USB 2.0
- General
-
Power Supply12 VDC, 1 A
-
Consumption≤ 8.2 W (with eSSD)
-
Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
-
Working Humidity10% to 90%
-
Dimension (W × D × H)170 × 121.6 × 46 mm (6.7 × 4.79 × 1.81 inch)
-
Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
