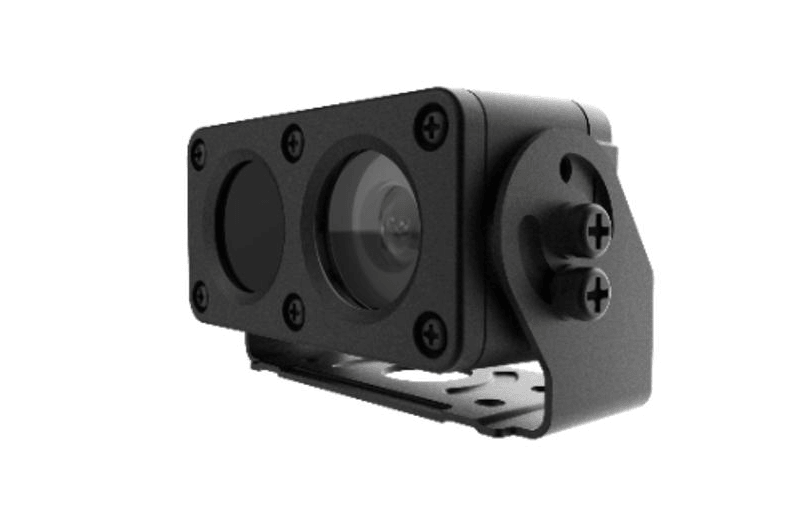

HIKVISION 720P IR ARRAY SQUARE ANALOG CAMERA
HIKVISION 720P IR ARRAY SQUARE ANALOG CAMERA
AE-VC153T-IT_2.8MM_MIRROR
- Progressive scan CMOS
- Up to 720P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP68 protection level
SPECS:
- Camera
- Shutter Speed 1/25 s to 1/50,000 s
- P/NP (Default format is PAL and support switching to NTSC)
- Wide Dynamic Range 85dB
- Day & Night Electronic
- Lens
- Lens Mount M12
- Video
- Frame Rate 720P@25 fps
- Image
- SNR 42 dB
- Interface
- Video Output TVI
- Built-In Microphone No
- Built-In Speaker No
- Audio No
-
Interface Style
1 Vpp Composite Output (aviation plug)
1: video, 2: empty, 3: power, 4: ground
- Supplement Light Unit
- Power Supply 9 to 16 V DC
- Power Consumption Max. 2.5 W
- General
- Camera Dimensions 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
- Startup And Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), 90%
HIKVISION 720P IR ARRAY SQUARE ANALOG CAMERA
AE-VC153T-IT_2.8MM_MIRROR
- Progressive scan CMOS
- Up to 720P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP68 protection level
SPECS:
- Camera
- Shutter Speed 1/25 s to 1/50,000 s
- P/NP (Default format is PAL and support switching to NTSC)
- Wide Dynamic Range 85dB
- Day & Night Electronic
- Lens
- Lens Mount M12
- Video
- Frame Rate 720P@25 fps
- Image
- SNR 42 dB
- Interface
- Video Output TVI
- Built-In Microphone No
- Built-In Speaker No
- Audio No
-
Interface Style
1 Vpp Composite Output (aviation plug)
1: video, 2: empty, 3: power, 4: ground
- Supplement Light Unit
- Power Supply 9 to 16 V DC
- Power Consumption Max. 2.5 W
- General
- Camera Dimensions 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
- Startup And Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), 90%
