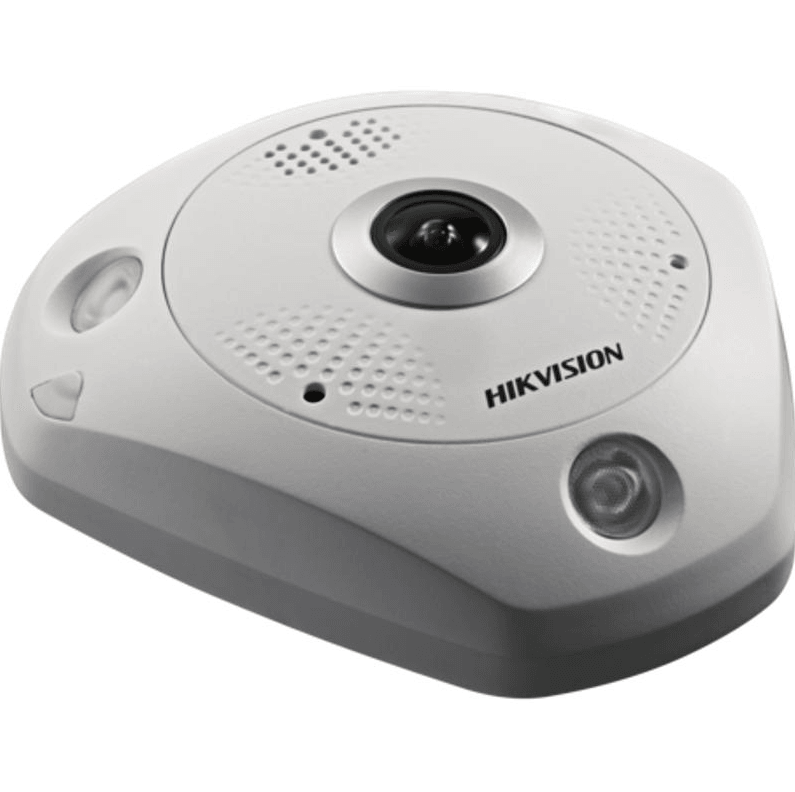

HIKVISION 6MP DEEPINVIEW FISHEYE NETWORK CAMERA
HIKVISION 6MP DEEPINVIEW FISHEYE NETWORK CAMERA
The HIKVISION 6MP DEEPINVIEW FISHEYE NETWORK CAMERA offers 360-degree panoramic imaging capabilities for surveillance purposes. With a progressive scan CMOS sensor, it can capture high-resolution images up to 3072 × 2048.
This camera also features 18 live view display modes, designed for 3 different mount types to accommodate a variety of user preferences. Additionally, its three independently controlled IR lights can provide visibility up to 15 meters, making it suitable for low or zero-light environments.
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
FEATURES:
- 1/1.8” Progressive Scan CMOS
- Max. 3072 × 2048 @30fps
- Up to 18 live view display modes
- Digital WDR
- Up to 15m IR range
- Built-in microphone and speaker
- Smart features: 6 behavior analyses, and 3 exception detections Heat map with deep learning algorithm Intersection analysis by deep learning.
- 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication.
SPECS:
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3072 × 2048
-
Min. Illumination
Color: 0.047 Lux @ (F2.6, AGC ON),
B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR Cut Filter
- Lens
- Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount)
- Lens MountM12
- ApertureF2.6
- DORI
- DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
- IR Wavelength850 nm
- Video
-
Main Stream
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
-
Sub-Stream
50Hz: 25fps (720 × 720, 720 × 480)
60Hz: 30fps (720 × 720, 720 × 480)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/ Main Profile /High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.265 and H.264 encoding
- Region Of Interest (ROI)4 fixed regions for main stream
- Fisheye Display
- Mount TypeSupport table, wall, and ceiling mounting
- Decoding ModeSupport hardware decoding and software decoding
-
Display Mode
18 display modes in total
Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
- Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, defog, 3D DNR
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Built-In Microphone2 built-in microphones
- Built-In Speaker1 built-in speaker
- Audio-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
- Alarm-S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection
- Deep Learning Function
-
People Counting
Counts people entering, exiting and passing by separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports target filtering by height
-
Heat Map
A graphic description of visits (calculated by people number or by dwell time) in a configured area.
Two heap map report types are available, space heat map and time heat map line chart
-
Intersection Analysis
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways
- General
-
Power
12 VDC ± 20%, 1 A, max. 12.5 W
PoE: 802.3at, class 4, 42.5 to 57 V, 0.4 A to 0.3 A, max. 15 W
-S model: two-core terminal block
Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
-
Dimension
Without –V model: 167.4 × 152.8 × 50 mm (6. 6" × 6\" × 2\")
With –V model: 167.4 × 152.8 × 55 mm (6. 6 × 6\" × 2.2\") "
- WeightApprox. 1400 g (3.09 lbs)
- Startup And Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- HeaterYes
- Approval
- Protection-V: IP67, IK10
