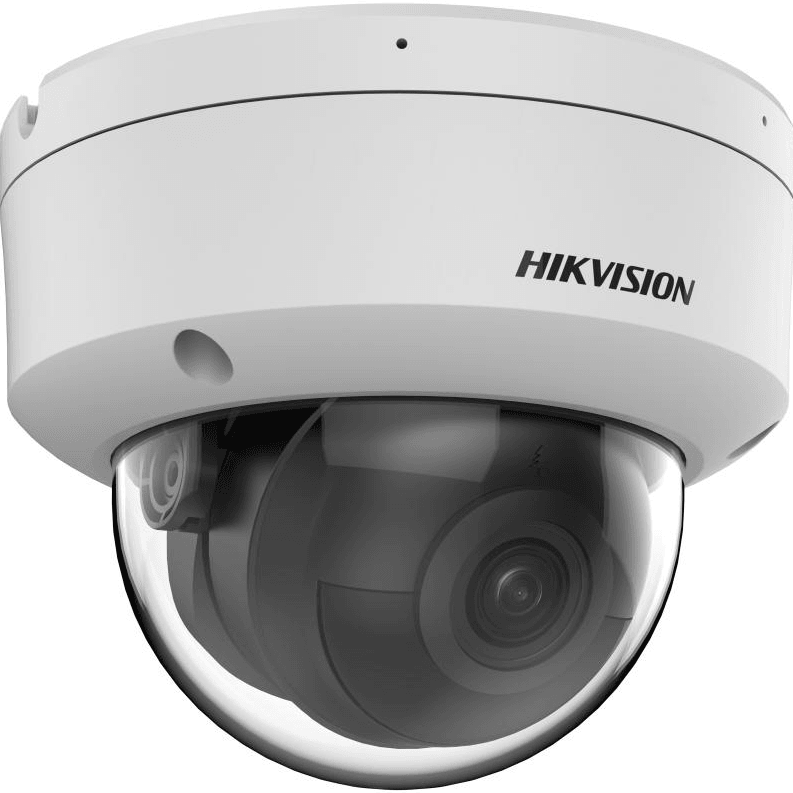

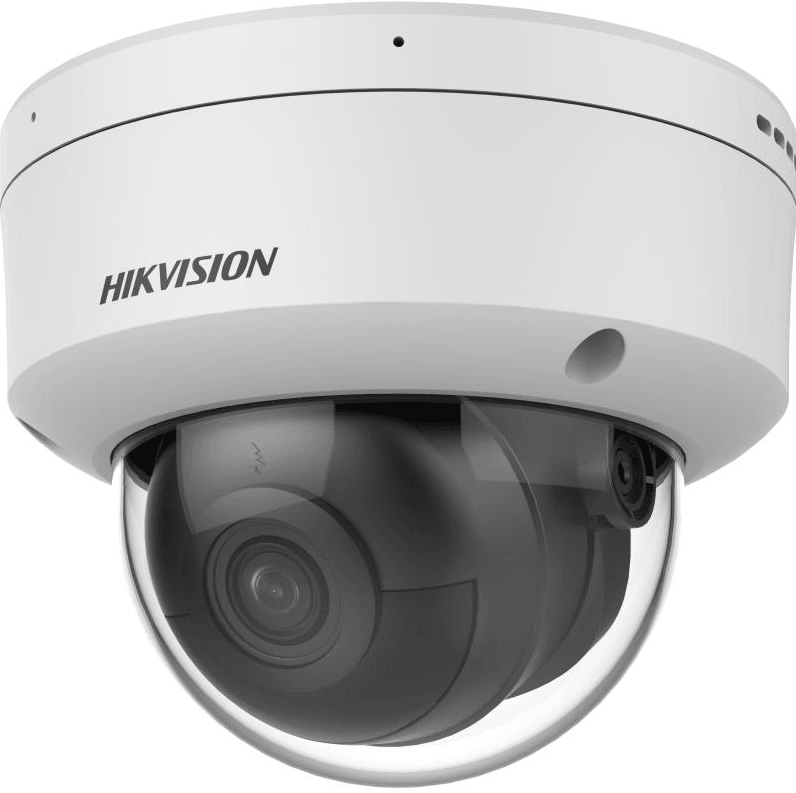

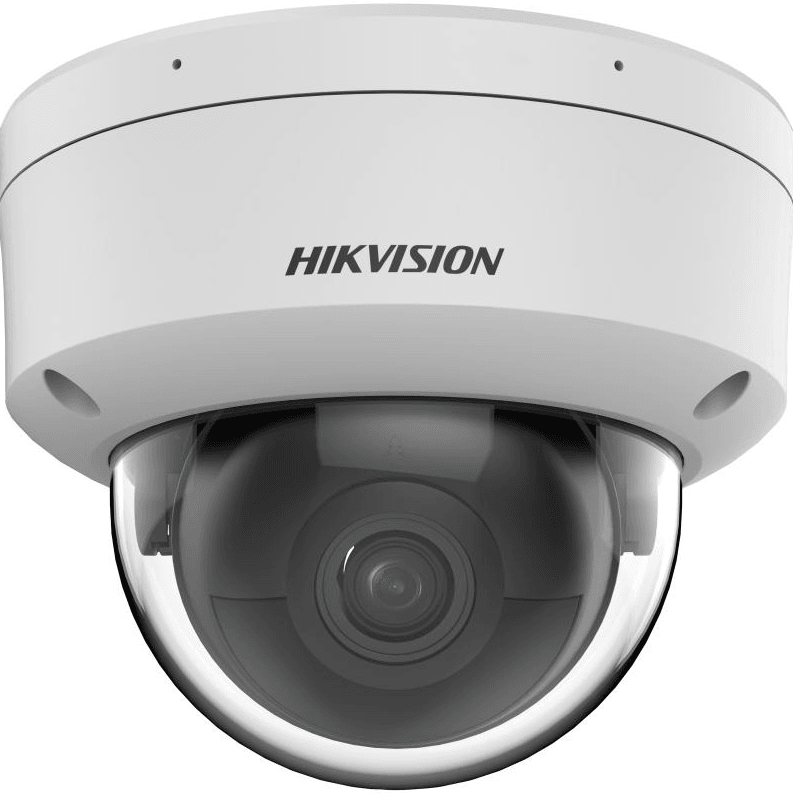

HIKVISION 6MP ACUSENSE DOME CAMERA 6MM
HIKVISION 6MP ACUSENSE DOME CAMERA 6MM
Harnessing the power of advanced deep learning algorithms, Hikvision AcuSense technology revolutionizes security by providing precise classification and notification of human and vehicle targets on both front and back-end devices.
This exceptional system greatly enhances the efficiency and effectiveness of alarm systems, ensuring superior protection for all users. Hikvision's unwavering commitment to security is evident in our design process, where we incorporate various methods such as terminal security, data security, application security, network security, and privacy protection.
Rest assured, all of our security technologies comply with local laws and safety regulations, guaranteeing the utmost protection against cyber threats for both your devices and data. Trust Hikvision for unbeatable security and peace of mind.
FEATURES:
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle target classification based on deep learning
- Water and dust resistant (IP67) and vandal-resistant (IK10)
SPECS:
- Camera
- Image Sensor1/2.4" Progressive Scan CMOS
- Max. Resolution3200 × 1800
- Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
- Lens MountM12
- Iris Type Fixed
- ApertureF1.6
- DORI
-
DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- HEOP
-
Open Resources
Memory: 40 MB,
Smart RAM: 350 MB,
eMMC: 2 GB
- Computing Power1.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK
- Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
- Programming LanguageC,C++
- Video
-
Main Stream
50 Hz:
20 fps (3200 × 1800)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
- Target CroppingYes
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR,Defog
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
-
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 12 VDC, 30 mA)
- Built-In Microphone-U: Yes
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Eventscene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Face CaptureYes
- People CountingYes
- General
-
Power
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class3, max. 9.5 W
- DimensionØ121.5 mm × 97.6 mm (Ø4.8" × 3.8")
- Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- WeightApprox. 500 g (1.1 lb.)
- With Package WeightApprox. 700 g (1.54 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
