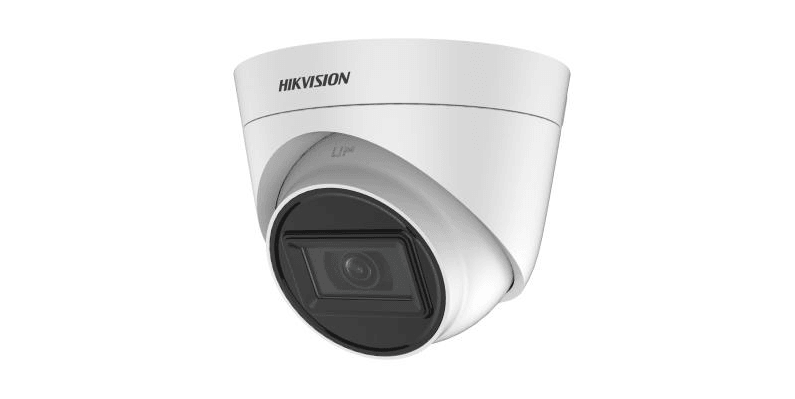

HIKVISION 5MP TVI DOME 3.6MM DS-2CE78H0T-IT3F
DS-2CE78H0T-IT3F(3.6mm)(C)
This 5 MP turret camera features EXIR 2.0, an advanced infrared technology that extends the IR distance up to 40 m. With an IP67 rating, this camera is water and dust resistant and can switch between 4 different signals (TVI/AHD/CVI/CVBS) for versatile use.
FEATURES:
-
5MP turret camera
-
EXIR 2.0: advanced infrared technology with 40 m IR distance
-
Water and dust resistant (IP67)
-
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
-
Image Sensor 5MP CMOS image sensor
-
Max. Resolution 2560 (H) × 1944 (V)
-
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
-
Day & NightICR
-
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
-
Signal SystemPAL/NTSC
- Lens
-
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
-
Lens MountM12
- Image
-
Image Parameters SwitchSTD/HIGH-SAT
-
Image SettingsBrightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image EnhancementBLC, HLC
-
White BalanceATW/MANUAL
-
AGCSupport
- Interface
-
Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Plastic
Main Body: Metal
-
DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
-
WeightApprox. 303 g (0.67 lb.)
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
-
Power Supply 12vdc ±25%
-
Consumption
Max. 4.3 W
-
IR Range Up to 40 m
