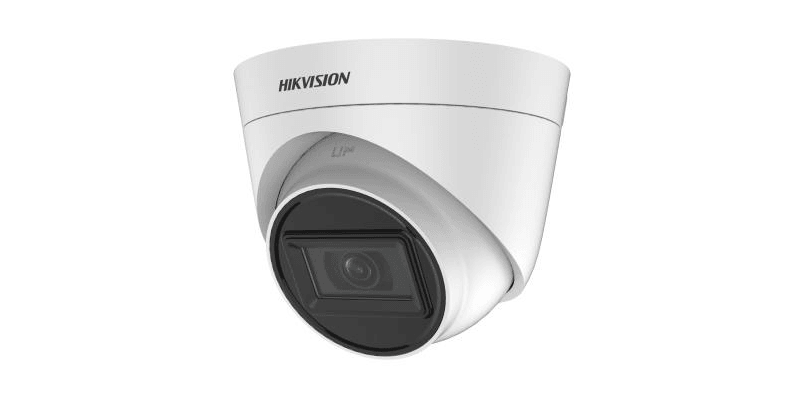

HIKVISION 5MP TVI DOME 2.8MM DS-2CE78H0T-IT3F
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11402
HIKVISION 5MP TVI DOME 2.8MM DS-2CE78H0T-IT3F
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
HIKVISION 5MP TVI DOME 2.8MM DS-2CE78H0T-IT3F
DS-2CE78H0T-IT3F(2.8mm)(C)
- 5 MP turret camera
- EXIR 2.0: advanced infrared technology with 40m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5mp CMOS image sensor
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens Mount M12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement BLC, HLC
- White Balance ATW/MANUAL
- AGC Support
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- Weight Approx. 303 g (0.67 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply12 VDC ±25%
-
Consumption
Max. 4.3 W
- IR Range Up to 40 m
- Approval
- Protection IP67
HIKVISION 5MP TVI DOME 2.8MM DS-2CE78H0T-IT3F
DS-2CE78H0T-IT3F(2.8mm)(C)
- 5 MP turret camera
- EXIR 2.0: advanced infrared technology with 40m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5mp CMOS image sensor
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens Mount M12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement BLC, HLC
- White Balance ATW/MANUAL
- AGC Support
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- Weight Approx. 303 g (0.67 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply12 VDC ±25%
-
Consumption
Max. 4.3 W
- IR Range Up to 40 m
- Approval
- Protection IP67
