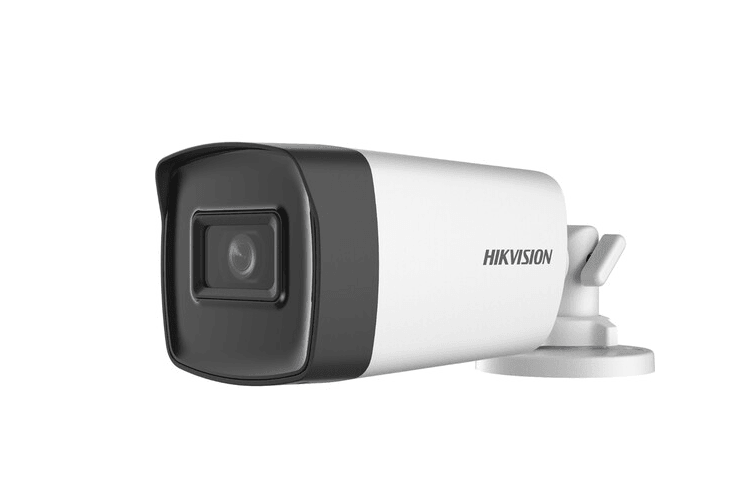

HIKVISION 5MP TVI BULLET 3.6MM DS-2CE17H0T-IT5F
HIKVISION 5MP TVI BULLET 3.6MM DS-2CE17H0T-IT5F
DS-2CE17H0T-IT5F(3.6mm)(C)
Empower your surveillance with the 5 MP TVI Bullet camera from HIKVISION. It captures high-quality images at a resolution of 2560 × 1944 and features a 3.6 mm fixed focal lens for precise focus. With up to 80 m IR distance, it ensures clear and bright night imaging.
Plus, it offers the flexibility of four switchable signals (TVI/AHD/CVI/CVBS) through a single port. Don't let the elements stop you, as this camera is water and dust resistant (IP67).
FEATURES:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 3.6 mm, 6 mm fixed focal lens
- Up to 80 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 5mp CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- Noise Reduction Yes
- White Balance Auto/Manual
- AGC Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Metal
Main Body: Plastic
- Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
- Weight Approx. 330 g (0.73 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply12 VDC ± 25%
-
Consumption
Max. 5 W
- IR RangeUp to 80 m
- Approval
- Protection IP67
HIKVISION 5MP TVI BULLET 3.6MM DS-2CE17H0T-IT5F
DS-2CE17H0T-IT5F(3.6mm)(C)
Empower your surveillance with the 5 MP TVI Bullet camera from HIKVISION. It captures high-quality images at a resolution of 2560 × 1944 and features a 3.6 mm fixed focal lens for precise focus. With up to 80 m IR distance, it ensures clear and bright night imaging.
Plus, it offers the flexibility of four switchable signals (TVI/AHD/CVI/CVBS) through a single port. Don't let the elements stop you, as this camera is water and dust resistant (IP67).
FEATURES:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 3.6 mm, 6 mm fixed focal lens
- Up to 80 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 5mp CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- Noise Reduction Yes
- White Balance Auto/Manual
- AGC Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Metal
Main Body: Plastic
- Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
- Weight Approx. 330 g (0.73 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply12 VDC ± 25%
-
Consumption
Max. 5 W
- IR RangeUp to 80 m
- Approval
- Protection IP67
