HIKVISION 5MP TVI BULLET 3.6MM DS-2CE16H8T-IT5F
HIKVISION 5MP TVI BULLET 3.6MM DS-2CE16H8T-IT5F
DS-2CE16H8T-IT5F(3.6mm)

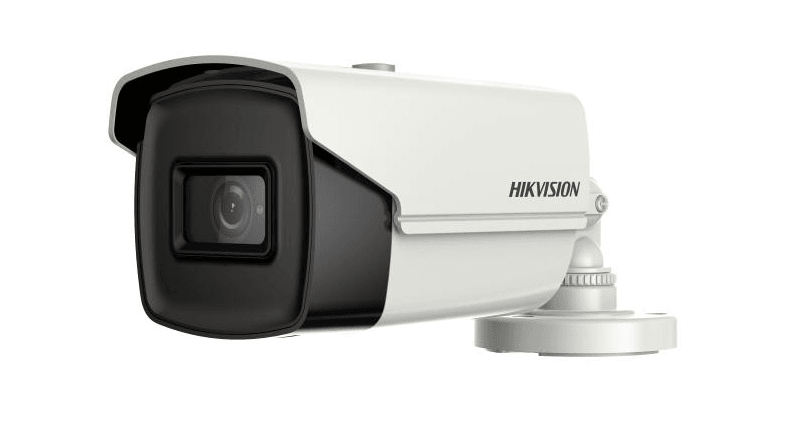

- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor5 megapixel progressive scan CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
- Lens Mount M12
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 60m
- Smart Supplement Light Yes
- Image
- Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8MP@12.5fps, 8MP@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC;WDR
- Privacy Mask 4 programmable privacy masks
- Noise Reduction 3D DNR
- White Balance Auto/Manual
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS;1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
-
Power
12V DC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
, Max. 5.8 W
- Material Metal
- Dimension 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
- Weight Approx. 570 g (1.26 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Approval
- Protection IP67
HIKVISION 5MP TVI BULLET 3.6MM DS-2CE16H8T-IT5F
DS-2CE16H8T-IT5F(3.6mm)
- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor5 megapixel progressive scan CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
- Lens Mount M12
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 60m
- Smart Supplement Light Yes
- Image
- Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8MP@12.5fps, 8MP@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC;WDR
- Privacy Mask 4 programmable privacy masks
- Noise Reduction 3D DNR
- White Balance Auto/Manual
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS;1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
-
Power
12V DC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
, Max. 5.8 W
- Material Metal
- Dimension 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
- Weight Approx. 570 g (1.26 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Approval
- Protection IP67
