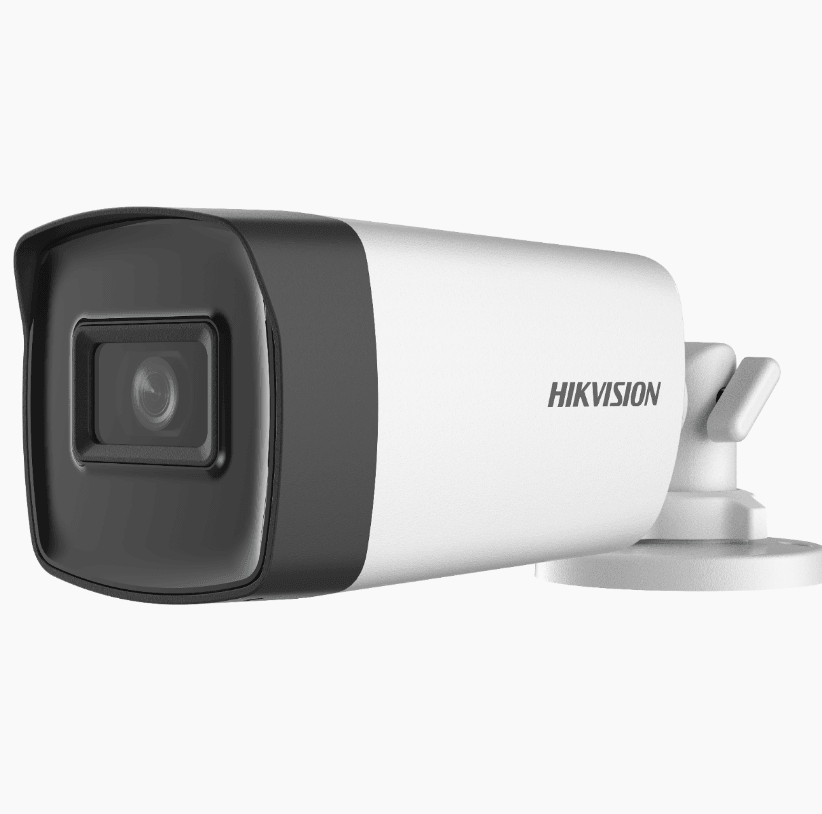

HIKVISION 5MP TVI BULLET 2.8MM DS-2CE17H0T-IT1F
DS-2CE17H0T-IT1F(2.8mm)(C)
Experience high-quality imaging with the HIKVISION 5MP TVI BULLET 2.8MM DS-2CE17H0T-IT1F. With 5 MP, 2560 × 1944 resolution, and a range of 2.4 mm, 2.8 mm, 3.6 mm, or 6 mm fixed focal lenses, this camera captures every detail.
Featuring up to 30m IR distance for bright night imaging and the ability to switch between TVI/AHD/CVI/CVBS signals, this camera is versatile and reliable. Plus, its water and dust resistant design (IP67) ensures durability in any environment.
FEATURES:
-
High quality imaging with 5 MP, 2560 × 1944 resolution
-
2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
-
Up to 30 m IR distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Water and dust resistant (IP67)
SPECS:
- Camera
-
Image Sensor 5mp CMOS
-
Max. Resolution 2560 (H) × 1944 (V)
-
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
-
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens Mount M12
- Image
-
Image Parameters Switch STD/HIGH-SAT
-
Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image Enhancement DWDR/BLC/HLC/Global
- Noise Reduction Yes
-
White Balance Auto/Manual
-
AGC Yes
- Interface
-
Video Output TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Metal
Main Body: Plastic
- Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
- Weight Approx. 330 g (0.73 lb.)
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
-
Power Supply 12vdc ± 25%
-
Consumption
Max. 4.3 W
-
IR Range Up to 30 m
