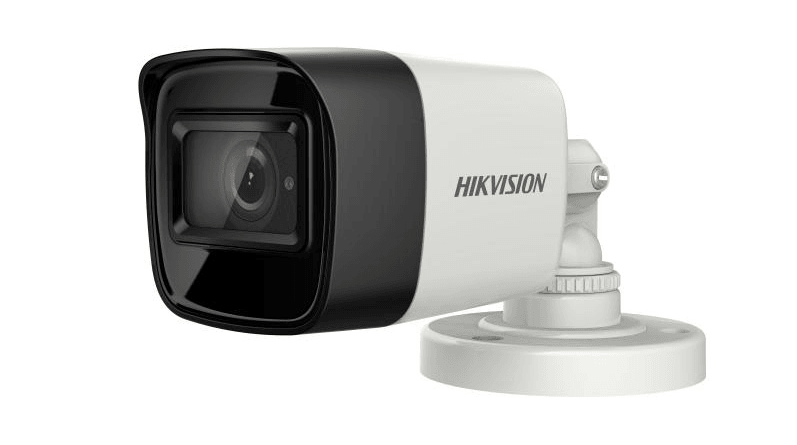

HIKVISION 5MP TVI BULLET 2.8MM DS-2CE16H8T-ITF
DS-2CE16H8T-ITF(2.8mm)
- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong backlighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5 megapixel progressive scan CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
- Lens Mount M12
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 30 m
- Image
- Image Settings Brightness;Sharpness;Mirror;Smart IR;AGC
-
Frame Rate
TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
CVI: 4 MP@25 fps, 4 MP@30 fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC
- Privacy Mask 4 programmable privacy masks
- Noise Reduction 3D DNR
- White Balance Auto/Manual
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS;1 HD analog output
- Event
- Motion Detection 4 programmable motion areas
- General
-
Power
12V DC ± 25%, max. 5.8 W
*You are recommended to use one power adapter to supply the power for one camera.
- Material Metal
- Dimension 58mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
- Weight Approx. 320 g (0.71 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
- Approval
- Protection IP67
HIKVISION 5MP TVI BULLET 2.8MM DS-2CE16H8T-ITF
DS-2CE16H8T-ITF(2.8mm)
- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong backlighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
SPECS:
- Camera
- Image Sensor 5 megapixel progressive scan CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
- Lens Mount M12
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 30 m
- Image
- Image Settings Brightness;Sharpness;Mirror;Smart IR;AGC
-
Frame Rate
TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
CVI: 4 MP@25 fps, 4 MP@30 fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image Enhancement BLC
- Privacy Mask 4 programmable privacy masks
- Noise Reduction 3D DNR
- White Balance Auto/Manual
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS;1 HD analog output
- Event
- Motion Detection 4 programmable motion areas
- General
-
Power
12V DC ± 25%, max. 5.8 W
*You are recommended to use one power adapter to supply the power for one camera.
- Material Metal
- Dimension 58mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
- Weight Approx. 320 g (0.71 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- Communication HIKVISION-C
- Language English
- Approval
- Protection IP67
