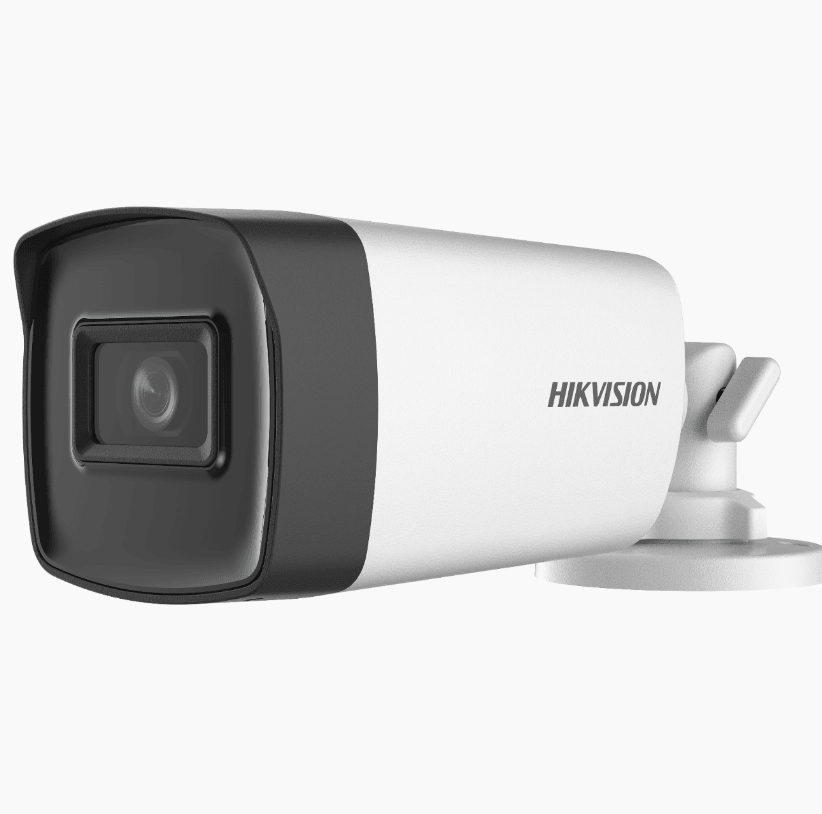

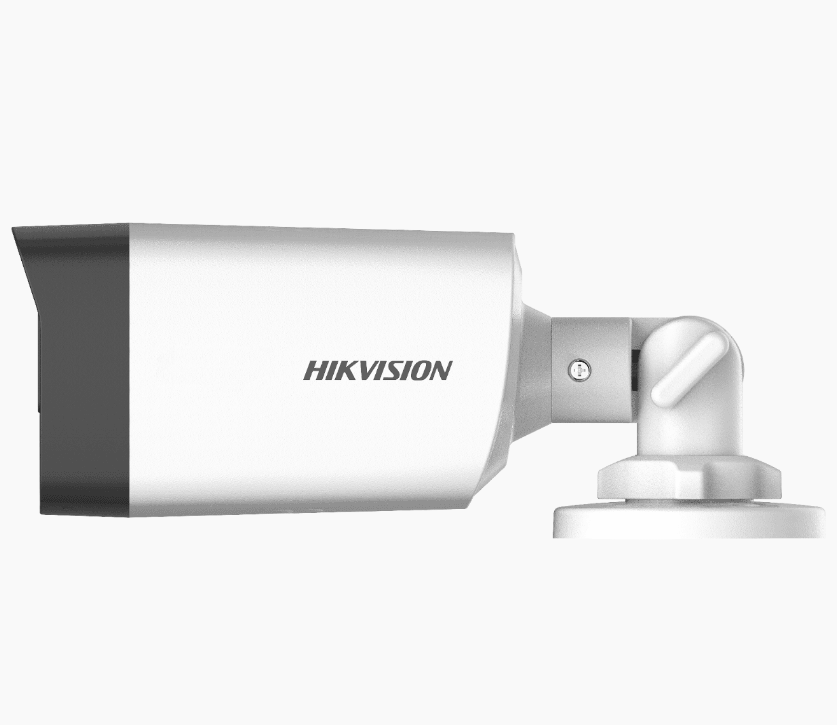

HIKVISION 5MP TVI BULLET 2.4MM DS-2CE17H0T-IT1F
HIKVISION 5MP TVI BULLET 2.4MM DS-2CE17H0T-IT1F
DS-2CE17H0T-IT1F(2.4mm)(C)
Experience exceptional imaging with the HIKVISION 5MP TVI BULLET 2.4MM DS-2CE17H0T-IT1F. Boasting a stunning 5 MP, 2560 × 1944 resolution and a range of fixed focal lenses (2.4 mm, 2.8 mm, 3.6 mm, and 6 mm), this camera delivers crystal clear footage.
With an impressive 30m IR distance for superior night vision, you can trust this camera to capture every detail. And with the convenience of one port for up to four switchable signals (TVI/AHD/CVI/CVBS), this camera is a versatile and essential addition to your security setup. Plus, its water and dust resistant (IP67) design ensures reliable performance in any weather.
FEATURES:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 30 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor 5mp CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens Mount M12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- Noise Reduction Yes
- White Balance Auto/Manual
- AGCYes
- Interface
- Video Output TVI/AHD/CVI/CVBS
- General
-
Material
Front Cover: Metal
Main Body: Plastic
- Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
- Weight Approx. 330 g (0.73 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply 12vdc ± 25%
-
Consumption
Max. 4.3 W
- IR Range Up to 30 m
- Approval
- Protection IP67
