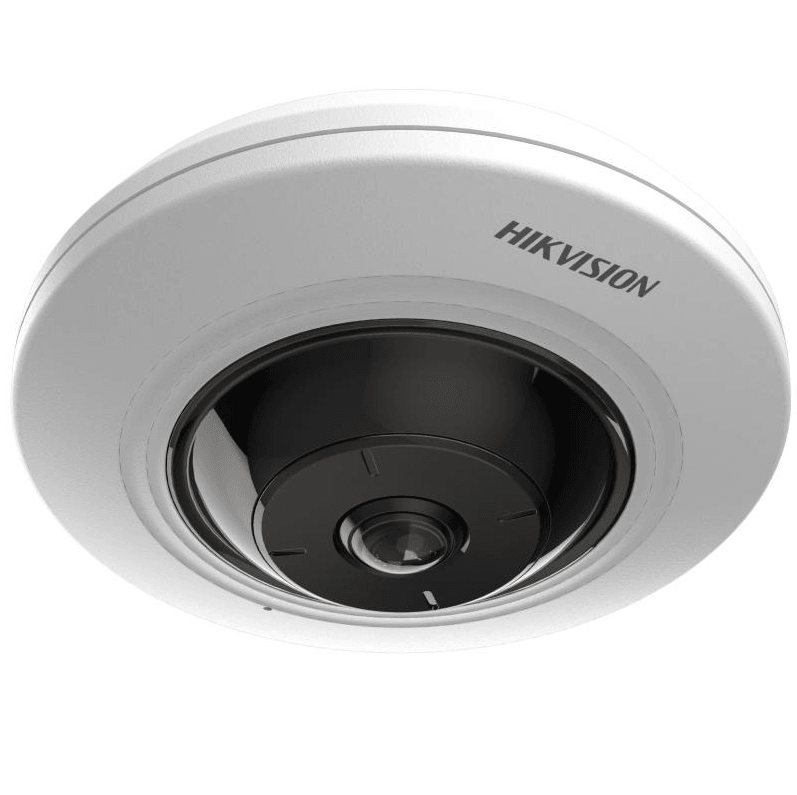

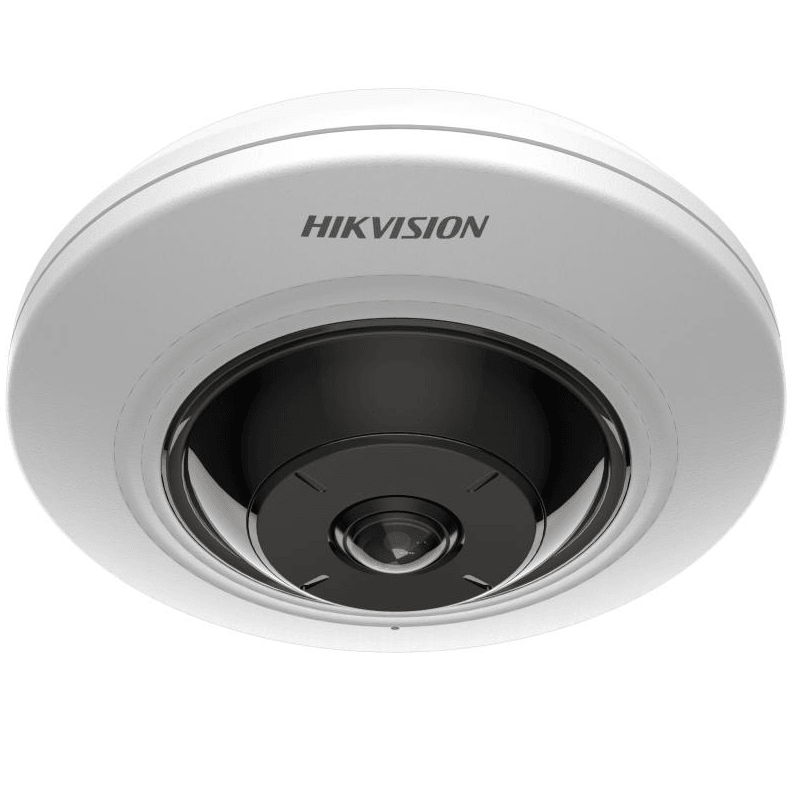

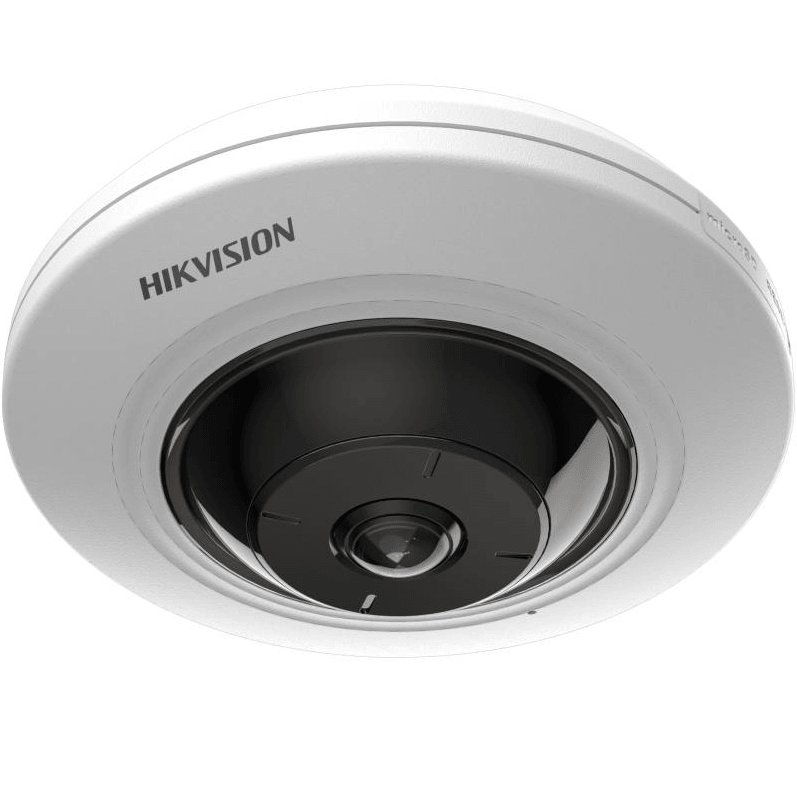

HIKVISION 5MP FIXED FISHEYE CAMERA
HIKVISION 5MP FIXED FISHEYE CAMERA
Experience clear, high-quality imaging with the HIKVISION 5MP FIXED FISHEYE CAMERA. This innovative camera boasts 5 MP resolution and utilizes advanced H.265+ compression technology for efficient storage.
With a 180° fisheye view and 120 dB true WDR technology, you can capture clear images even in strong backlight. Plus, the camera comes equipped with audio and alarm interfaces for added convenience and security. Elevate your surveillance game with this top-of-the-line camera.
FEATURES:
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- 180° fisheye view
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
SPECS:
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Max. Resolution 2560 × 1920
- Min. Illumination Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 1.05 mm
- Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
- FocusFixed
- Lens MountM12
- Iris TypeFixed
- ApertureF2.25
- Depth Of Field0.1 m to ∞
- DORI
- DORID: 21 m, O: 8 m, R: 4 m, I: 2 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 8 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps(2560 × 1920, 2048 × 1536, 1280 × 960)
60 Hz: 30 fps(2560 × 1920, 2048 × 1536, 1280 × 960)
-
Sub-Stream
50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Fisheye Display
- Mount TypeSupport wall/table/ceiling mounting
- Audio
- Audio TypeMono sound
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect,Hik-Central
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Web Browser
Plug-in required live view: IE 10+,
Local service: Chrome 57.0+, Firefox 52.0+
- Network StorageNAS (NFS, SMB/CIFS)
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,3D DNR
- Wide Dynamic Range (WDR)120 dB
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-In Microphone-U: Yes
-
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 12 VDC, 30 A)
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output
- General
-
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- MaterialADC12
- DimensionØ119.9 mm × 41.2 mm (Ø4.7" × 1.6")
- Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
- WeightApprox. 320 g (0.7 lb.)
- With Package WeightApprox. 500 g (1.1 lb.)
- Language13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,anti-banding,mirror,password protection
- Approval
-
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- EnvironmentCE-RoHS: 2011/65/EU
