HIKVISION 55I NCH 3.5MM LCD DISPLAY UNIT

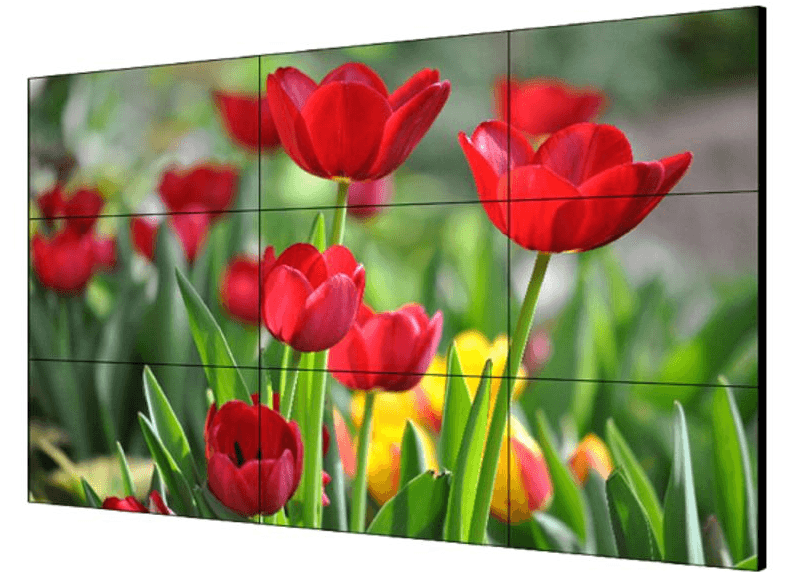

The HIKVISION 55I NCH 3.5MM LCD display unit utilizes an ultra-narrow bezel design commonly found in industrial settings to allow for a 3.5 mm width between neighboring displays. This is made possible by the direct-lit LED backlighting technology, resulting in a consistent and impressive brightness of 500 cd/m² across the entire display without any shadowing. With a variety of video input options including DVI, VGA, HDMI, and DP, this display offers ample flexibility for any setting.
FEATURES:
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
SPECS:
- Display
-
Screen Size55 inch
-
Active Display Area1209.6 (H) mm × 680.4 (V) mm
-
BacklightDirect-lit LED backlight
-
Pixel Pitch0.63 mm
-
Physical Seam3.5 mm
-
Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
-
Resolution1920 × 1080@60 Hz (downward compatible)
-
Brightness500 cd/m²
-
Viewing AngleHorizontal 178°, vertical 178°
-
Color Depth8 bit, 16.7 M
-
Contrast Ratio1200:1
-
Response Time8 ms
-
Color Gamut72% NTSC
-
Surface TreatmentHaze 25%, 3H
- Interface
-
Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
-
Video & Audio OutputHDMI × 1
-
Control InterfaceRS232 IN × 1, RS232 OUT × 1
- Power
-
Power Supply100-240 VAC, 50/60 Hz
-
Power Consumption≤ 245 W
-
Standby Consumption≤ 0.5 W
- Working Environment
-
Working Temperature0°C to 40°C (32°F to 104°F)
-
Working Humidity10% to 80% RH (non-condensing)
-
Storage Temperature-20°C to 60°C (-4°F to 140°F)
-
Storage Humidity10% to 90% RH (non-condensing)
- General
-
Casing MaterialSGCC
-
VESA600 (H) mm × 400 (V) mm
-
Product Dimension (W × H × D)1213.7 mm × 684.5 mm × 76.19 mm (47.78'' × 26.95'' × 3.00'')
-
Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
-
Net Weight24.3 ± 0.5 kg (53.6 ± 1.1 lb) for single display
-
Gross Weight42.9 ± 0.5 kg (94.6 ± 1.1 lb) for carton with a single display
-
Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
