HIKVISION 5"" 4MP 25X DARKFIGHTER IR PTZ


HIKVISION 5"" 4MP 25X DARKFIGHTER IR PTZ

R 11,368.00
Unit price  per
history

Safe & Secure Payment Options

HIKVISION 5"" 4MP 25X DARKFIGHTER IR PTZ

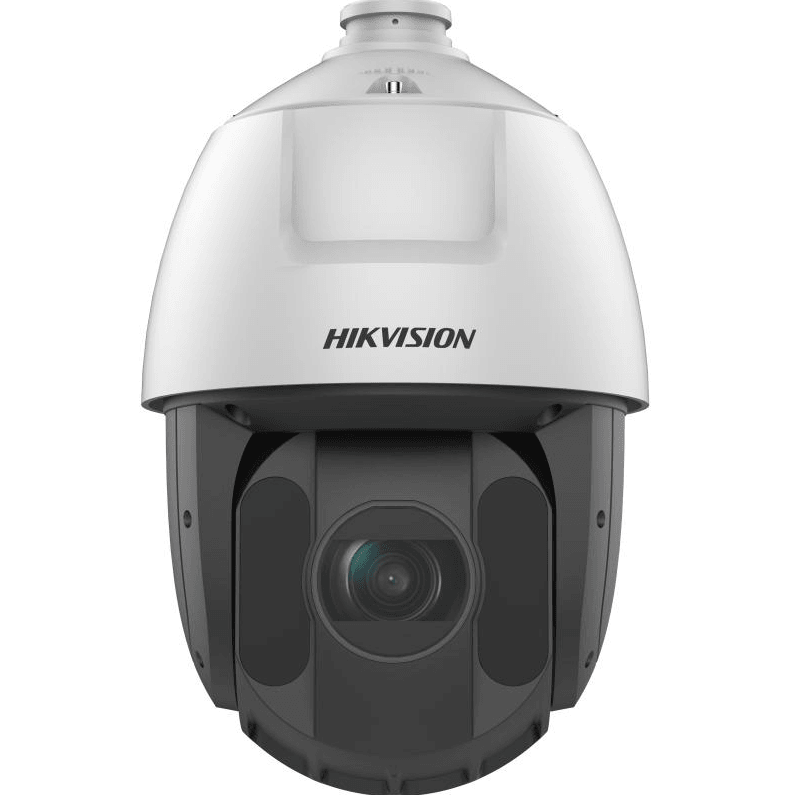

This HIKVISION 5"" 4MP 25X DARKFIGHTER IR PTZ is equipped with a 1/2.8" progressive scan CMOS chip and a 25× optical zoom lens. Its high-definition capabilities make it ideal for capturing expansive outdoor areas, including rivers, roads, railways, airports, squares, parks, and scenic spots. This versatile camera is perfect for various industries, such as logistics, transportation, urban planning, and tourism.

DORI

The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

FEATURES:

  • 1/2.8" Progressive Scan CMOS. High quality imaging with 4 MP resolution
  • Focuses on human and vehicle targets classification based on deep learning
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 150 m IR distance
  • 24 VAC & PoE (802.3at)
  • Efficient H.265+/H.265 compression technology

SPECS:

  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Zoom25x optional, 16x digital
  • Slow ShutterYes
  • Lens
  • Focal Length4.8 mm to 120 mm
  • FOV

    Horizontal field of view: 55° to 2.4° (wide-tele),

    Vertical field of view: 33° to 1.4° (wide-tele),

    Diagonal field of view: 61.5° to 2.8° (wide-tele)

  • FocusAuto, semi-auto, manual
  • ApertureMax. F1.6
  • Zoom SpeedApprox. 3.6 s
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeIR Distance: up to 150 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan SpeedPan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional PanYes
  • Presets300
  • Preset FreezingYes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Power-Off MemoryYes
  • Video
  • Main Stream

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile/Main profile/High profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserIE11, Chrome57+, Firefox52+, Safari11+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR>52 dB
  • DefogDigital Defog
  • Image StabilizationNo
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regional FocusYes
  • Regional ExposureYes
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Audio

    1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

    1 output (line out), line level, output impedance: 600 Ω

  • Alarm2 inputs, 1 output
  • ResetYes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
  • Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • General
  • Power24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
  • DimensionØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
  • WeightApprox. 3.0 kg (6.61 lb.)
  • MaterialMetal
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • DemistYes
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1);

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014/A11:2017)

  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
