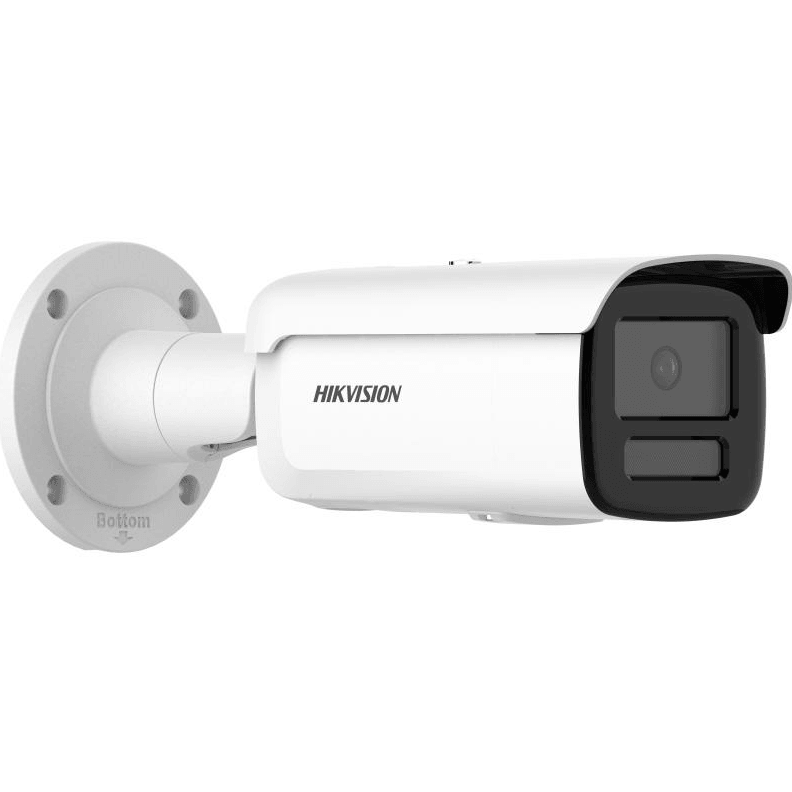

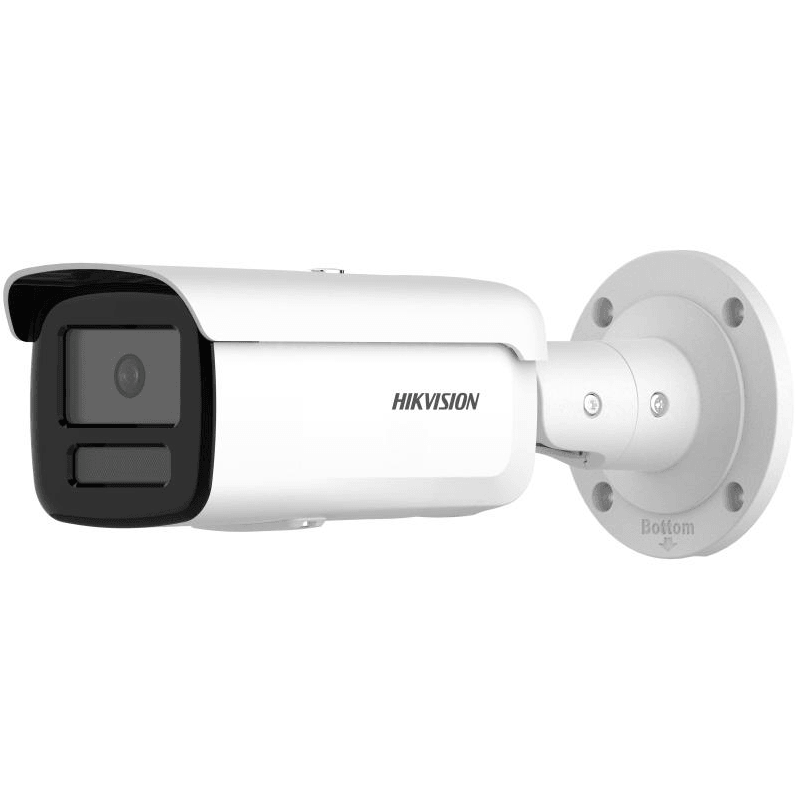

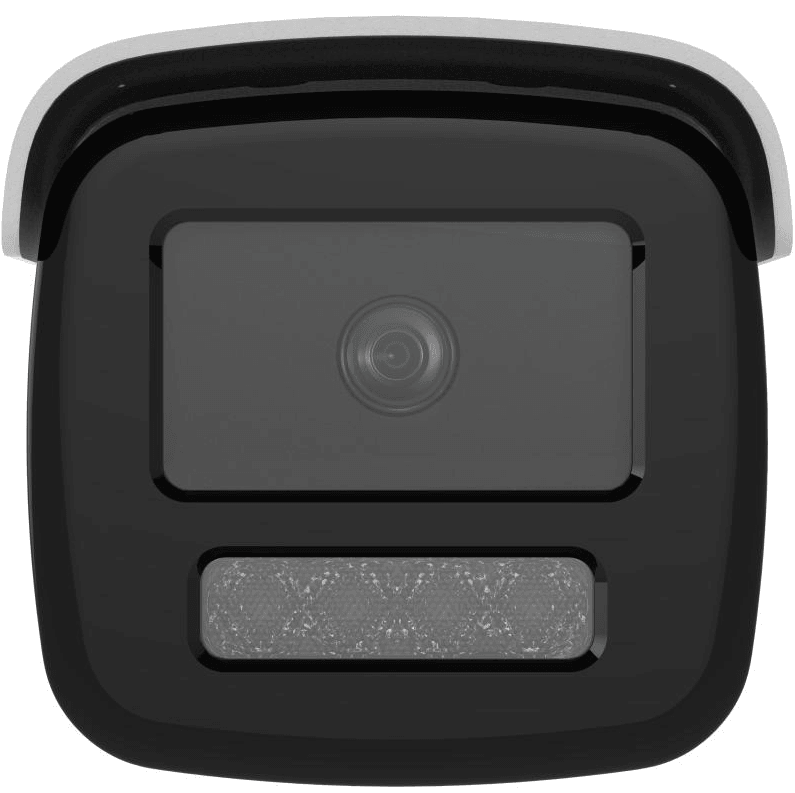

HIKVISION 4MP DARKFIGHTER BULLET CAMERA 4MM
HIKVISION 4MP DARKFIGHTER BULLET CAMERA 4MM
Using cutting-edge deep learning algorithms, Hikvision AcuSense technology revolutionizes surveillance by specifically detecting and classifying human and vehicle targets. This advanced system greatly enhances alarm efficiency and effectiveness for both front- and back-end devices. Experience the power of the HIKVISION 4MP DARKFIGHTER BULLET CAMERA 4MM.
FEATURES:
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
SPECS:
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
-
Depth Of Field
2.8 mm: 1.9 m to ∞
4 mm: 2.5 m to ∞
- DORI
-
DORI
2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range2I: up to 60 m; 4I: up to 80 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Keyes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event Scene change detection
- Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Face Capture Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power-2I: 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W; -4I: 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12 W
- Material Front cover: Metal, body: Metal, bracket: Metal
- Dimension286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
- Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight Approx. 1085 g (2.4 lb.)
- With Package Weight Approx. 1639 g (3.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU
- Protection IP67: IEC 60529-2013
