Description

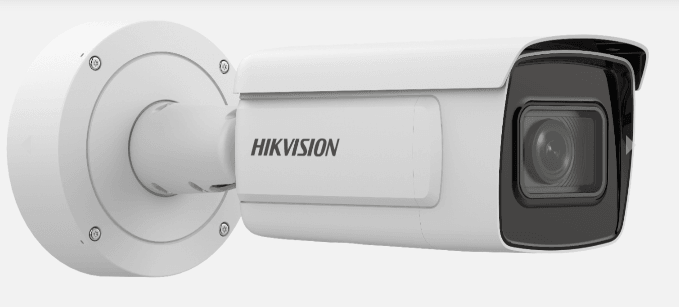

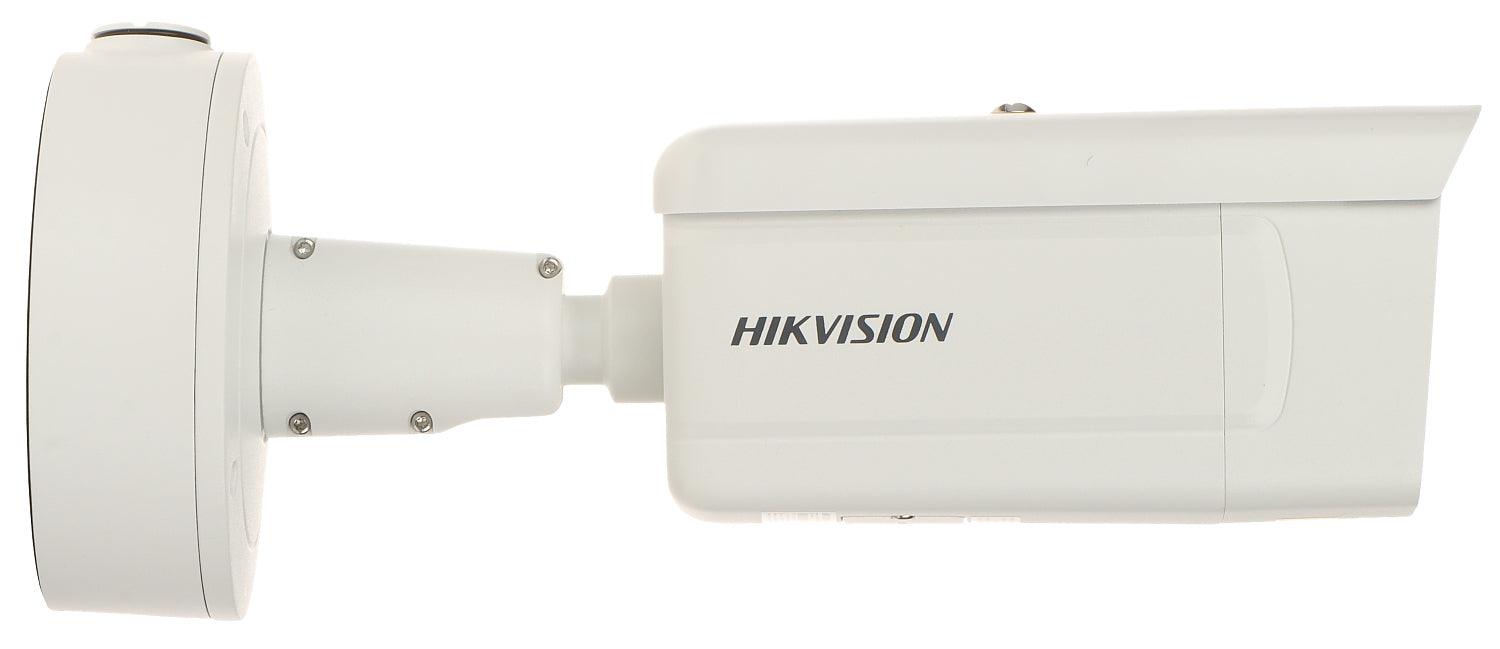

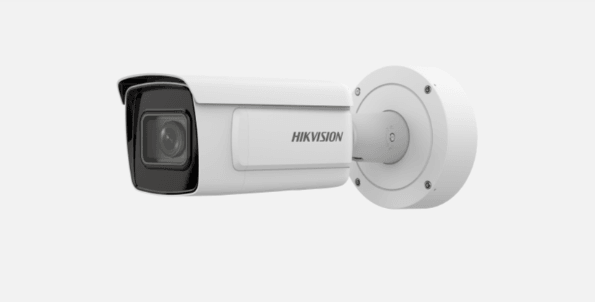

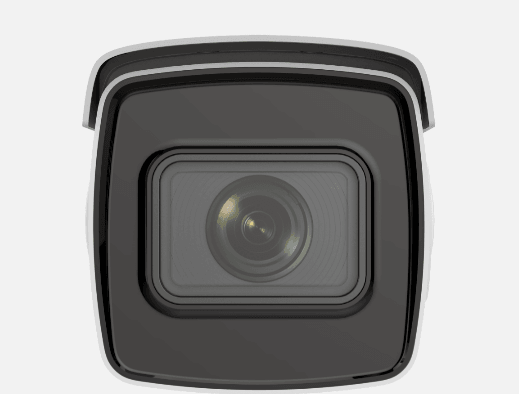

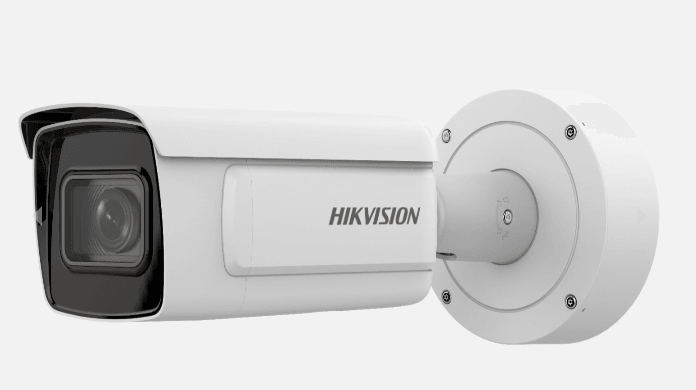

The 4MP DeepinView ANPR (Automatic Number Plate Recognition) Moto Varifocal Bullet Camera is a surveillance camera that is designed for use in various security and surveillance applications. It features a 4-megapixel image sensor for high-resolution video recording, a varifocal lens that allows for adjustable zoom and focus, and ANPR technology for automatically recognizing and recording license plate numbers. The camera is designed for use in outdoor environments and is housed in a weather-resistant bullet-style housing for protection against the elements.
Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
Technical Specifications :
Camera
-
Image Sensor1/1.8" Progressive Scan CMOS
-
Max. Resolution2688 × 1520
-
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time1 s to 1/100,000 s
-
Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
-
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
-
FocusAuto, semi-auto, manual
-
Iris TypeP-iris
-
Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
DORI
Wide:
2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele:
2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Illuminator
-
Supplement Light TypeIR
-
Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
-
Smart Supplement LightYes
-
IR Wavelength850 nm
Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Fourth Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
-
Video Bit Rate32 Kbps to 8 Mbps
-
H.264 TypeBaseline Profile,Main Profile,High Profile
-
H.265 TypeMain Profile
-
Bit Rate ControlCBR,VBR
-
Scalable Video Coding (SVC)H.265 and H.264 encoding
-
Region Of Interest (ROI)4 fixed regions for each stream
-
Target CroppingYes
Audio
-
Audio TypeMono sound
-
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
-
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Environment Noise FilteringYes
Network
-
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
-
Simultaneous Live ViewUp to 20 channels
-
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
-
User/HostUp to 32 users. 3 user levels: administrator, operator and user
-
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
-
ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
-
Image Parameters SwitchYes
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
-
Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger, Video Trigger
-
Wide Dynamic Range (WDR)140 dB
-
SNR≥ 52 dB
-
Image EnhancementBLC, HLC, Defog, 3D DNR
-
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
-
Image StabilizationEIS

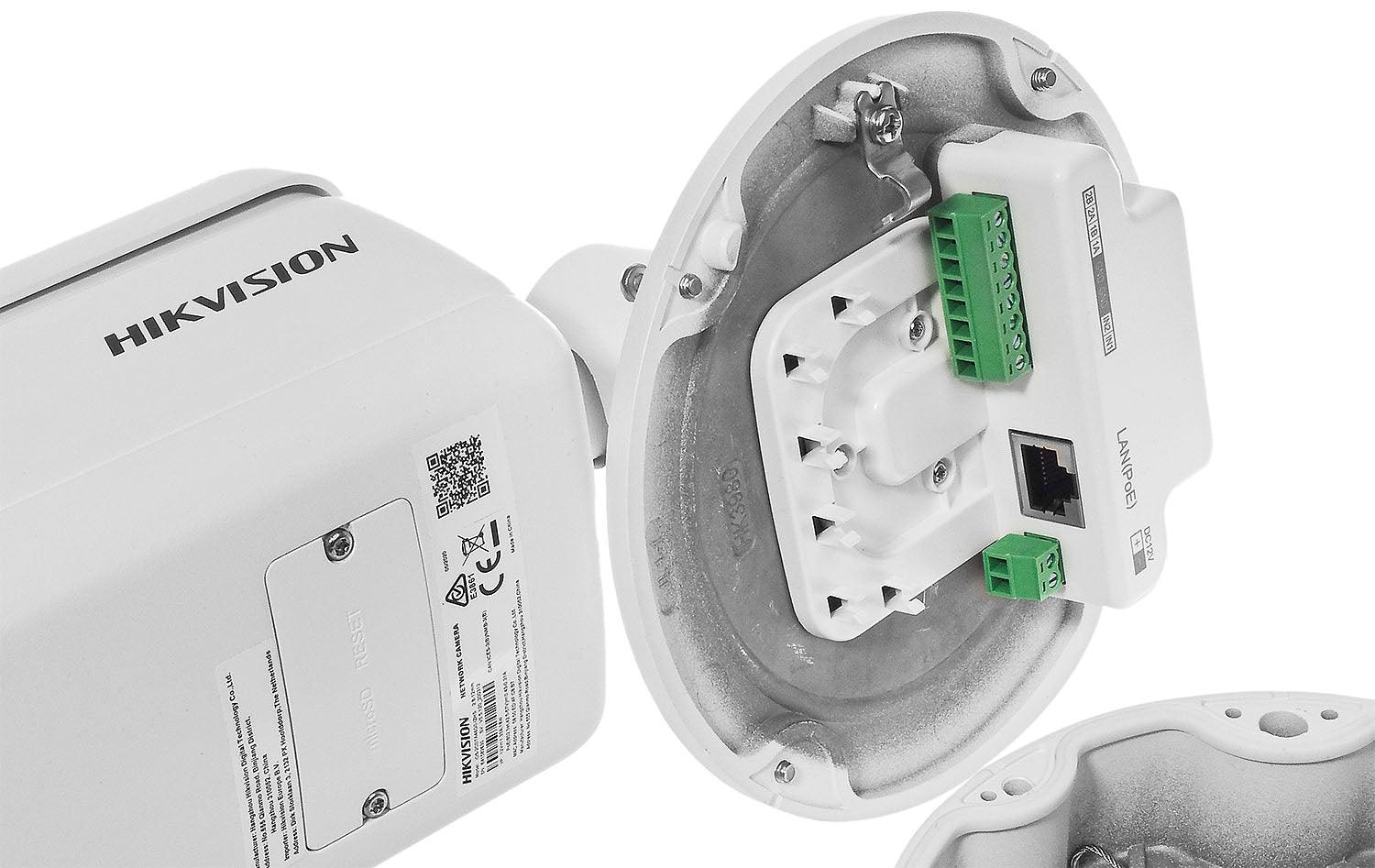

Interface
-
Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
-
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
-
AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
-
Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
-
RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
-
Reset KeyYes
-
Power OutputWith -Y: 12 VDC, max. 100 mA
-
Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
Event
-
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
-
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
-
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types
-
Road Traffic And Vehicle Detection
Blocklist and allowlist: up to 10,000 records
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
License plate recognition rate ≥98%
-
Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
What's in the box :
1 X Hikvision 4MP ANPR Number Plate Camera
