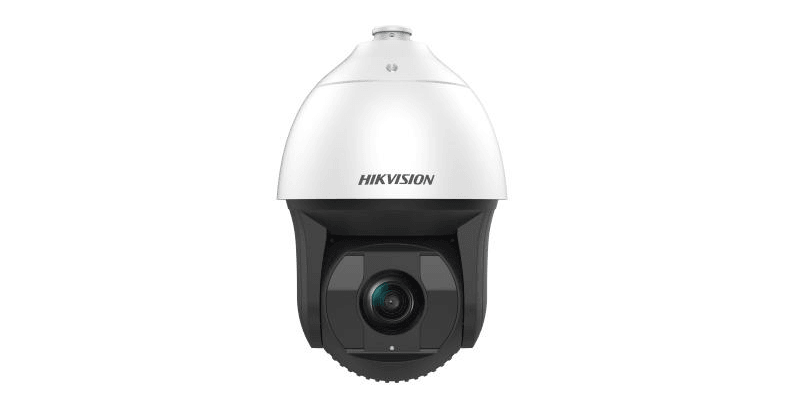

HIKVISION 4MP 25X ZOOM IR PTZ CAMERA
HIKVISION 4MP 25X ZOOM IR PTZ CAMERA
This 8-inch, 4 MP 25X DarkFighter IR Network Speed Dome features a 1/1.8" Progressive Scan CMOS, providing high quality imaging with 4 MP resolution. With DarkFighter technology, it offers excellent low-light performance.
The camera boasts 25× optical zoom and 16× digital zoom, perfect for capturing close-up views over expansive areas. It also has an expansive night view with up to 400 m IR distance. Additionally, this camera is water and dust resistant (IP67) and vandal resistant (IK10) excluding the glass window, ensuring durability in outdoor settings.
Furthermore, it supports face capture to detect, capture, grade, and select faces in motion, as well as road traffic to detect vehicles.
FEATURES:
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
SPECS:
- Camera
- Image Sensor1/1.8" progressive scan CMOS
- Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ ((F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom25x optical, 16x digital
- Max. Resolution2560 × 1440
- Lens
- FocusAuto, semi-auto, manual, rapid focus
- Focal Length5.9 mm to 147.5 mm
- Zoom SpeedApprox. 4.8 s (optical, wide-tele)
-
FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
- ApertureMax. F1.5
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 400 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-Off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
-
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)140 dB WDR
- Image StabilizationYes. Built-in gyroscope to improve EIS performance.
- Regional ExposureYes
- Regional FocusYes
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
- On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
- Basic EventMotion detection, video tampering alarm, alarm input and output
- Smart EventLine crossing detection, region entrance detection, parking detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
- Smart TrackingManual tracking, auto-tracking
- Deep Learning Function
- Face CaptureDetects up to 30 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Road Traffic And Vehicle Detection
- Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- General
- General FunctionMirror, password protection, watermark, IP address filter
- Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- Dimension⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
- WeightApprox. 8 kg (17.64 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)
-
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002), Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
