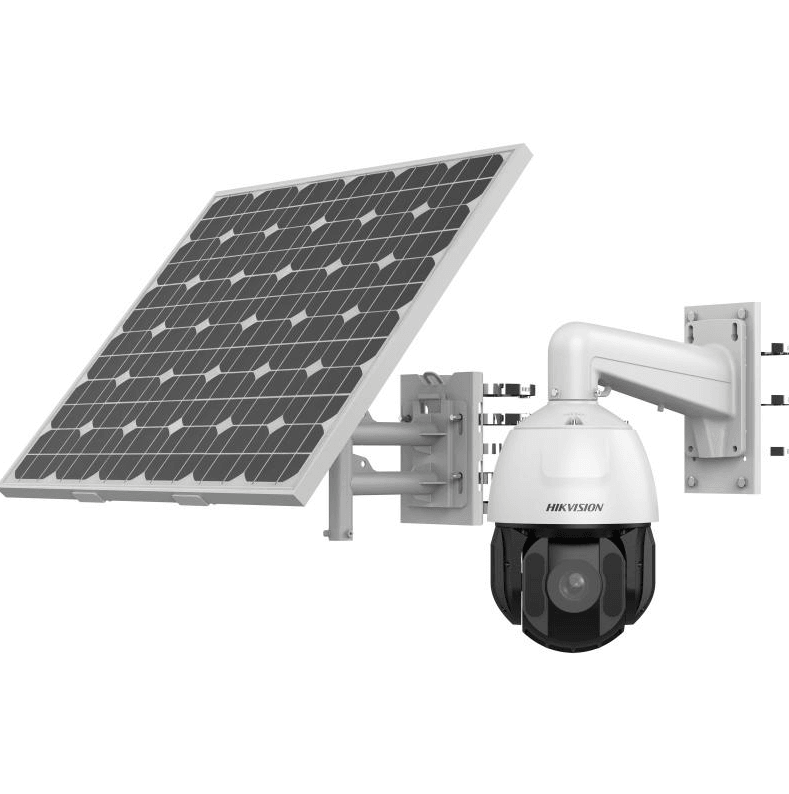

HIKVISION 4MP 25X PRO SOLAR PTZ CAMERA KIT

This HIKVISION 4MP 25X PRO SOLAR PTZ CAMERA KIT offers both performance mode and low power mode for optimal usage. In low power mode, the consumption is only 3 W, and in sleep mode it decreases to 0.3 W. With a built-in heating glass, the camera effectively defogs for clear images. It is also water and dust resistant (IP66), making it suitable for various environments.

Additionally, the camera has a built-in eMMC storage up to 256 GB and supports Wi-Fi AP for short-distance debugging. Please note that the Wi-Fi function only operates in AP mode on Channel 11 and does not support other modes or channels. Furthermore, it can be powered by a reverse power supply of 12 V 1 A and has an expansive night view of up to 120 m with IR distance.

FEATURES:

• Supports performance mode and low power mode. The consumption is 3 W in low power mode, and 0.3 W in sleep mode.
• Built-in heating glass for effective defog
• Water and dust resistant (IP66)
• The built-in eMMC storage is up to 256 GB.
• Supports Wi-Fi AP for short-distance debugging;The Wi-Fi function of the device only works as AP mode on Channel 11, no other modes and channels are supported
• Supports 12 V 1 A reverse power supply
• Expansive night view with up to 120 m IR distance

SPECS:

• Camera
• Image Sensor1/2.8" progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. Illumination color: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
• Shutter Speed1 s~1/30,000 s
• Day & Night IR cut filter
• Zoom25 × optical,16 × digital
• Slow Shutter yes
• HLCyes
• 3D DNR eyes

• Lens
• Focal Length4.8 mm~120 mm
• FOV

  Horizontal field of view: 55° to 2.4° (wide-tele),

  Vertical field of view: 33° to 1.4° (wide-tele),

  Diagonal field of view: 61.5° to 2.8° (wide-tele)

• Focus semi-auto||manual||auto
• ApertureF1.6
• Zoom Speedapprox.3.6s

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range200m

• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speed pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Payne's
• Presets300
• Preset Freezing yes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-Off Memoryyes

• Video
• Main Stream

  50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

  60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

• Sub-Stream

  50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

• Third Stream

  50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

• Video Compression.265||H.264||MJPEG
• H.264 Type Baseline Profile||Main Profile||High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)yes
• Region Of Interest (ROI)fixed region

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filtering yes

• Network
• ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
• APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
• User/Host32
• Security Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network Storage NAS (NFS, SMB/ CIFS)
• ClientiVMS-4200
• Web Browser Chrome 57+、Firefox 52+、Safari 12+||IE10-11

• Wireless (Wi-Fi)
• Wireless Range Up to 20 m (The performance varies based on actual environment)

• Wireless (Mobile Communication)
• FrequencyLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
• Standard LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH

• Image
• Image Parameters Switch yes
• Image Settings saturation||brightness||contrast||sharpness
• Day/Night Switch Day||night||auto||scheduled-switch
• Wide Dynamic Range (WDR)yes
• SNR＞52dB
• Defogyes
• Image EnhancementBLC
• Privacy Maskup to 24 masks||mask color configurable
• Regional Focusyes
• Regional Exposureyes

• Interface
• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256GB
• Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm2 alarm inputs
• Reset yes
• Power Output12 VDC, max. 1000 mA

• Event
• Basic Eventmotion detection||alarm input||alarm output||video tampering alarm||exception
• Smart Eventface detection||intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection||audio exception detection
• Linkagepreset||patrol scan||pattern scan||alarm output||sending email||notify surveillance center|| upload to FTP||NAS video recording

• General
• Power12 VDC
• DimensionØ208 mm × 344.8 mm
• Weight

  Approx. 29.9 kg (65.9 lb.)

  With Package Weight:Approx. 35.3 kg (77.8 lb.)

• MaterialMetal
• Operating Condition-30℃ to 65℃ (-22°F to 149°F)
• Demistyes
• Power Consumption And CurrentMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

• Battery
• Battery TypeLithium
• Battery Voltage10.8 V
• Capacity360 WH (90 WH for each battery)
• Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Cycle LifetimeProactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
• Battery LifeMore than 500 cycles
• Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

• Approval
• ProtectionIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
