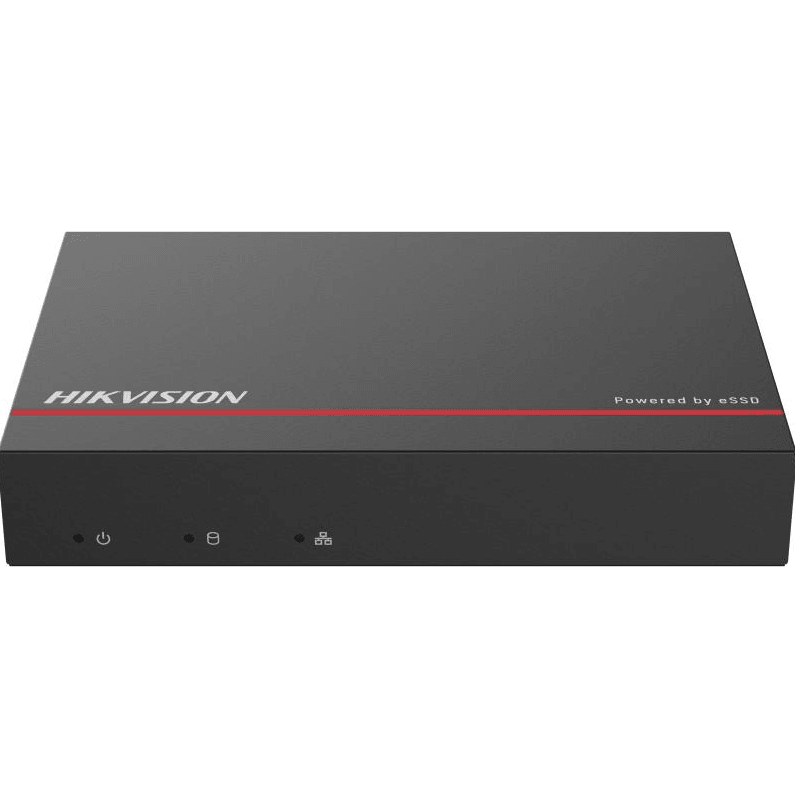

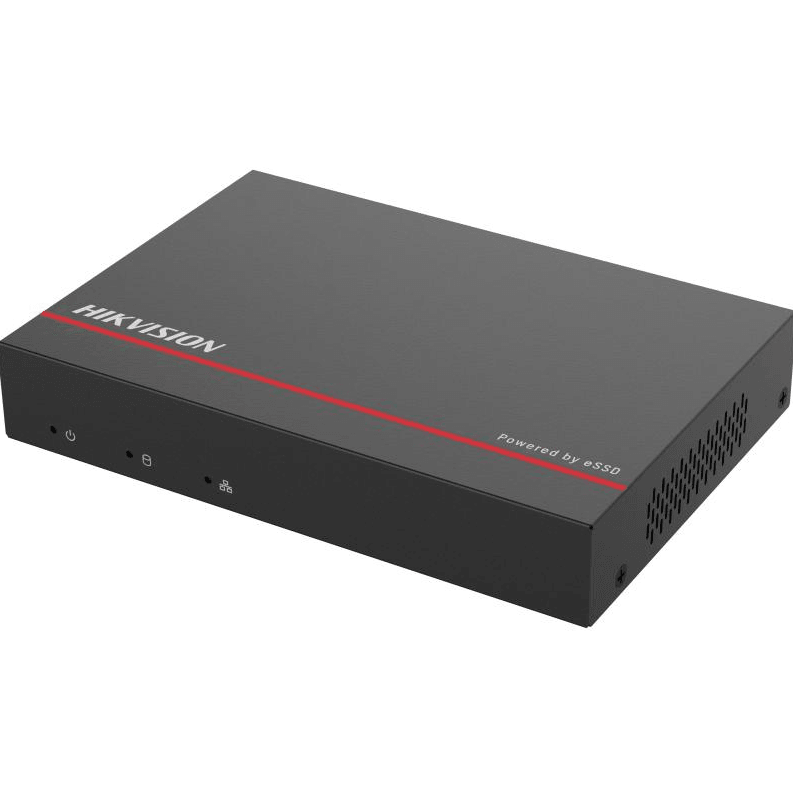

HIKVISION 4CH NVR DS-E04NI-Q1/4P
HIKVISION 4CH NVR DS-E04NI-Q1/4P
DS-E04NI-Q1/4P(SSD 1T)
The built-in SSD allows for low power consumption while its integrated storage design allows for plug-and-play use. The mini size design saves installation space and its anti-vibration design and light weight make it adaptable for various installation conditions. With H.265+ compression, storage space can be reduced by up to 75% and the device can record at full channel resolution of up to 4 MP.
Playback resolution options include 2-ch@4 MP or 4-ch@1080p, and the device has 4 independent PoE network interfaces and 1 self-adaptive 10/100 Mbps Ethernet interface for easy network management through Hik-Connect.
FEATURES:
- Powered by eSSD technology
- Low power consumption
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
SPECS:
- Video And Audio
- IP Video Input4-ch
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 60 Mbps
- HDMI Output1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 4-ch
- Decoding Capability 4-ch@1080p (25 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711 ulaw/G.711 alaw/G.722/G.726
- Network
- Remote Connection 128-ch
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 36 W
- Standard IEEE 802.3 af/at
- Auxiliary Interface
- Capacity 1TB SSD (pre-installed)
- USB Interface Rear panel: 2 × USB 2.0
- General
- Power Supply48VDC,1.04A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
- Weight≤ 0.39 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
HIKVISION 4CH NVR DS-E04NI-Q1/4P
DS-E04NI-Q1/4P(SSD 1T)
The built-in SSD allows for low power consumption while its integrated storage design allows for plug-and-play use. The mini size design saves installation space and its anti-vibration design and light weight make it adaptable for various installation conditions. With H.265+ compression, storage space can be reduced by up to 75% and the device can record at full channel resolution of up to 4 MP.
Playback resolution options include 2-ch@4 MP or 4-ch@1080p, and the device has 4 independent PoE network interfaces and 1 self-adaptive 10/100 Mbps Ethernet interface for easy network management through Hik-Connect.
FEATURES:
- Powered by eSSD technology
- Low power consumption
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
SPECS:
- Video And Audio
- IP Video Input4-ch
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 60 Mbps
- HDMI Output1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 4-ch
- Decoding Capability 4-ch@1080p (25 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711 ulaw/G.711 alaw/G.722/G.726
- Network
- Remote Connection 128-ch
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 36 W
- Standard IEEE 802.3 af/at
- Auxiliary Interface
- Capacity 1TB SSD (pre-installed)
- USB Interface Rear panel: 2 × USB 2.0
- General
- Power Supply48VDC,1.04A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
- Weight≤ 0.39 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
