Hikvision DS-7604NXI-K1/4P(D) — 4-Channel PoE AcuSense 4K NVR
Overview

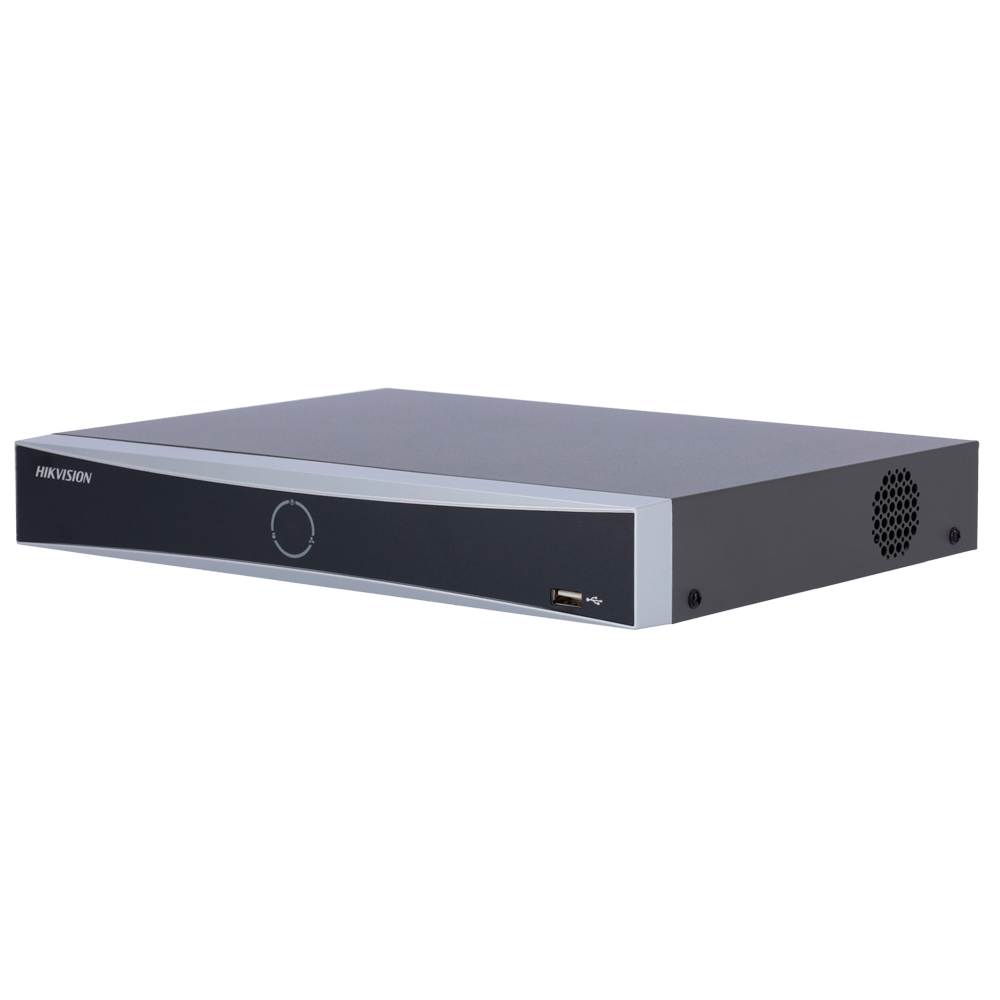

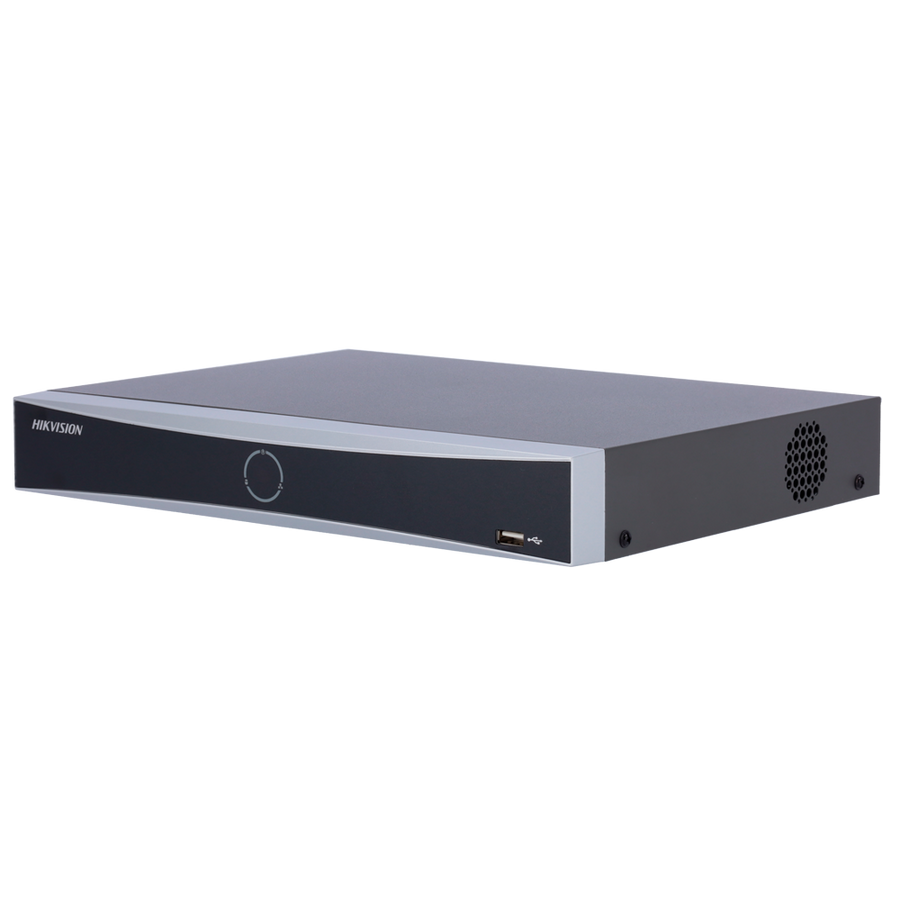

The DS-7604NXI-K1/4P(D) is a compact 4-channel network video recorder from Hikvision’s Pro-K Series, featuring built-in PoE for up to four IP cameras and advanced AcuSense analytics. With 4K HDMI output, efficient H.265+/H.265 compression and intelligent motion/person/vehicle detection, it's designed for smaller commercial sites, retail branches and offices where performance and simplicity matter.
Key Features & Benefits
- Supports up to 4 IP-camera inputs and includes 4 PoE ports for plug-and-play deployment.
- AcuSense intelligent analytics for human and vehicle classification, reducing false alarms.
- Decoding capability up to 2-channels @ 12 MP, 4-channels @ 8 MP or 16-channels @ 1080p (with AI off) — future-proofing for high-res cameras.
- 4K HDMI output and simultaneous VGA output for flexible local monitoring.
- Efficient compression (H.265+/H.265) helps to reduce storage space and network usage.
- Compact 1U design and low power consumption (≤10 W without HDD) — ideal for small installations.
Technical Specifications
-
IP Video Inputs: 4-channels
-
PoE Ports: 4 × RJ-45 10/100 Mbps (IEEE 802.3af/at) with PoE budget up to ~50 W
-
Incoming Bandwidth: Up to 40 Mbps
-
Outgoing Bandwidth: Up to 80 Mbps
-
Decoding Capability: With AI on: 2-ch @12 MP / 3-ch @8 MP / 6-ch @4 MP / 12-ch @1080p. With AI off: 2-ch @12 MP / 4-ch @8 MP / 8-ch @4 MP / 16-ch @1080p
-
Video Compression: H.265+, H.265, H.264+, H.264
-

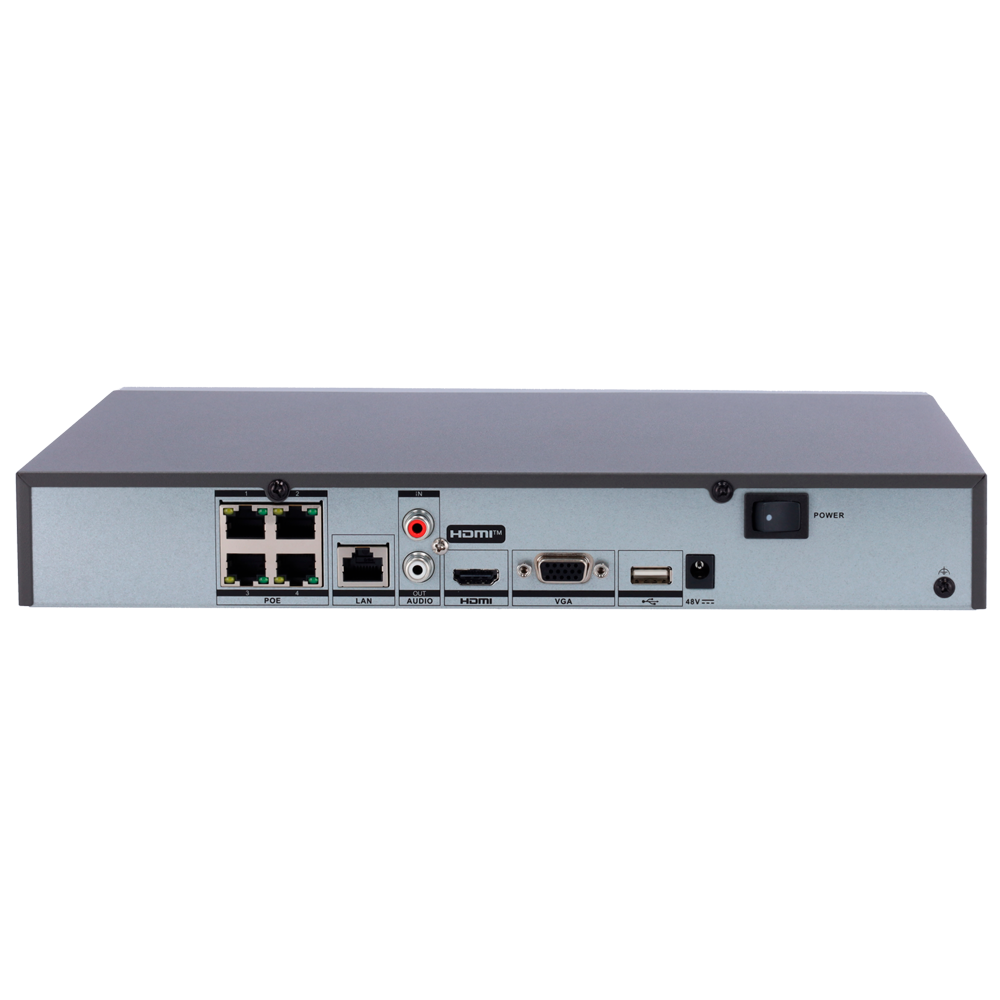

Video Outputs: 1 × HDMI (up to 4K) + 1 × VGA (up to 1080p) simultaneous
-
Storage Interface: 1 × SATA interface (HDD up to 16 TB supported)
-

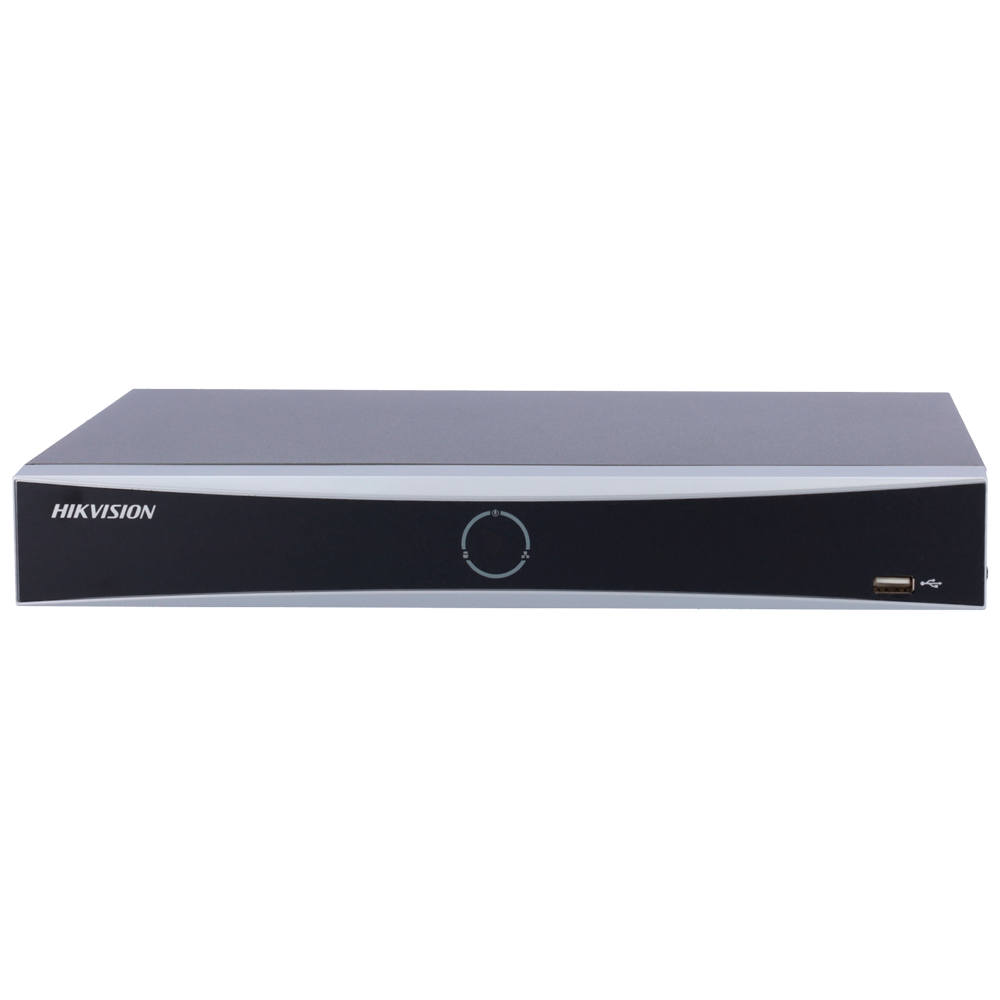

USB Interfaces: Front: 1 × USB 2.0; Rear: 1 × USB 2.0
-
Network Interface: 1 × RJ-45 10/100/1000 Mbps
-
Operating Power: 48 V DC, 1.35 A (≤10 W without HDD/PoE load)
-
Operating Temperature Range: -10 °C to +55 °C
-
Dimensions: 320 × 240 × 48 mm
Recommended Applications
- Small retail stores or boutiques needing PoE-integrated NVR and analytics.
- Office branches and frustrated users upgrading from analogue DVRs to IP with fewer channels.
- Sites where PoE convenience, compact footprint and intelligent detection are required without large channel count.
Installation Notes
- Ensure the four PoE ports' power budget aligns with the total camera power draw on site.
- Install in a well-ventilated rack or cabinet to preserve HDD lifespan and system stability.
- Update firmware at commissioning, enable secure access (change default password, enable HTTPS) and segregate the device on a secure network segment.
- Plan HDD capacity and retention schedule based on recording resolution, motion proportion and number of cameras.
- Review camera assignments and port labelling for future maintenance clarity.
