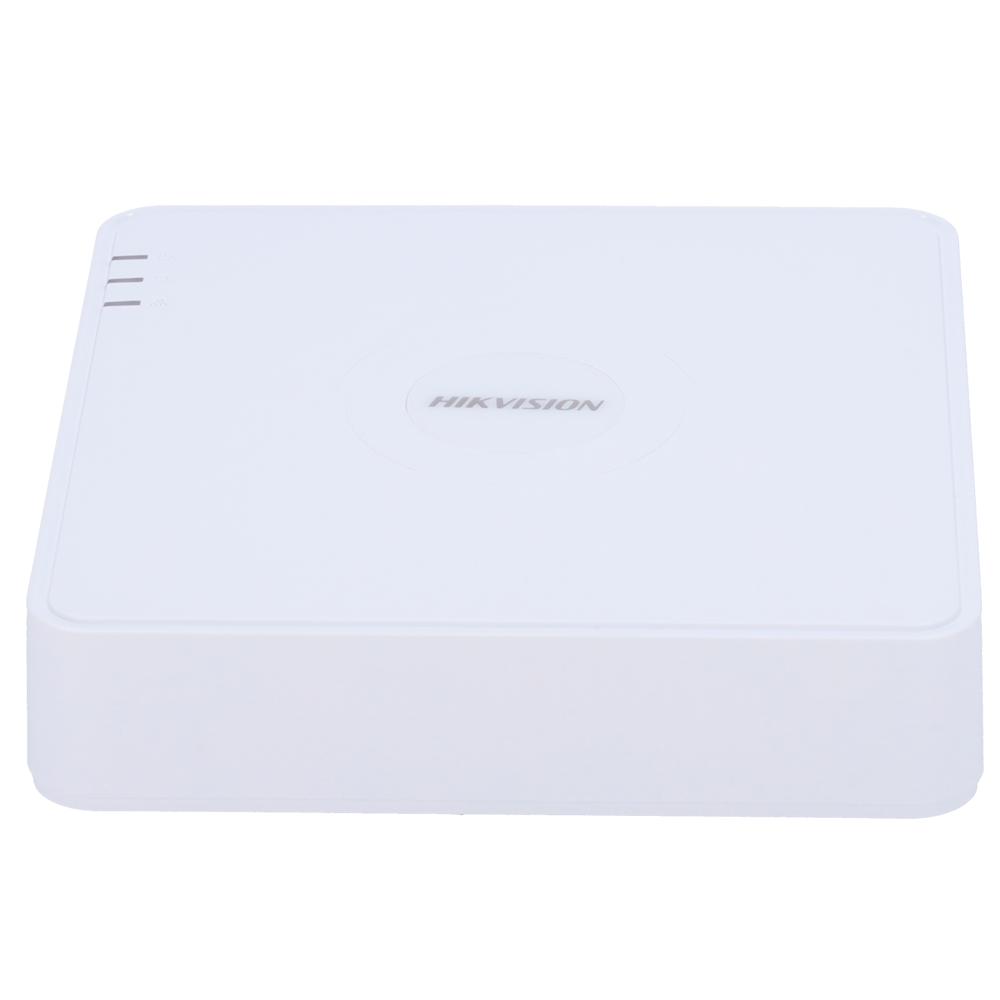

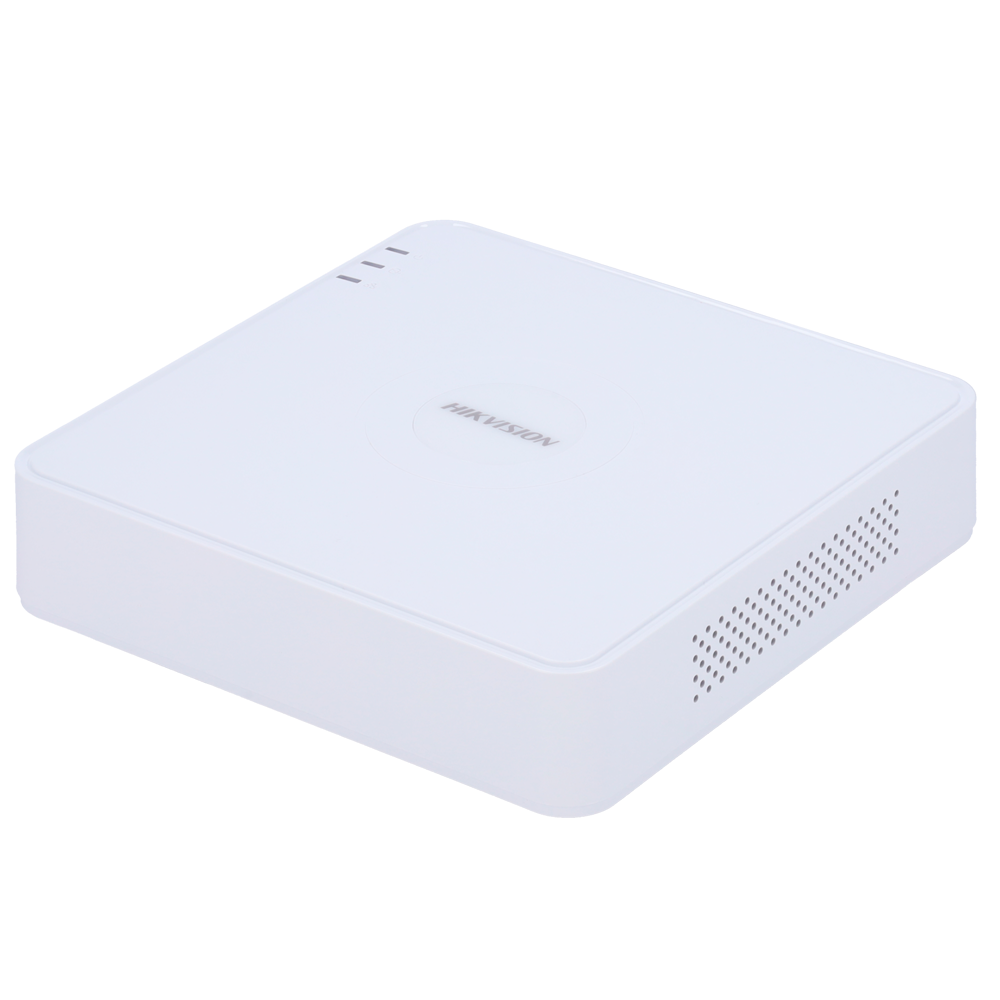

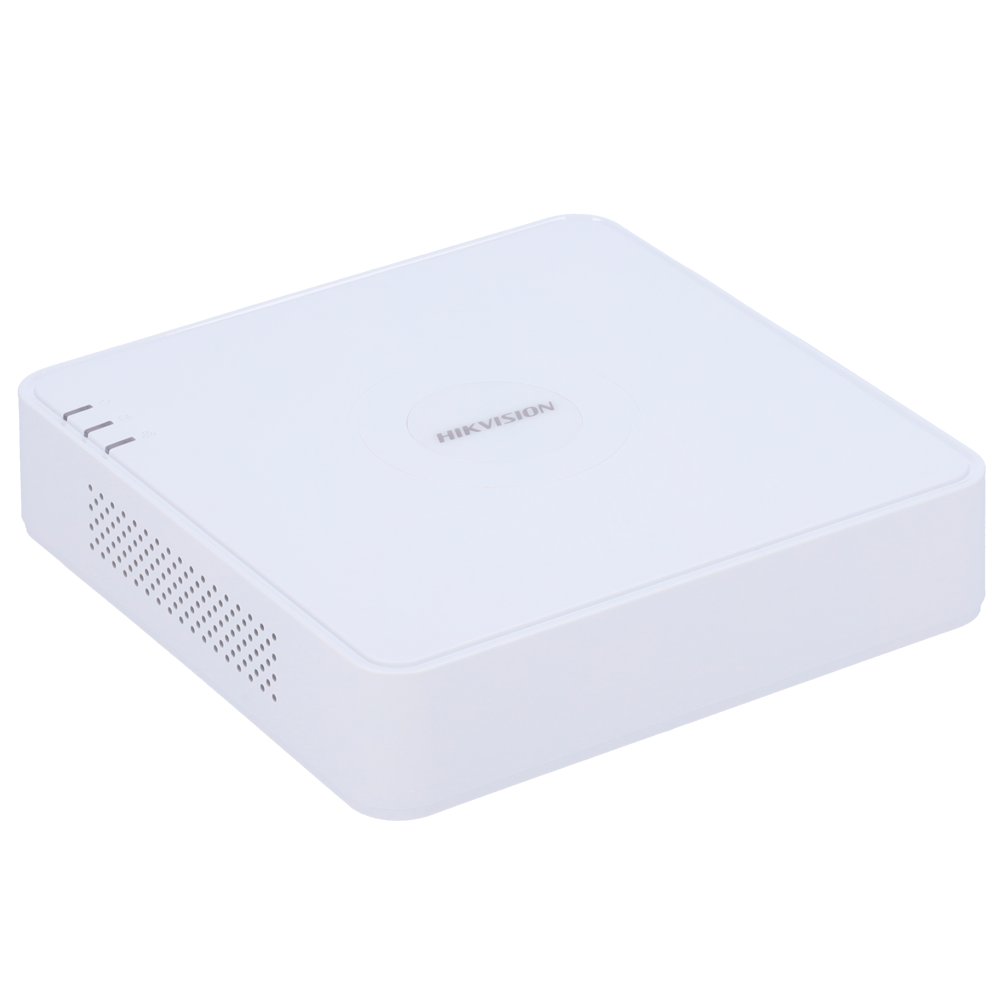

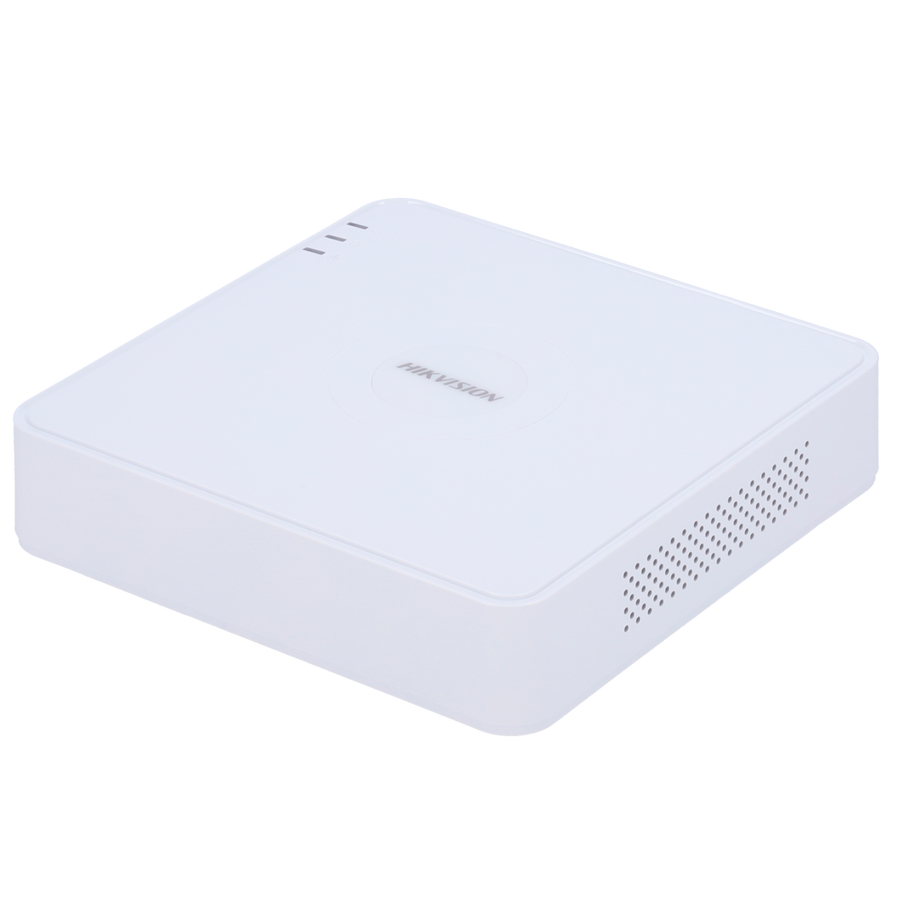

Hikvision DS-7104NI-Q1/4P – 4-Channel Mini PoE NVR
Overview
The Hikvision DS-7104NI-Q1/4P is a compact, efficient 4-channel network video recorder designed for small sites and retail branches in South Africa. It integrates four PoE ports to power IP cameras directly, supports modern H.265+/H.265 compression and offers simultaneous HDMI and VGA outputs for flexible monitoring. Ideal for stores, offices, kiosks and light commercial applications requiring dependable IP video recording.
Key Features & Benefits
- Supports up to 4 IP camera inputs, enabling active surveillance of smaller installations.
- Built-in 4 PoE ports simplify cabling and camera deployment (IEEE 802.3af/at standard).
- Efficient H.265+/H.265 compression reduces storage requirements and bandwidth usage.
- Incoming bandwidth of up to 40 Mbps and outgoing up to 60 Mbps ensure smooth video flow.
- Simultaneous HDMI and VGA outputs allow flexible monitor connection and on-site viewing.
- Single SATA interface supports large-capacity HDDs (up to 6 TB) for reliable storage.
- Compact mini 1U form factor fits under counters, in cabinets or behind shop displays.
Technical Specifications
-
IP Video Inputs: 4-ch, up to 6 MP resolution.
-
Incoming Bandwidth: 40 Mbps.
-
Outgoing Bandwidth: 60 Mbps.
-
Decoding Capability: 4-ch at 1080p (30 fps), or 2-ch at 4 MP (30 fps), or 1-ch at 6 MP (30 fps).
-
Video Compression: H.265+/H.265/H.264+/H.264.
-

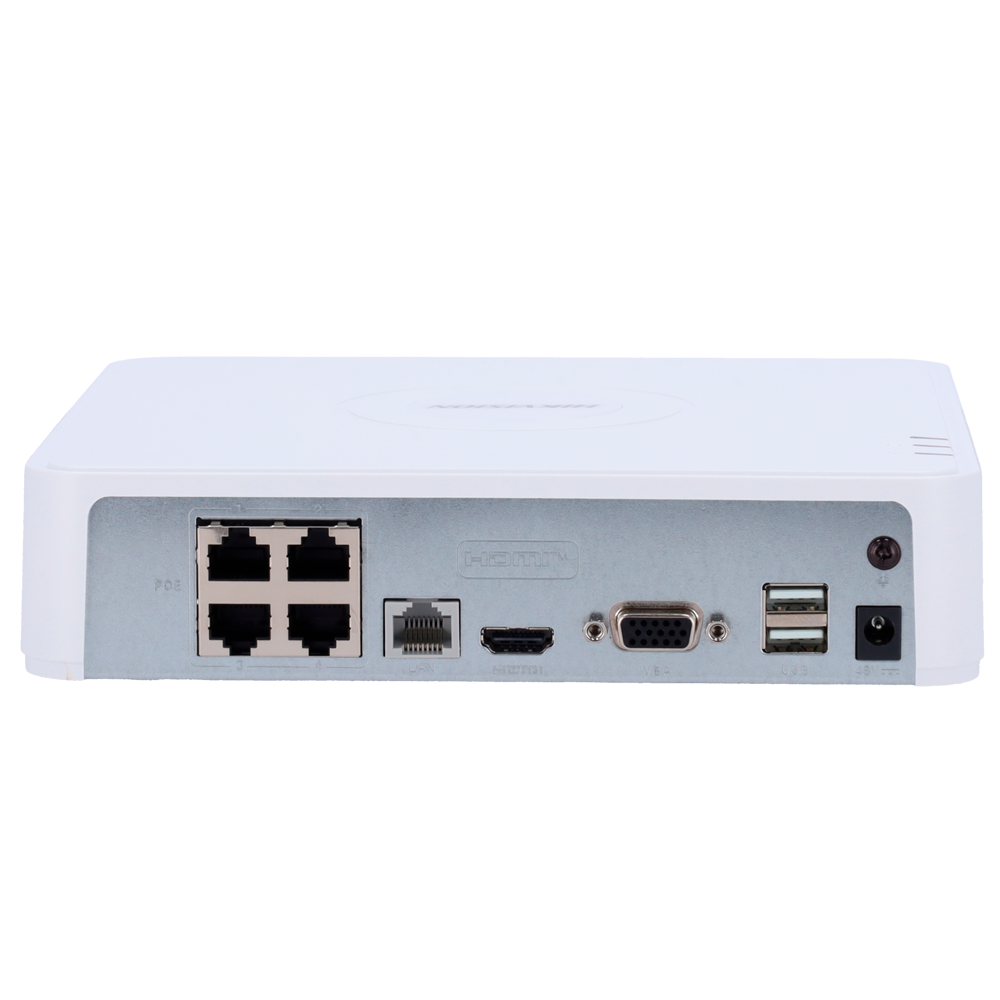

Video Outputs: HDMI (1-ch) and VGA (1-ch) simultaneous output.
-
PoE Ports: 4 × RJ-45 (10/100 Mbps) with IEEE 802.3af/at support, total PoE power budget ≤ 36 W.
-
SATA Interface: 1 × SATA, up to 6 TB HDD capacity.
-
USB Interfaces: 2 × USB 2.0 (rear panel).
-
Network Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port.
-
Power Supply: 48 V DC, 1 A. Typical power consumption ≤ 10 W (excluding HDD and PoE load).
-
Operating Temperature: -10 °C to +55 °C; Humidity: 10% – 90%.
-
Dimensions: 200 × 200 × 48 mm.
-
Weight: ≤ 1 kg (without HDD).
Recommended Applications
- Retail stores and boutiques with IP cameras and modest channel count.
- Office branches or reception areas where PoE simplifies camera installation.
- SMEs upgrading from analogue DVRs to IP surveillance while retaining budget control.
- Kiosks or small-footprint sites needing compact hardware with reliable recording.
Installation Notes
- Install the unit in a well-ventilated space to help HDD longevity and system stability.
- Confirm total camera PoE power consumption stays within the 36 W budget.
- Update firmware on first set-up and enable secure access with strong passwords.
- Set storage retention policies according to available HDD size and recording bandwidth.
- Label and document camera ports connected to PoE ports for future maintenance clarity.
