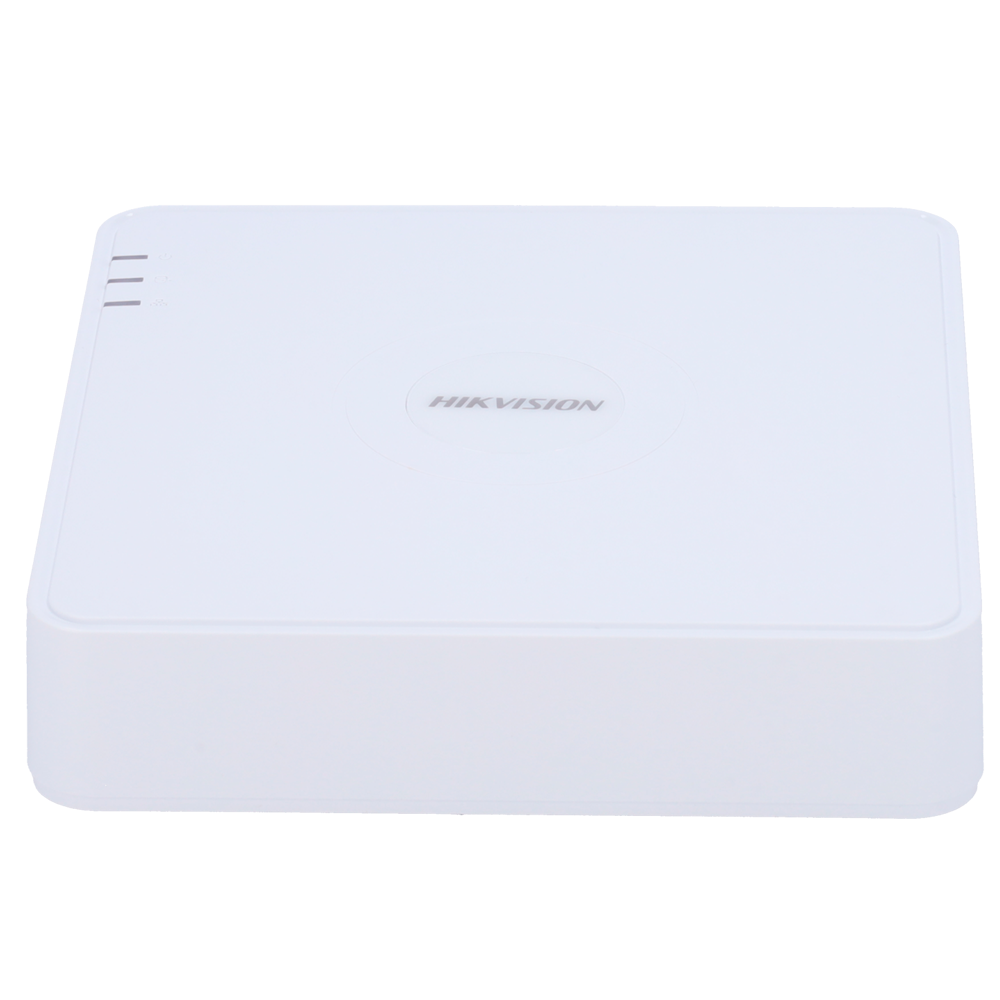

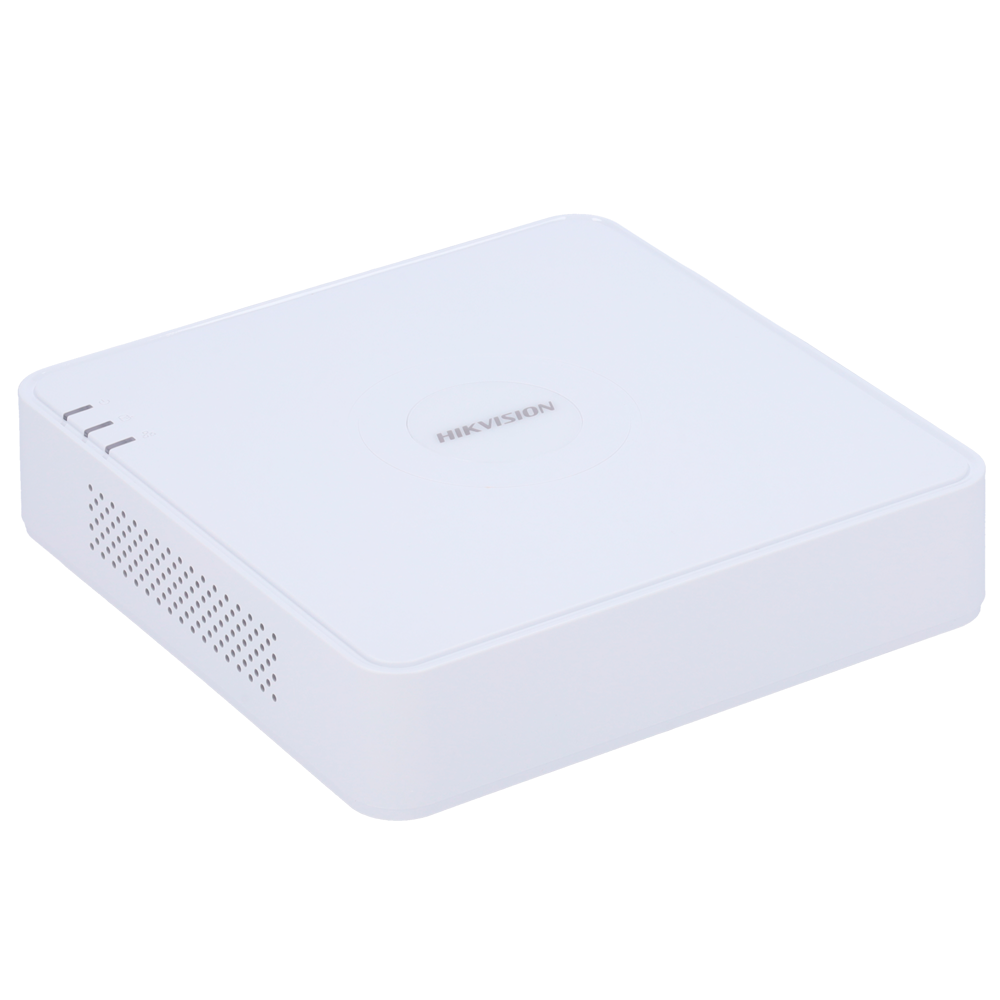

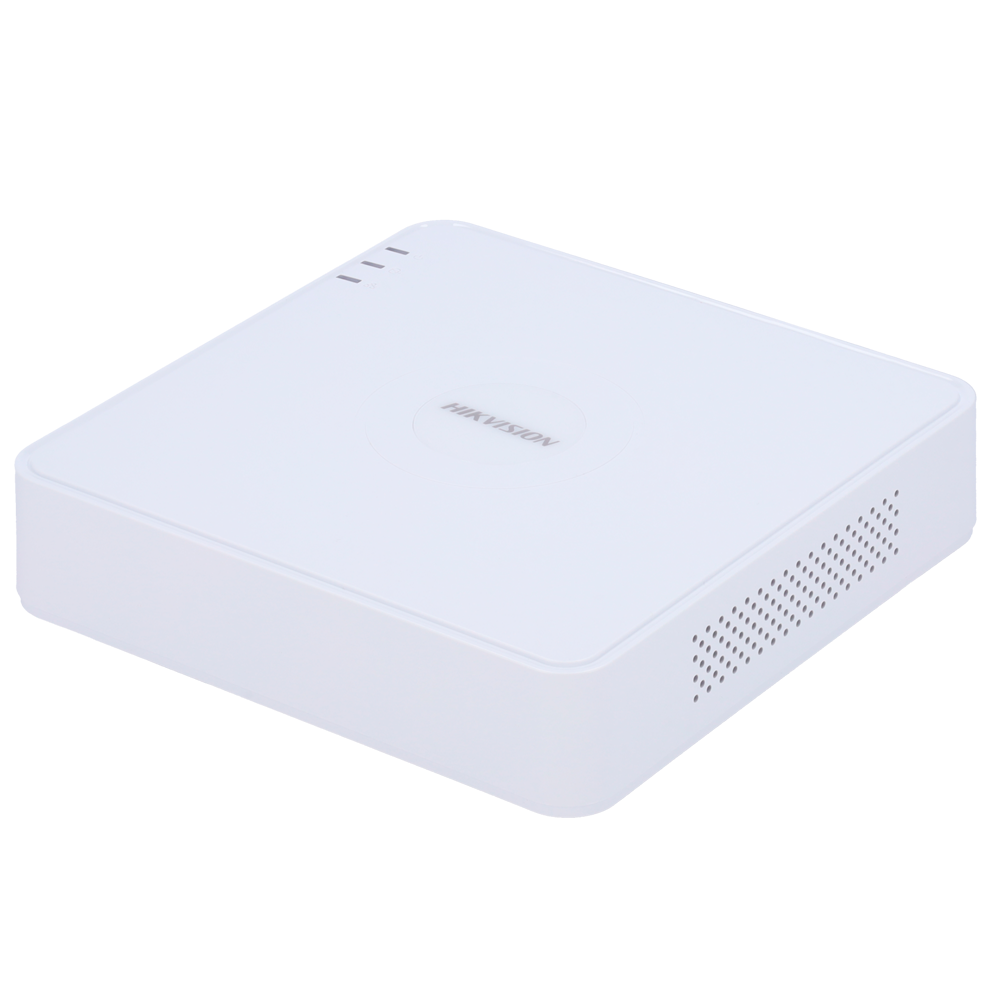

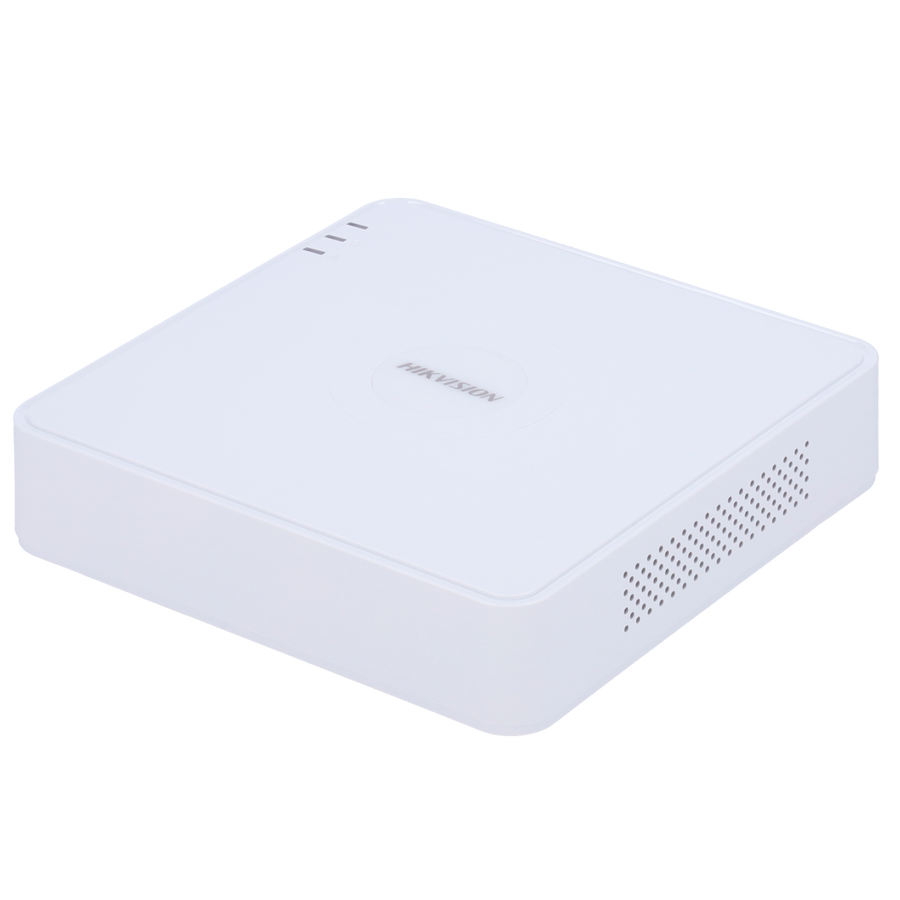

Hikvision DS‑7104NI‑Q1 — 4‑Channel Mini NVR (Non‑PoE)
Overview
The DS‑7104NI‑Q1 is a compact 4‑channel network video recorder designed for small shops, offices and branch sites. It records IP camera streams using efficient H.265/H.264 compression, offers simultaneous HDMI and VGA outputs for local monitoring and supports a single SATA drive for reliable on‑site storage.
Features & benefits
- Supports up to 4 IP camera channels — suitable for small installations.
- Efficient H.265+/H.265 compression reduces storage and bandwidth requirements.
- Simultaneous HDMI and VGA outputs for flexible local monitoring setups.
- Single SATA bay supporting up to 6 TB HDD for recording retention.
- Compact mini form factor — easy to install under counters or in small cabinets.
Technical specifications
-
Channels: 4 IP inputs
-
Incoming bandwidth: 40 Mbps
-
Outgoing bandwidth: 60 Mbps
-
Decoding capability: Up to 4‑ch @ 1080p (30 fps)
-
Video compression: H.265+, H.265, H.264+, H.264
-

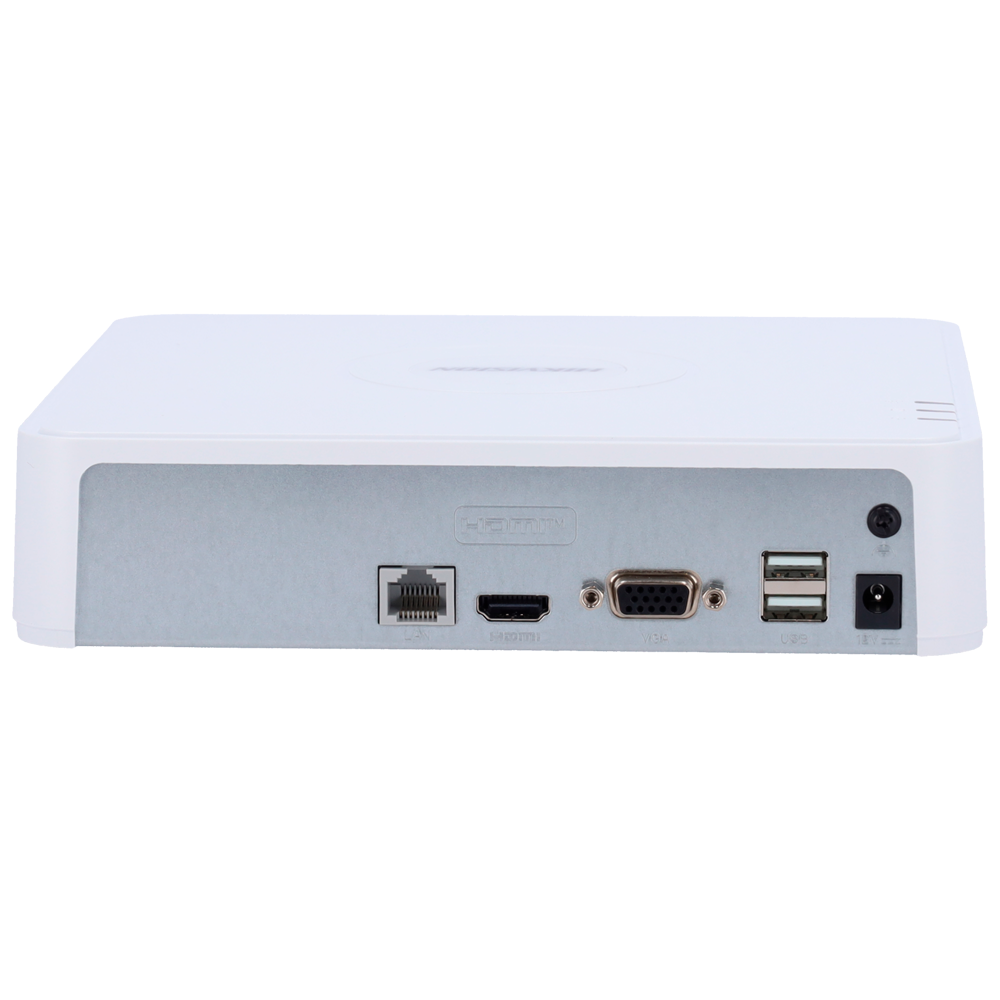

Video outputs: HDMI and VGA simultaneous
-
Storage: 1 × SATA (up to 6 TB)
-
USB: 2 × USB 2.0
-
Network: 1 × RJ‑45 10/100 Mbps
-
Power: 12 V DC, 1.5 A
-
Power consumption: ≤ 10 W (without HDD)
-
Operating temperature: ‑10 °C to +55 °C
-
Dimensions: Approx. 200 × 200 × 48 mm
-
Weight: ≤ 1 kg (without HDD)
Installation notes
- Install in a ventilated location to support HDD longevity and system stability.
- Plan external camera power where required — this non‑PoE model does not supply power to cameras.
- Update firmware on first setup and secure access with strong passwords.
- Configure recording modes (continuous, scheduled, motion) to match storage capacity and retention requirements.
- Label camera feeds and port assignments during commissioning for easier maintenance.
What’s in the box (typical)
- DS‑7104NI‑Q1 unit
- Power adapter and power cable
- Quick start guide
